| Telescope Clamp D40/D30 | CADPDFRFQ |
Preview

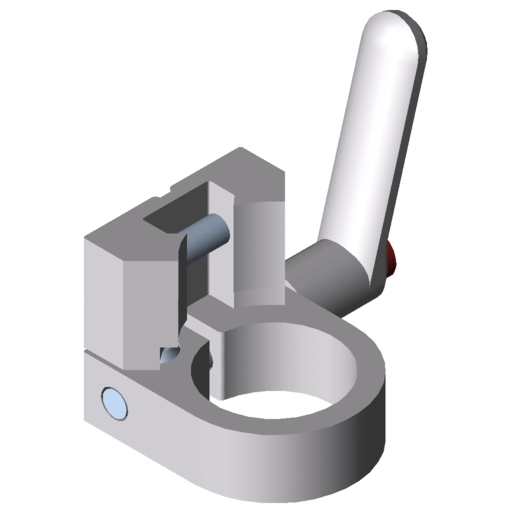

Telescope Clamp D40/D30

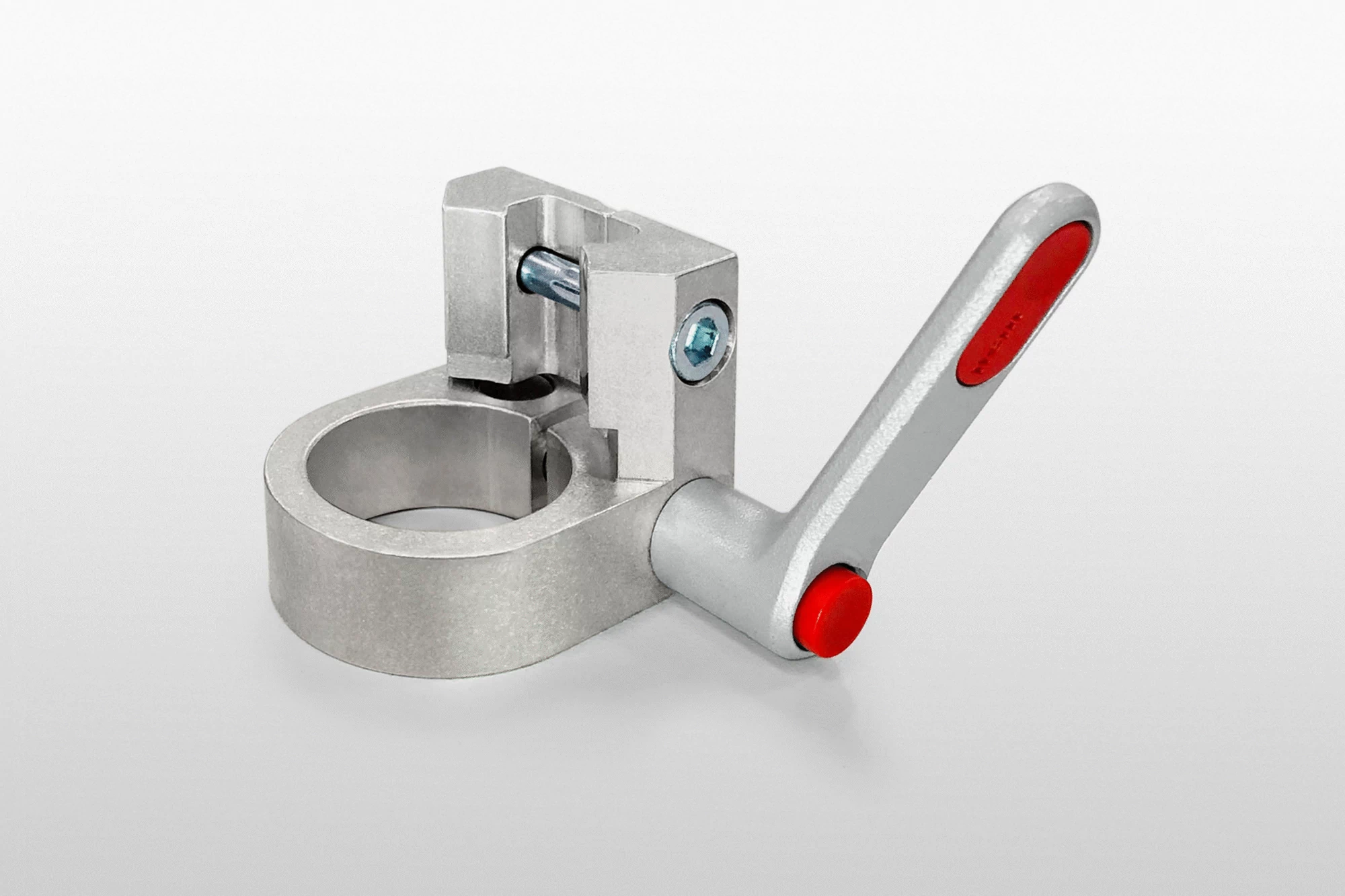

Preassembled Telescope clamp ring D40/D30, die-cast aluminium Telescope clamping device D40/D30, die-cast aluminium Clamp Lever Pi 50 M6x40 Threaded cross dowel M6, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M6x32, St, bright zinc-plated
Scope of Delivery
Preassembled Telescope clamp ring D40/D30, die-cast aluminium Telescope clamping device D40/D30, die-cast aluminium Clamp Lever Pi 50 M6x40 Threaded cross dowel M6, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M6x32, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 120 g |
| Delivery unit | 1 pce. |
The specialist solution for finding the perfect spacing: Telescope Clamp D40/D30 fixes the internal Profile Tube D30 of a telescope at the desired position. This enables users to adjust the height or gradient of accessories. Telescopic solutions can also be used to build fold-away elements. Thanks to the clamp lever, the length of the telescope can be altered at any time, with no need for tools.
To create a pull-out telescopic solution, push Plain Bearing Sleeve D30/D20 ESD into the end face of a Profile Tube D30. The low-friction plastic ring ensures the Profile Tube D30 moves inside a Profile Tube D40/30. Plain Bearing Sleeve D40/D30 ESD (0.0.676.03) on the opposite end provides reliable guidance for the telescopic profile. Telescope Clamp D40/30 fixes the retractable Tube in place. Please factor in the torque that a long lever element can generate in a construction. F = 500 N L PA = Length of external profile L PA min = H+100 mm L PI = Length of internal profile L PI min = H+120 mm H = Travel H max = 2/3xL PA
