| Telescope Securing Set 8 80×40 | CADPDFRFQ |
Preview

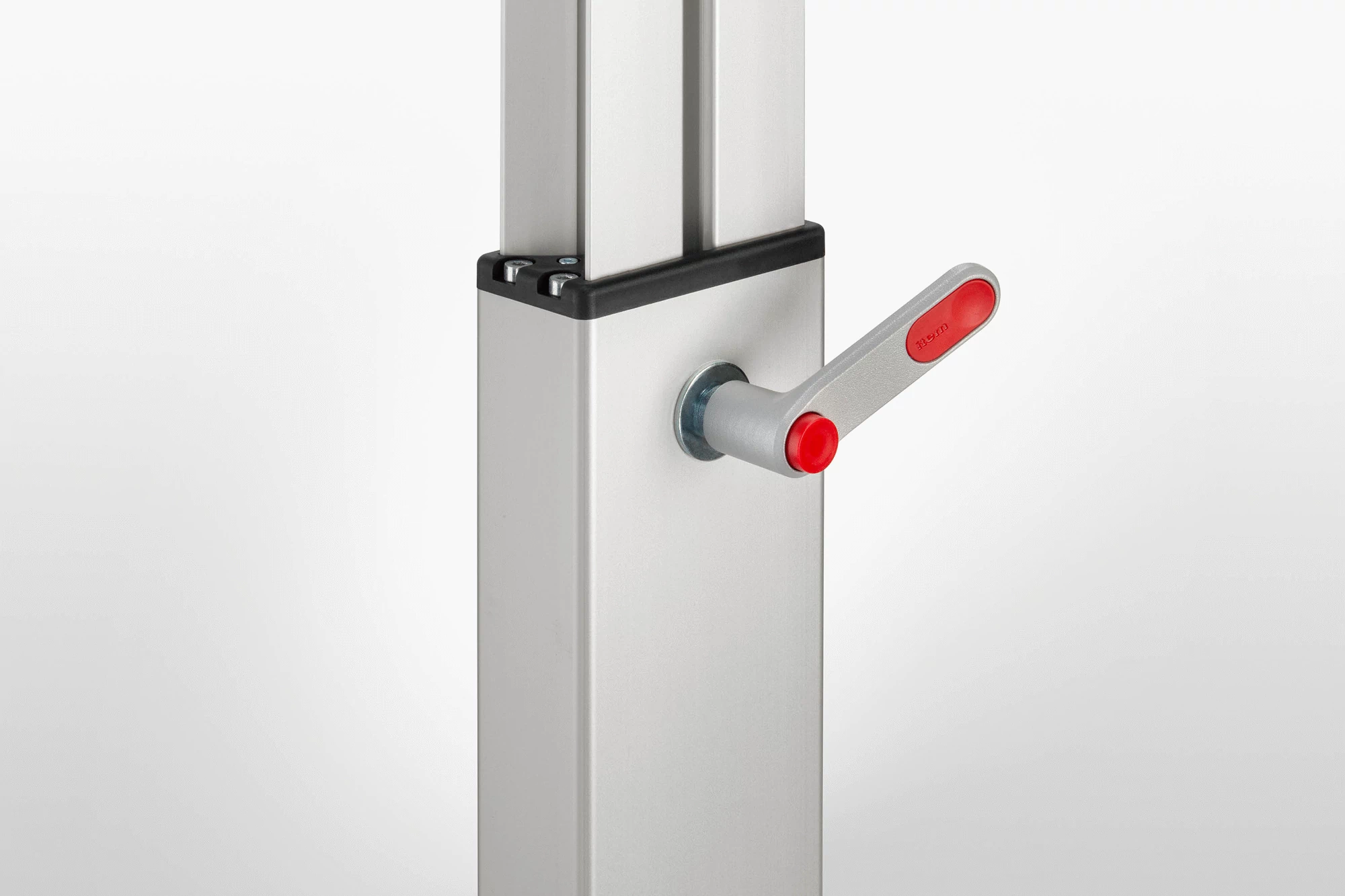

Telescope Securing Set 8 80×40
1 Special T-Slot Nut 8 St M8, bright zinc-plated 1 Stepped threaded bolt M8 1 Washer ISO 7093-1 – 8 – 200 HV, bright zinc-plated 1 Clamp lever M8, black
Scope of Delivery
1 Special T-Slot Nut 8 St M8, bright zinc-plated 1 Stepped threaded bolt M8 1 Washer ISO 7093-1 - 8 - 200 HV, bright zinc-plated 1 Clamp lever M8, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 110 g |
| Delivery unit | 1 set |
On request, your local item partner can provide the Telescope Profiles machined ready for use with the Telescope Securing Set or Telescope Locking Plunger.
Telescope Inner Profile 8 80x40 (length B) must be 20 mm shorter than Telescope Profile 8 80x40 (length A) in order that it can be inserted completely in the assembled telescope, and stroke H thereby maximised. L min. = A + 20 mm L max. = L min. + H B ≥ H x 1.2 ^ B ≥ H + 60 mm B ≤ A - 20 mm Max. load in telescope direction: 750 N
