Selector Switch M22 1NO 1NC M12, Male Connector, A-coded

Selector Switch M22 1NO 1NC M12, Male Connector, A-coded is an industrial operating element for lights, devices and machinery. Its toggle grip with a 90° switching angle latches securely into two positions. This turn switch can be used as both a normally closed (NC) and a normally open (NO) contact. The toggle switch, cable and M12 male connector are preassembled and ready to connect. This ensures assembly can be completed quickly and easily, with no wiring outlay.

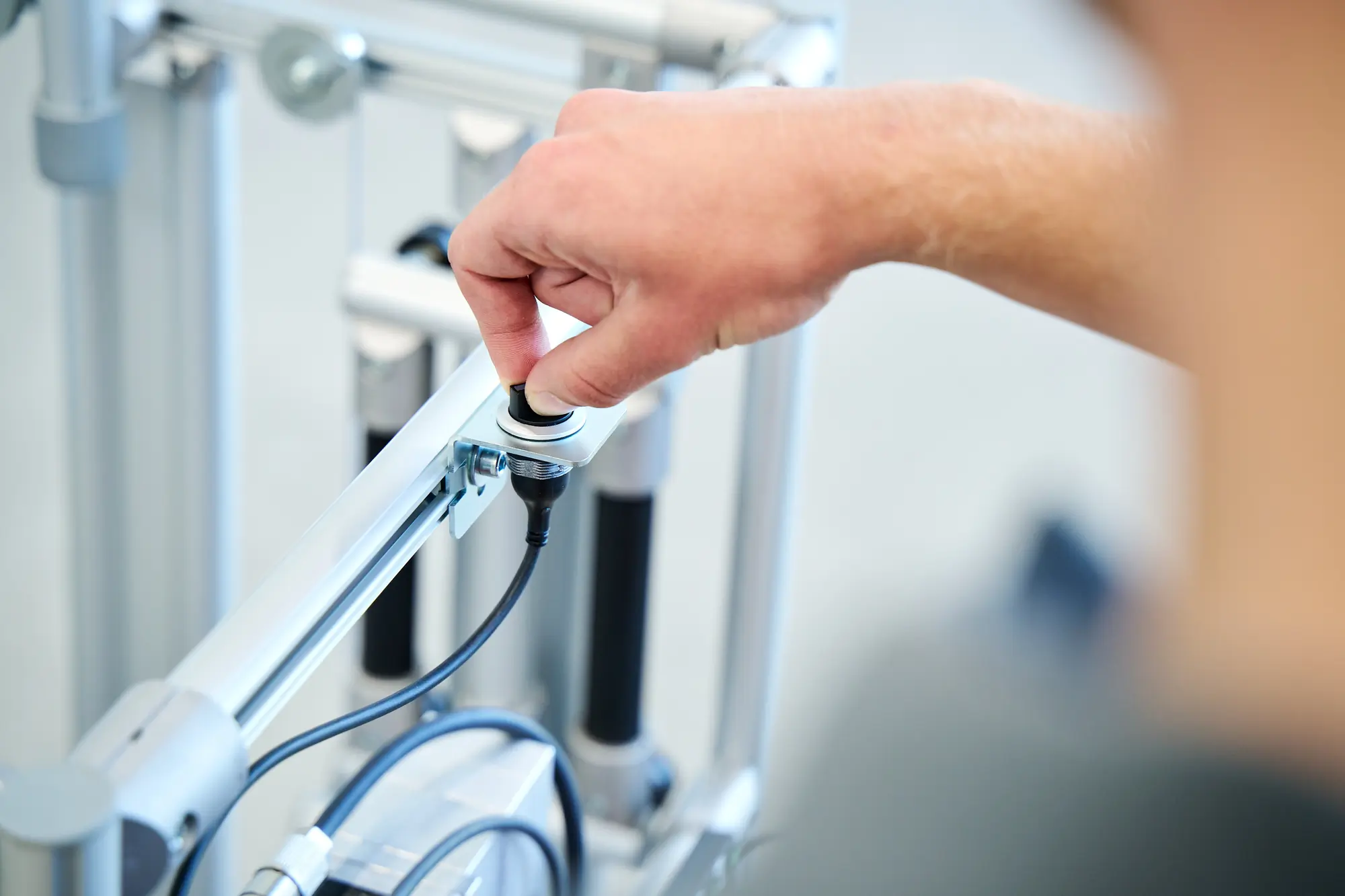

Mounting Set 8, Button/Switch M22 (0.0.732.80) can be used to fit Pushbutton M22 and Selector Switch M22 to profiles with a Line 8 groove. The operating element is fastened to the bracket plate on the reverse, using the threaded ring supplied. Installation in panel elements and the Cover Profiles on cable conduits is also possible. Label Holder 22mm (0.0.714.20) is used as a cover with label. Alternatively, by using an appropriate item Adapter, you can combine M22 operating elements with Mounting Boxes M45. These Mounting Boxes can be clipped directly into the integrated cable conduit on a Profile XMS or on item wall trunking.

The A-coded, 4-pin M12 male connector can be used to determine the switching behaviour. Depending on the pin switched, the operating element is either normally open or normally closed: NO (normally open): The contact is open when the circuit is not activated. The circuit is closed when the switch is actuated. NC (normally closed): The contact is closed when the circuit is not activated. The circuit is opened when the switch is actuated.
