| Roller Conveyor St, Fastening Bracket D30 with Stop H43 | CADPDFRFQ |
Preview

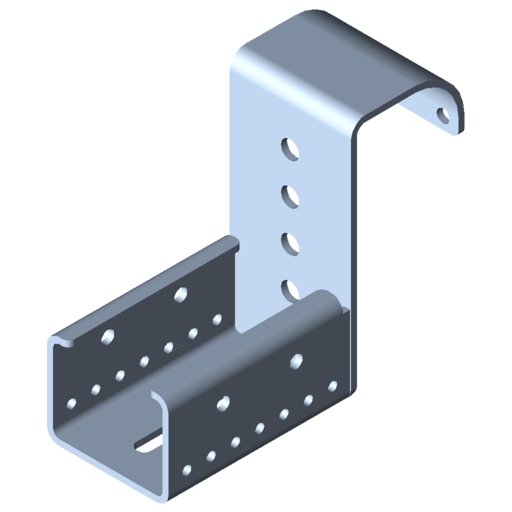

Roller Conveyor St, Fastening Bracket D30 with Stop H43
Fastening Bracket, St, bright zinc-plated 6 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated
Scope of Delivery
Fastening Bracket, St, bright zinc-plated 6 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 173 g |
| Delivery unit | 1 set |

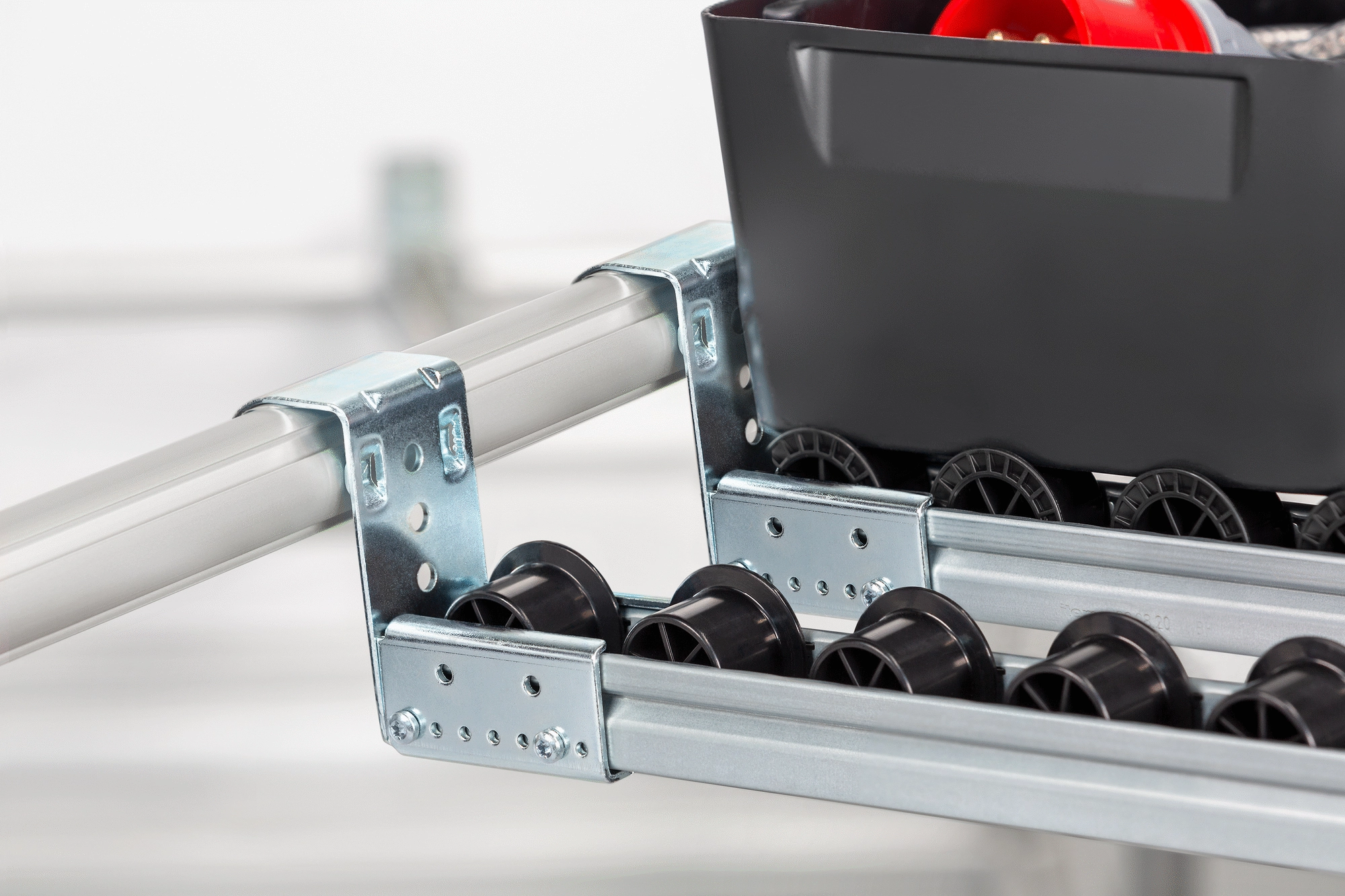

A fastening bracket and stop in one that is easy to fit to the Roller Conveyor St D30 and Tube D30. Roller Conveyor St Fastening Brackets D30 with Stop H43 or H27 bring goods and workpiece carriers to a halt at the end of the conveyor line. If required, the Roller Conveyor Fastening Bracket can also be screwed into place.
Roller Conveyor St Fastening Bracket D30 can be fixed in place in a matter of seconds with the self-tapping Button-Head Screw – simply use a cordless driver to drive the screw into the (Profile) Tube D30.
Installation dimensions Dimensions for Roller Conveyors St and Al when using Roller Conveyor D30 Fastening Brackets.
