| Power Supply 48V 4.6A with connecting cable | CADPDFRFQ |
Forhåndsvisning

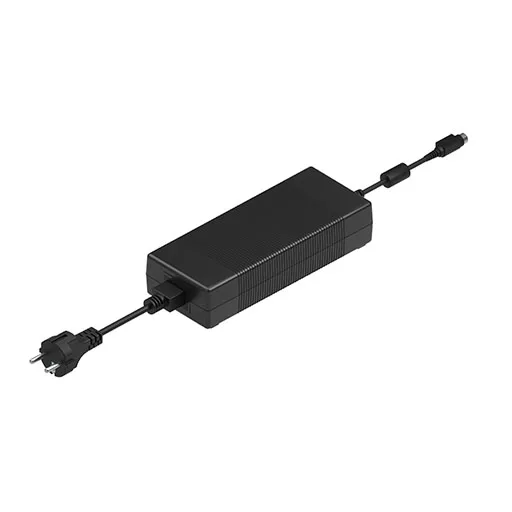

Power Supply 48V 4.6A with connecting cable
1 Power Supply 48V 4.6A 1 power cord, 5 m
Scope of Delivery
1 Power Supply 48V 4.6A 1 power cord, 5 m
Properties
| Output voltage | 48 V DC |
|---|---|
| Output current | 4,6 A |
| Input voltage | 85…264 V AC |
| Input current | 4A/115 V AC + 2A/230 V AC |
| ESD-safe | Nei |
| Nominal frequency | fn = 50/60 Hz |
| Vekt | m = 1.6 kg |
| Leveringsenhet | 1 sett |
| cleanroom suitability | Nei |
| Presentation | 2026-03-24T00:00:00 |
Power Supply 48V 4.6A with connecting cable is used as a power supply unit for 48 V devices such as Integrated Motor ST NEMA24 -310-48-T1 (0.0.703.45) and DC-DC Converter 48V/24V (0.0.732.56). The power supply unit is resistant to feedback voltage and therefore protected against induction caused by manual movement of the motor. The connecting cable can be replaced, meaning that the power supply unit can be used with a very wide range of connector types.
