| Foot Mounting Bracket 8 D80, white aluminium, similar to RAL 9006 | CADPDFRFQ |
Preview
Foot Mounting Bracket 8 D80, white aluminium, similar to RAL 9006
Properties
| line 8 | line 8 |
|---|---|
| Diameter | d = 80 mm |
| ESD-safe | No |
| Weight | m = 363 g |
| Delivery unit | 1 pce. |
| Material | Die-cast Al |
| Colour | white aluminium, similar to RAL 9006 |

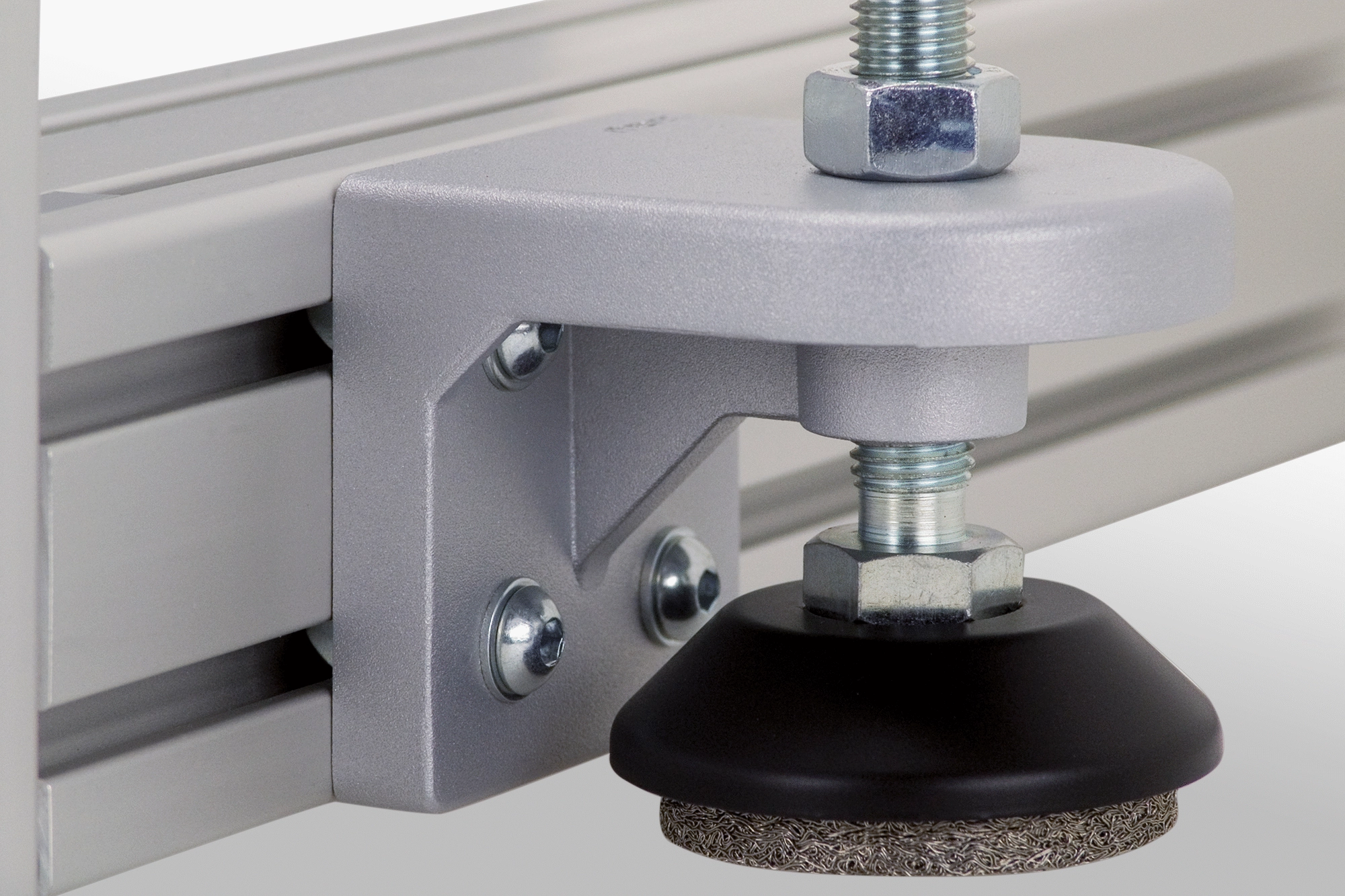

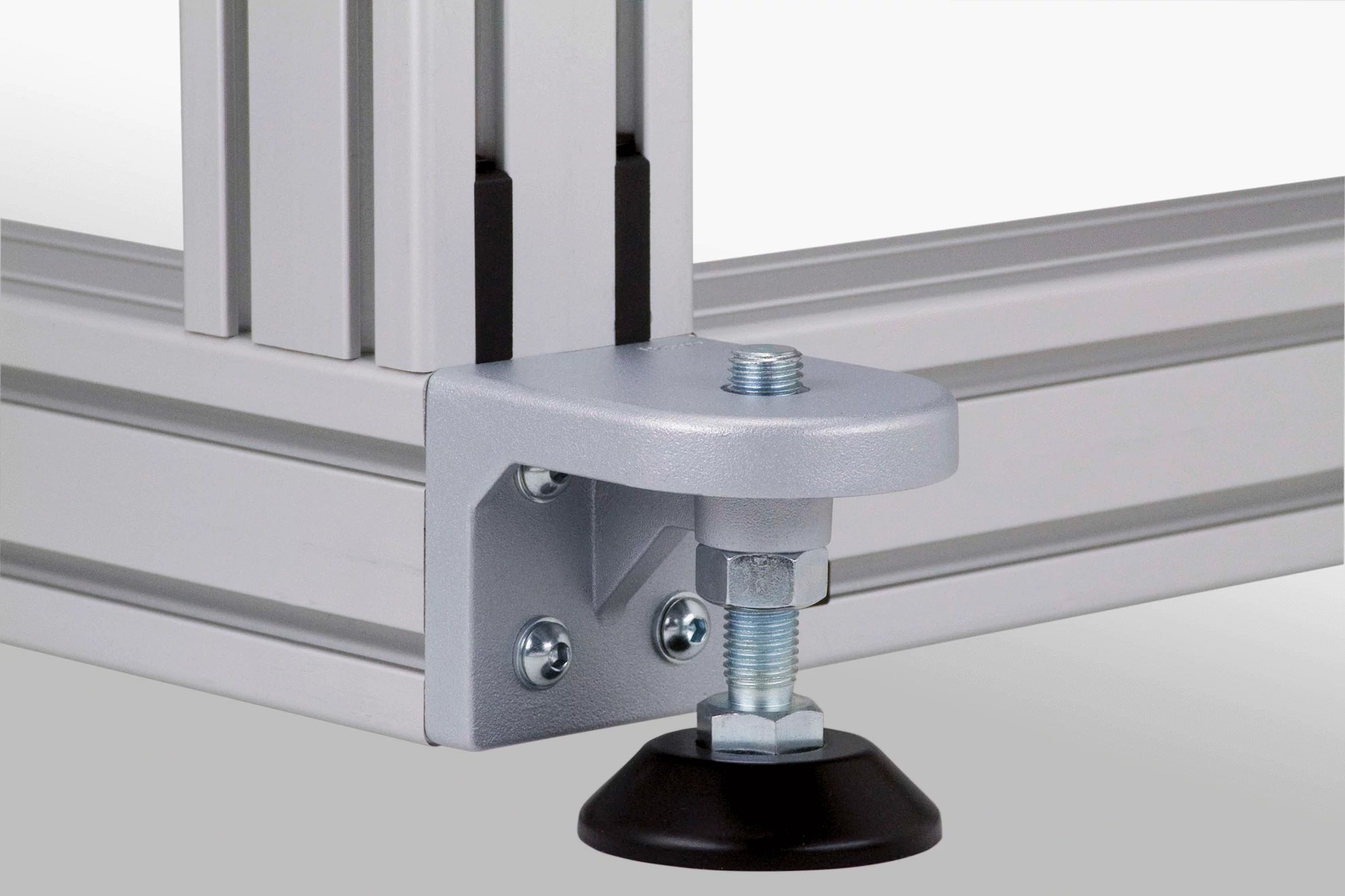

Foot Mounting Bracket 8 D80 allows height adjustable feet with M16 threaded spindle (primarily Knuckle Foot D80, M16) to be mounted on the side of a frame construction. Machines or systems can be installed with minimum distance to the floor but can still be adjusted in height.
The maximum permissible load on the Foot Mounting Bracket is F = 4,000 N. The load-carrying capacity of the adjustable foot must not be exceeded.
