| Light Fitting 36W, 230V | CADPDFRFQ |
Preview
Light Fitting 36W, 230V
ON/OFF Switch 36 W compact fluorescent lamp Lamp-Control Unit Power cable with earthed plug (German domestic standard), l = 3 m Protective panel, PMMA 2 pivot holders, St 2 T-Slot Nuts V 8 St M8, bright zinc-plated 2 Button-Head Screws M8x14, St, bright zinc-plated 2 washers DIN 125 8.4, St, bright zinc-plated Colour rendering index: R a ≈ 82 Colour temperature: T ≈ 4000°K (neutral white) Notes on Use and Installation
Scope of Delivery
1 ON/OFF Switch 1 36 W compact fluorescent lamp 1 Lamp-Control Unit 1 Power cable with earthed plug (German domestic standard), l = 3 m 1 Protective panel, PMMA 2 pivot holders, St 2 T-Slot Nuts V 8 St M8, bright zinc-plated 2 Button-Head Screws M8x14, St, bright zinc-plated 2 washers DIN 125 8.4, St, bright zinc-plated Notes on Use and Installation
Properties
| Line | Work Bench System |
|---|---|
| ESD-safe | No |
| Weight | m = 1.9 kg |
| Delivery unit | 1 set |

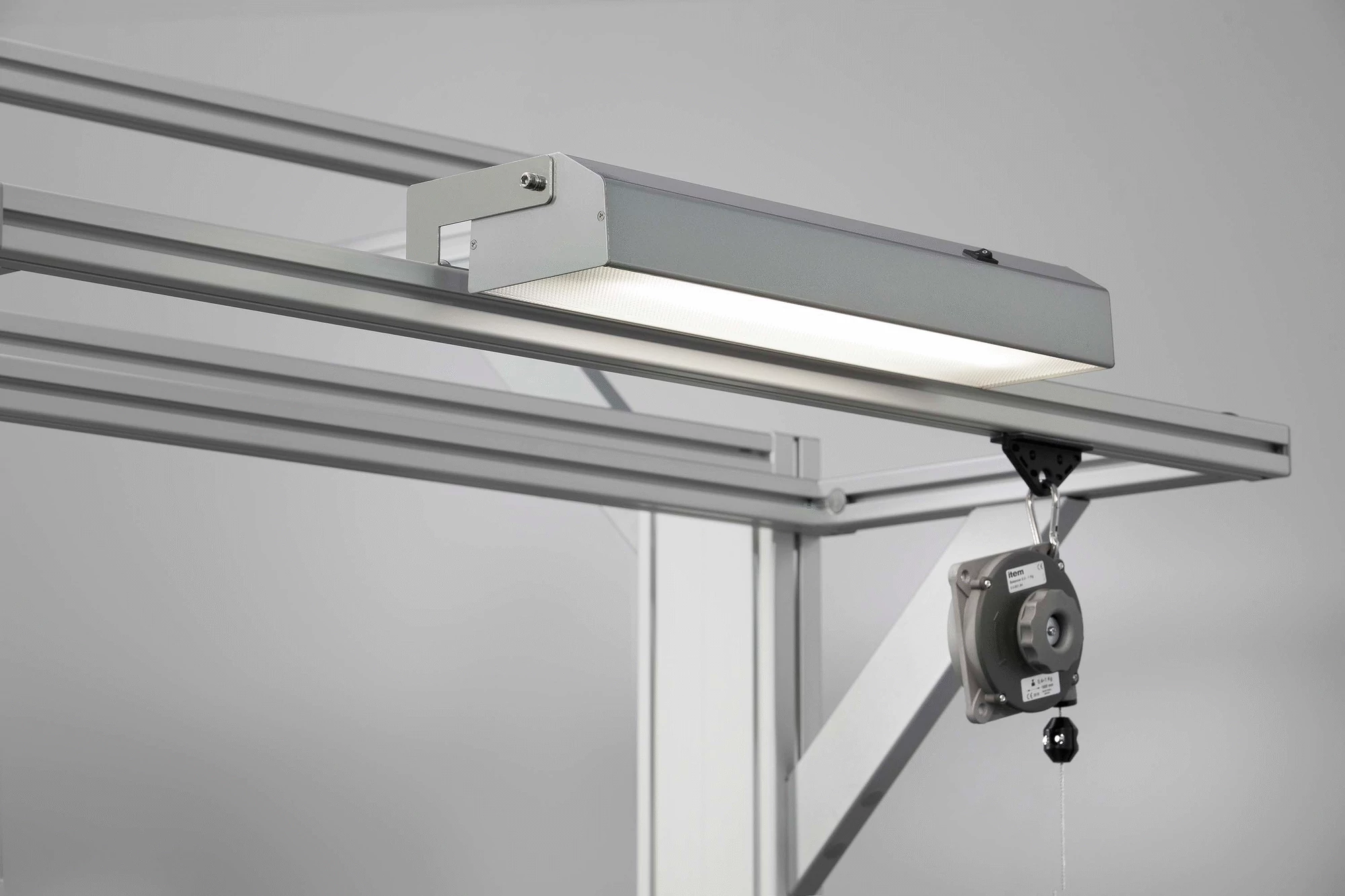

Light Fitting 36W from item provides flicker-free working light. A compact fluorescent lamp and micro-lens diffuser provide even and bright lighting for working surfaces. Thanks to the practical pivot mounting, the light fitting is easy to fit to the work bench and adjust. When installed on the Overhang, it provides glare-free overhead lighting.

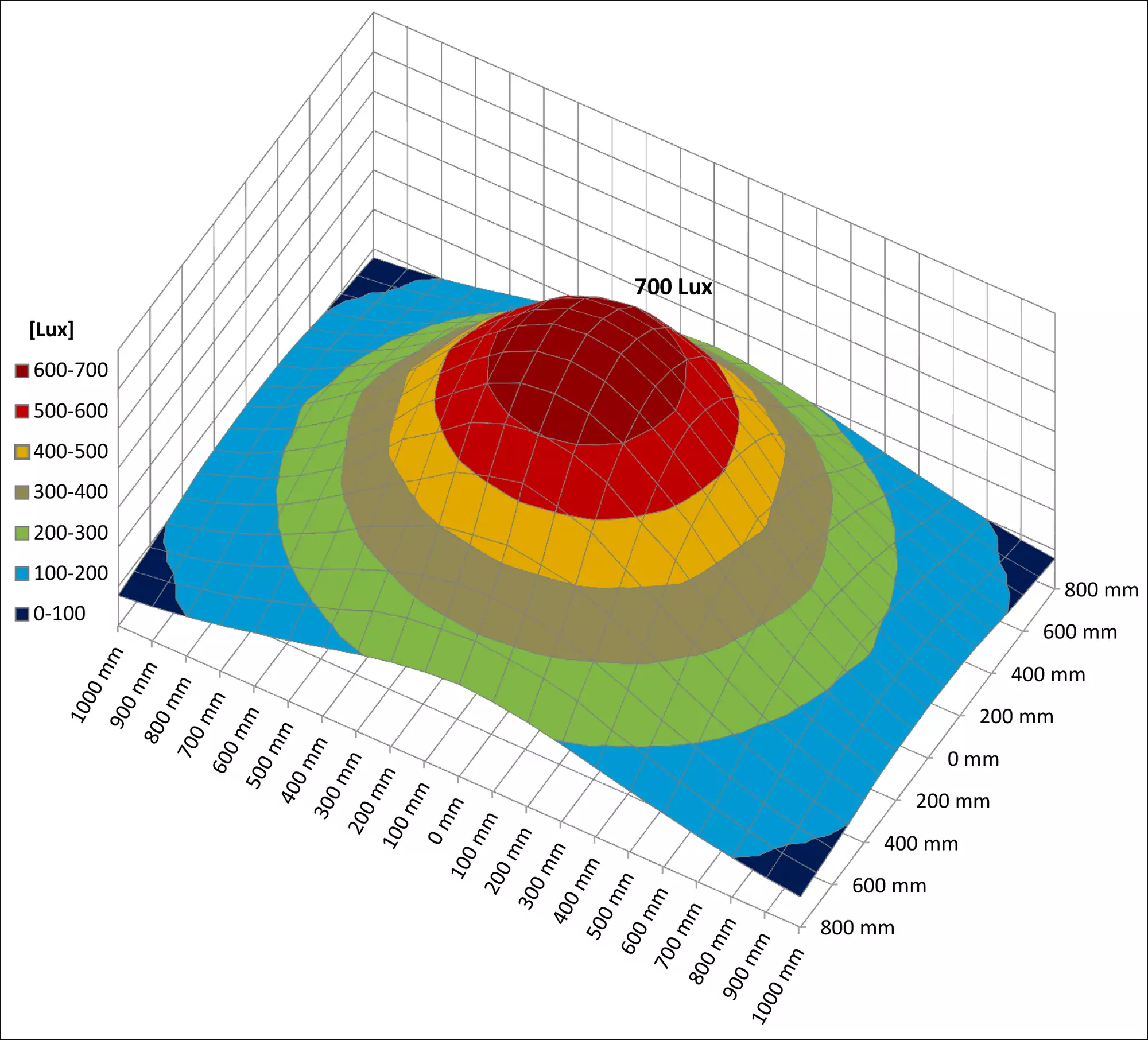

Distribution of illuminance as measured from 900 mm
Bei der Verlegung von stromführenden Leitungen entlang von Aluminiumprofilen können dort geringe, ungefährliche Spannungen durch induktive Kopplung entstehen. Zur Vermeidung wird empfohlen, die Konstruktion mit der Schutzerde zu verbinden. Gut geeignet ist der Einsatz der Steckdosenleiste 5-fach, mit System-Steckanschluss (0.0.627.44) bzw. der Medienleiste Multi (0.0.631.56) in Kombination mit der Anschlussleitung Buchse-Schukostecker mit Erdung (0.0.677.54).
