| LED Machine Light Fitting 5W 25x20x120 | CADPDFRFQ |
Preview

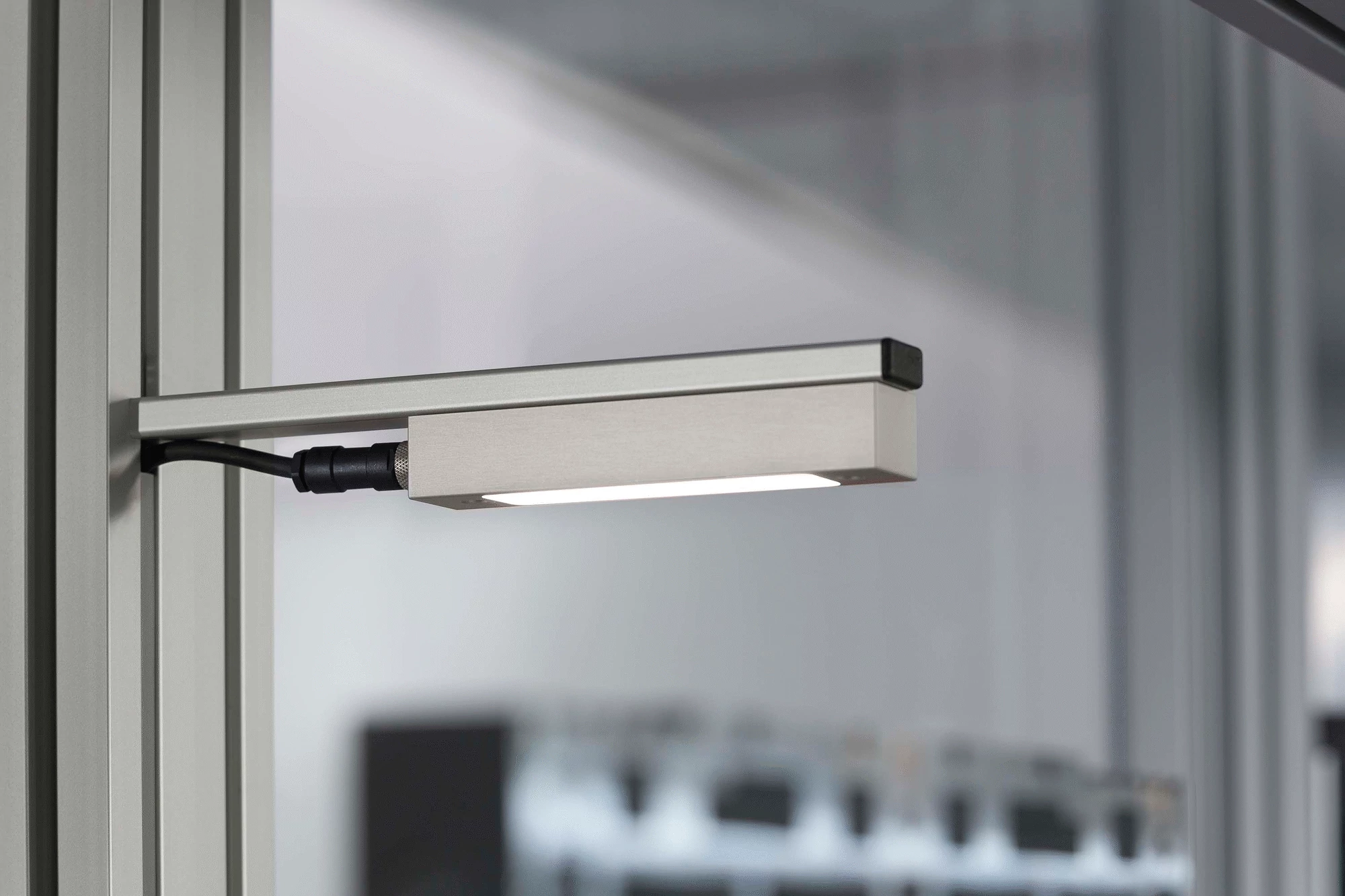

LED Machine Light Fitting 5W 25x20x120
Aluminium casing IP67 Fastening elements Rated voltage: 24V DC Protection class: III Output: 5 W LED Light Fitting M8 plug-in connector Colour rendering index R a ≈ 85 Colour temperature: T ≈ 4000°K (neutral white)
Scope of Delivery
Aluminium casing IP67 Fastening elements Rated voltage: 24V DC Protection class: III Output: 5 W LED Light Fitting M8 plug-in connector Colour rendering index R a ≈ 85 Colour temperature: T ≈ 4000°K (neutral white)
Properties
| Line | Work Bench System |
|---|---|
| ESD-safe | No |
| Weight | m = 189 g |
| Delivery unit | 1 set |
With Machine Light Fittings available in five sizes, there’s a lighting solution for every machine. Everything from the most awkward corner to large cabins can be lit up. Thanks to IP 67 protection, the light fittings can also be used in harsh environments. They are fixed in place using a Line 8 groove. When designing work benches, the Machine Light Fittings offer a space-saving solution for boosting lighting levels on the work surface. Using the latest generation of LEDs, the fittings deliver clear energy savings and can also be combined with accessories including cables and electronic transformers. An ingenious system of power supply and control elements, cables and splitters makes it easy to configure customised lighting scenarios, even including dimmer functions. Technical data for the various Machine Light Fitting designs is available on the relevant product pages online at www.item24.com .

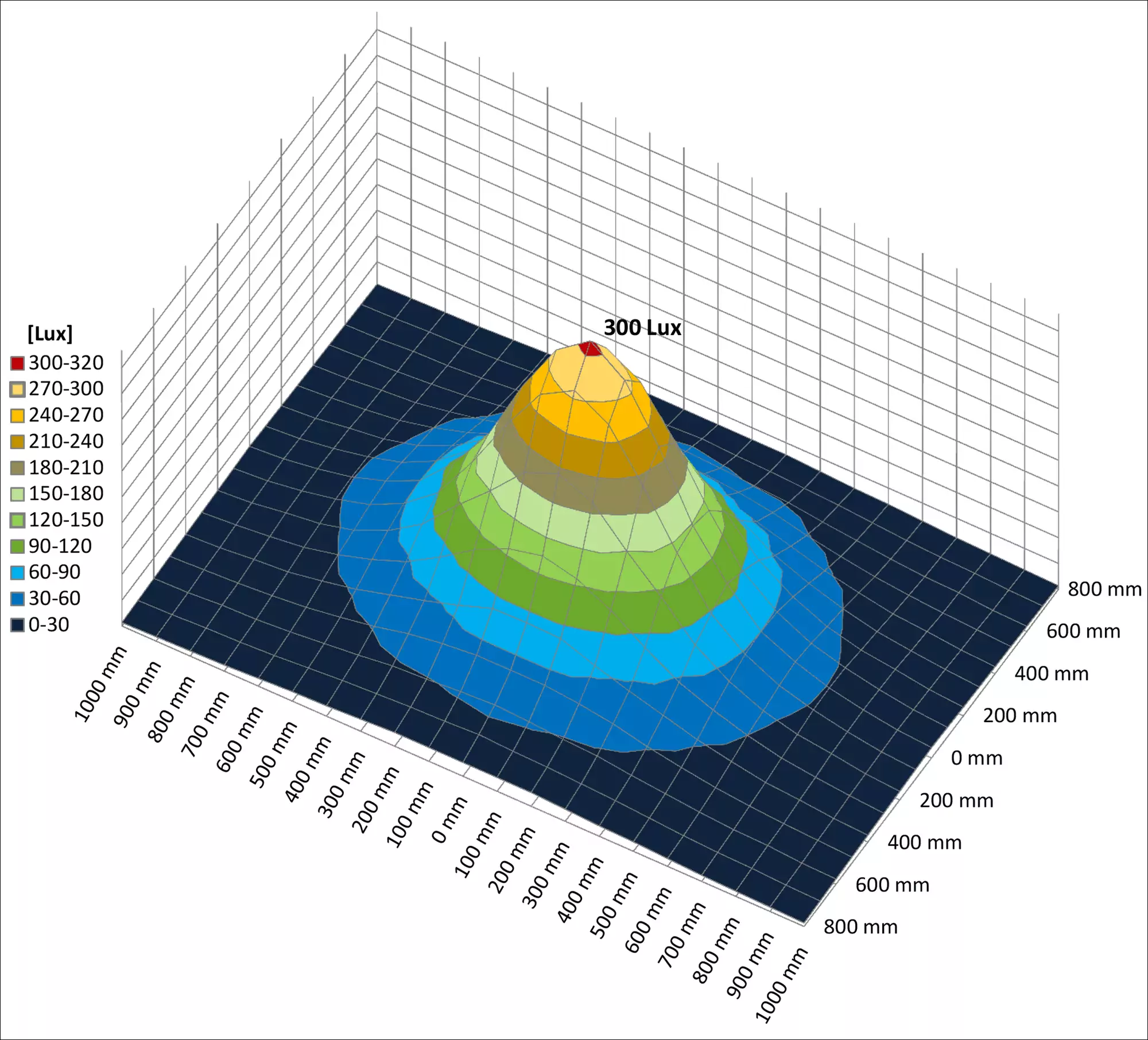

Distribution of illuminance [as measured from 500 mm]
Bei der Verlegung von stromführenden Leitungen entlang von Aluminiumprofilen können dort geringe, ungefährliche Spannungen durch induktive Kopplung entstehen. Zur Vermeidung wird empfohlen, die Konstruktion mit der Schutzerde zu verbinden. Gut geeignet ist der Einsatz der Steckdosenleiste 5-fach, mit System-Steckanschluss (0.0.627.44) bzw. der Medienleiste Multi (0.0.631.56) in Kombination mit der Anschlussleitung Buchse-Schukostecker mit Erdung (0.0.677.54).
