| LED Machine Light Fitting 18W 40x40x590 | CADPDFRFQ |
Preview
LED Machine Light Fitting 18W 40x40x590
Aluminium casing IP67, rotatable Fastening elements Rated voltage: 24V DC Protection class: III M8 plug-in connector Colour rendering index R a ≈ 85 Colour temperature: T ≈ 4000°K (neutral white)
Scope of Delivery
Aluminium casing IP67, rotatable Fastening elements Rated voltage: 24V DC Protection class: III M8 plug-in connector Colour rendering index R a ≈ 85 Colour temperature: T ≈ 4000°K (neutral white)
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 0.8 kg |
| Delivery unit | 1 set |

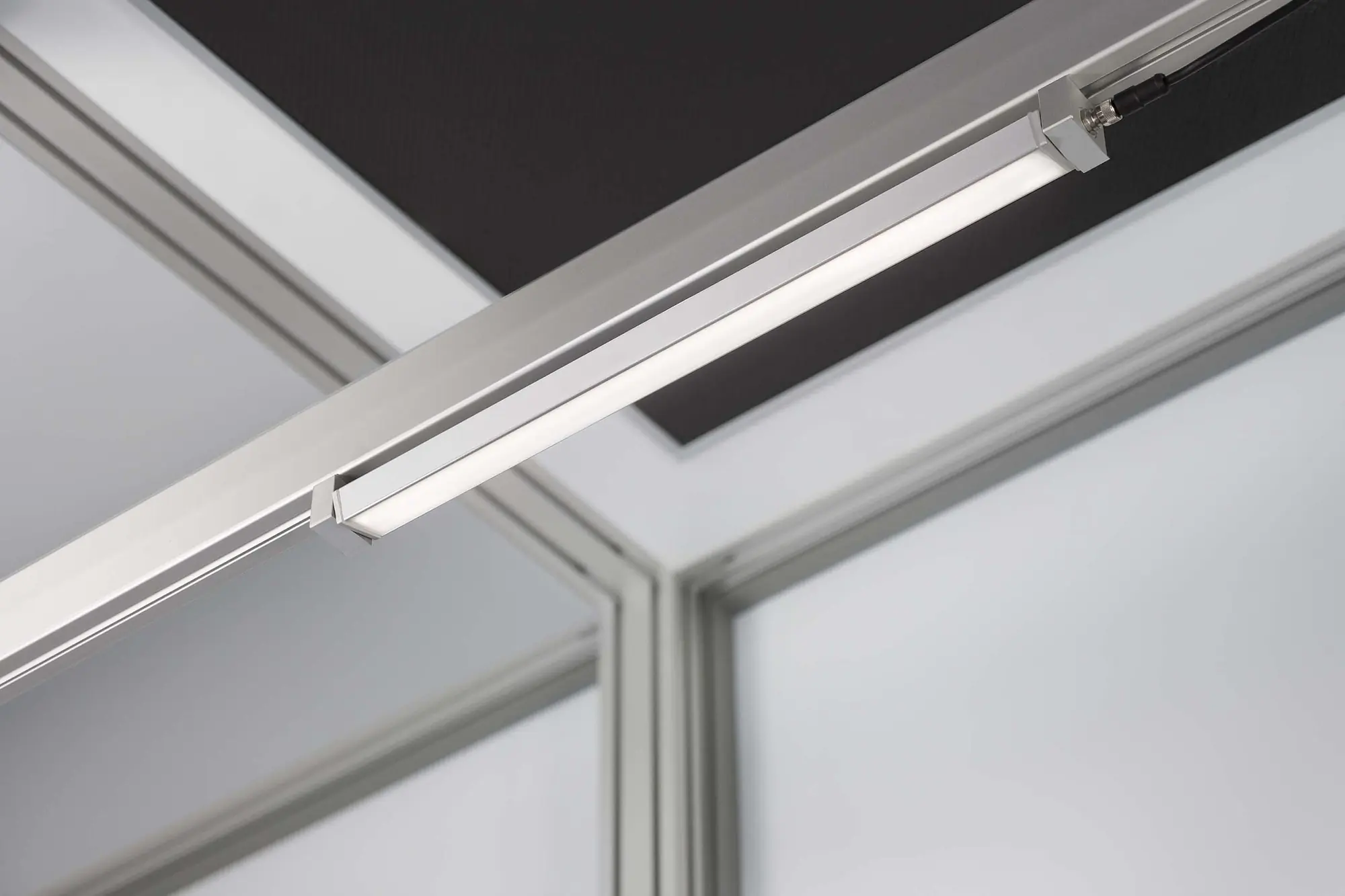

The Machine Light Fitting comes in six sizes. Everything from the most awkward corner to a large cabin can be lit up. Thanks to IP67 protection, the Light Fittings can also be used in harsh environments. They are fixed in place using a Line 8 groove, while an integrated hinge allows users to direct light where it is needed. When designing work benches, the Machine Light Fittings offer a space-saving solution for boosting lighting levels on the work surface. Using the latest generation of LEDs, the fittings deliver clear energy savings and can also be combined with accessories including cables and electronic transformers. An ingenious system of power supply and control elements, cables and Splitters makes it easy to configure customised lighting scenarios, even including dimmer functions.

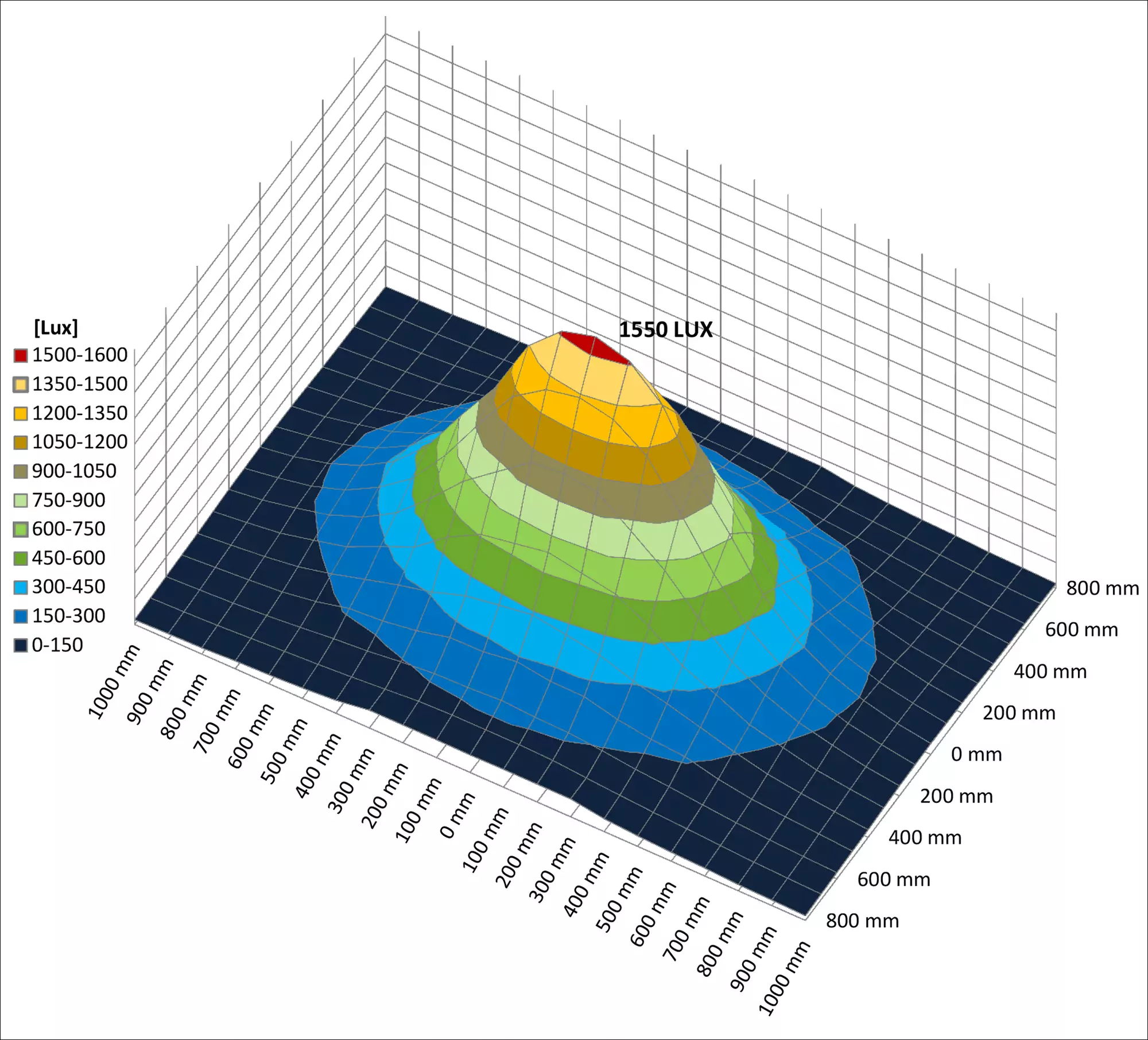

Distribution of illuminance [as measured from 500 mm]
Bei der Verlegung von stromführenden Leitungen entlang von Aluminiumprofilen können dort geringe, ungefährliche Spannungen durch induktive Kopplung entstehen. Zur Vermeidung wird empfohlen, die Konstruktion mit der Schutzerde zu verbinden. Gut geeignet ist der Einsatz der Steckdosenleiste 5-fach, mit System-Steckanschluss (0.0.627.44) bzw. der Medienleiste Multi (0.0.631.56) in Kombination mit der Anschlussleitung Buchse-Schukostecker mit Erdung (0.0.677.54).
Installing an LED Machine Light Fitting on a Profile 8 using the fastening elements supplied: a = T-Slot Nut V 8 St M5 (0.0.480.54) b = Fastening cylinder c = Grub screw M6 All LED Machine Light Fittings from the 6W version upwards feature an integrated hinge.
