| Set CAD-format | ||
|---|---|---|
| Holder Support D70-30°, black similar to RAL 9005 | CADPDFRFQ |
Preview

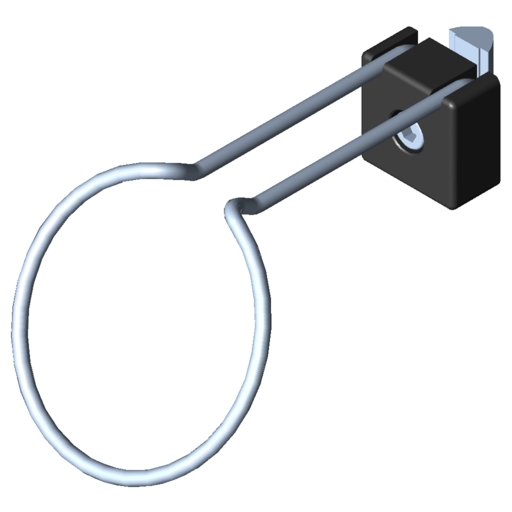

Holder Support D70-30°, black similar to RAL 9005
Wire, St, stainless Wire mount, PA-GF Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Washer DIN 433-6.4, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated
Scope of Delivery
Wire, St, stainless Wire mount, PA-GF Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Washer DIN 433-6.4, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated
Properties
| Line | Work Bench System |
|---|---|
| ESD-safe | No |
| Weight | m = 70 g |
| Delivery unit | 1 set |
| Colour | black similar to RAL 9005 |
The Holder Console keeps tools and small parts within easy reach. This stable system can hold three Holders D70 at the same time. The incremental angle adjustment offers 10 different settings to make sure the Holders are in sync with the current working position (sitting or standing) and the ergonomic needs of the user. Regardless of the setting, the Holders are always held securely. Made of stainless steel wire, Holder Support D70 is designed to accommodate a single Holder. Two variants are available – the classic vertical support and a support that positions a Holder at an ergonomic angle of 30°.
