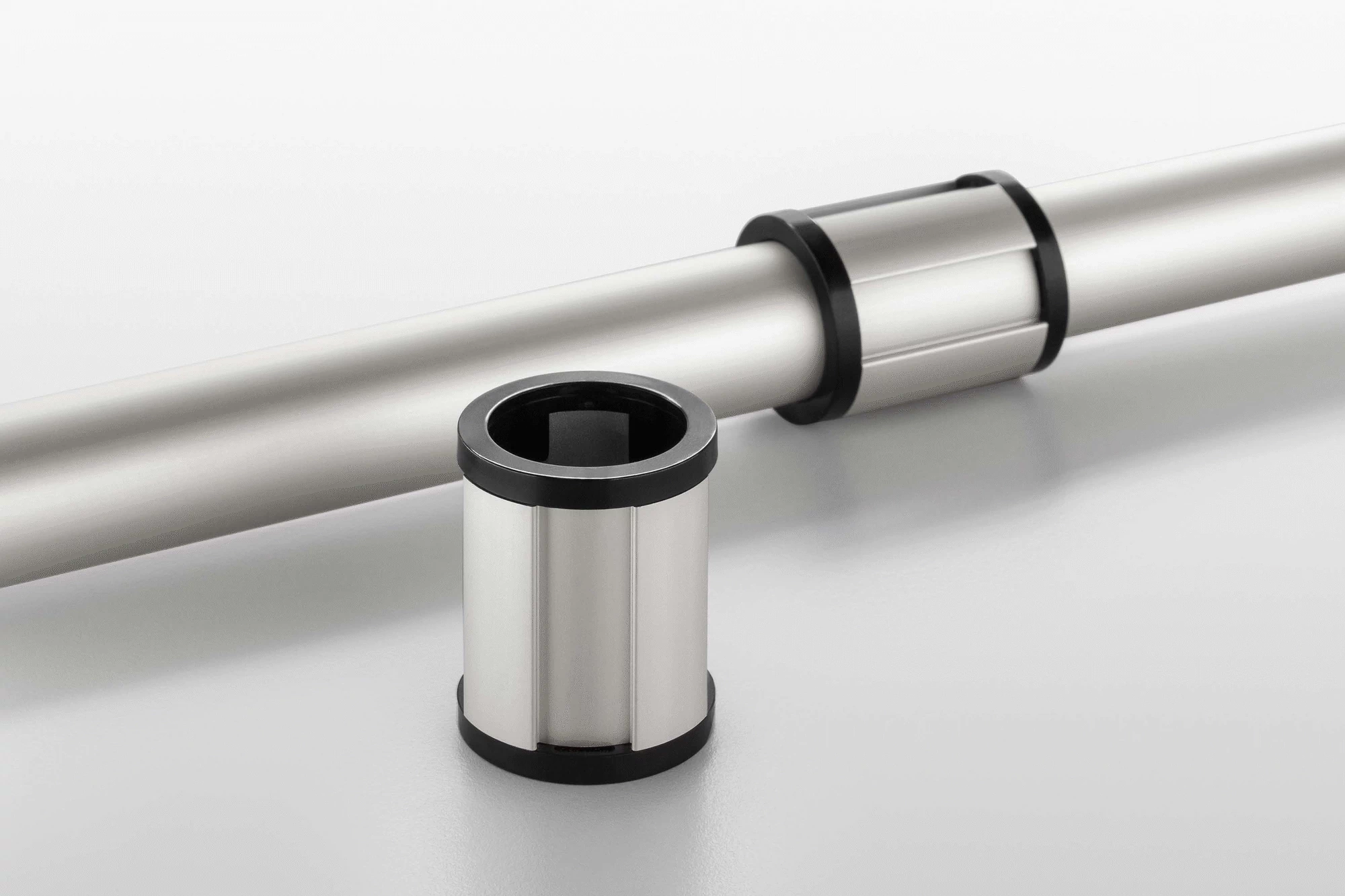

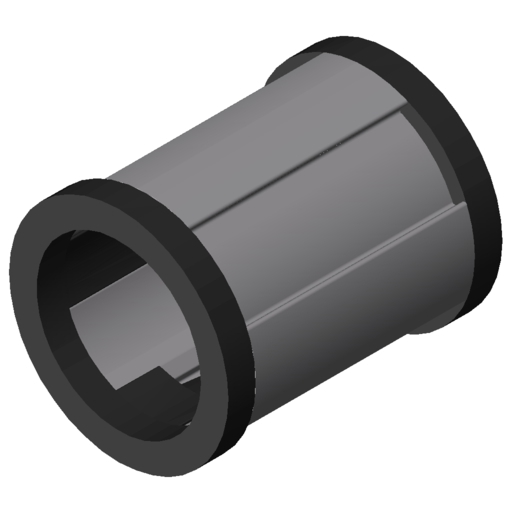

Plain Bearing D40/D30-50 ESD

Turning on a pin: item Plain Bearing Sleeves are the basis for low-cost automation (LCA). They enable the low-friction movement of a Profile Tube D40/D30 on a load-bearing D30 profile. Karakuri/LCA solutions created using the Lean Production Building Kit System require very little installation space because the moving components can simply be built into the frame. Plain Bearing Sleeves D40/D30 ESD are maintenance free and low friction. Two versions are available: Plain Bearing Sleeve D40/D30 ESD facilitates rotation and movement along the guide profile. If rotation is not desirable, Plain Bearing Sleeves D40/D30 ESD with anti-torsion feature can be used to guide the Profile Tube D40/D30 precisely along a Profile Tube D30 or Profile 6 D30. These Plain Bearing Sleeves use the grooves to prevent rotation, which makes it easier to guide counterweights, for example. Preassembled Plain Bearing D40/D30-50 ESD and Plain Bearing D40/D30-50 ESD with anti-torsion feature offer particularly convenient solutions. These sets consist of two Plain Bearing Sleeves and a Profile Tube D40/D30. The tabs on the Plain Bearing Sleeves engage with each other, locking together. The Plain Bearings are supplied ready for use and have an overall width of 50 mm. Locking Ring D30 fixes and limits the position of Plain Bearing D40/D30 along its axis. Locking Ring D30 with Clamp Lever is an especially convenient option and can be used as a rapidly adjustable stop. This offers a simple means of modifying the travel of plain bearings. Weights can also be fixed in place or released with a flick of the wrist.

When building custom plain bearings in lengths of over 50 mm, four holes need to be drilled in the Profile Tube D40/D30 (0.0.666.63) to accommodate the tabs on the Plain Bearing Sleeves.

F x = 50 N F z = 500 N M x = 5 Nm M y = 5 Nm M z = 0 Nm (0.0.665.36) M z = 5 Nm (0.0.676.25)
