| Door Stop 8 Zn | CADPDFRFQ |
Forhåndsvisning

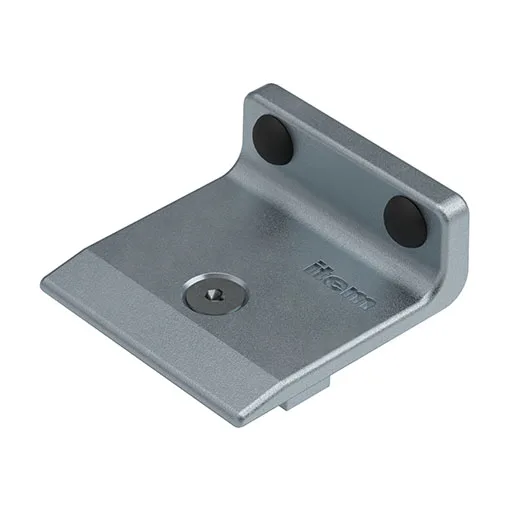

Door Stop 8 Zn
1 Door Stop 8 Zn, die-cast zinc, bright zinc-plated 2 buffers, EPDM, black 1 Countersunk Screw DIN 7991 M4x12, St, bright zinc-plated 1 T-Slot Nut 8 St M4, St, bright zinc-plated
Produktnr: 0.0.728.13
Kategorier: New Products MB Building Kit System, Door rabbets and seals
Stikkord: Statisk
Scope of Delivery
1 Door Stop 8 Zn, die-cast zinc, bright zinc-plated 2 buffers, EPDM, black 1 Countersunk Screw DIN 7991 M4x12, St, bright zinc-plated 1 T-Slot Nut 8 St M4, St, bright zinc-plated
Properties
| Linje | linje X |
|---|---|
| linje 8 | linje 8 |
| ESD-safe | Ja |
| Vekt | m = 67 g |
| Leveringsenhet | 1 sett |
Door Stop 8 Zn limits a swing door’s range of motion within a frame. It forms a limit stop complete with lead-in wedge. Two elastomer inserts act as buffers, ensuring the door closes gently in its frame. This high-quality metal door stopper can be used in conjunction with Double Door Stop Set 8 (0.0.671.94) in double doors without a centre post.
The dimensions of Door Stop 8 must be taken into account when determining the size of the door and its clearance. This robust door-stopping solution made from die-cast zinc is fastened in the Line 8 groove of the door frame. The limit stop is located after the groove flank so a door can be fully closed.
Double doors without a centre post give machine cabins a large access area. Getting workpieces and tools in and out is easy, as there is nothing in the way.
