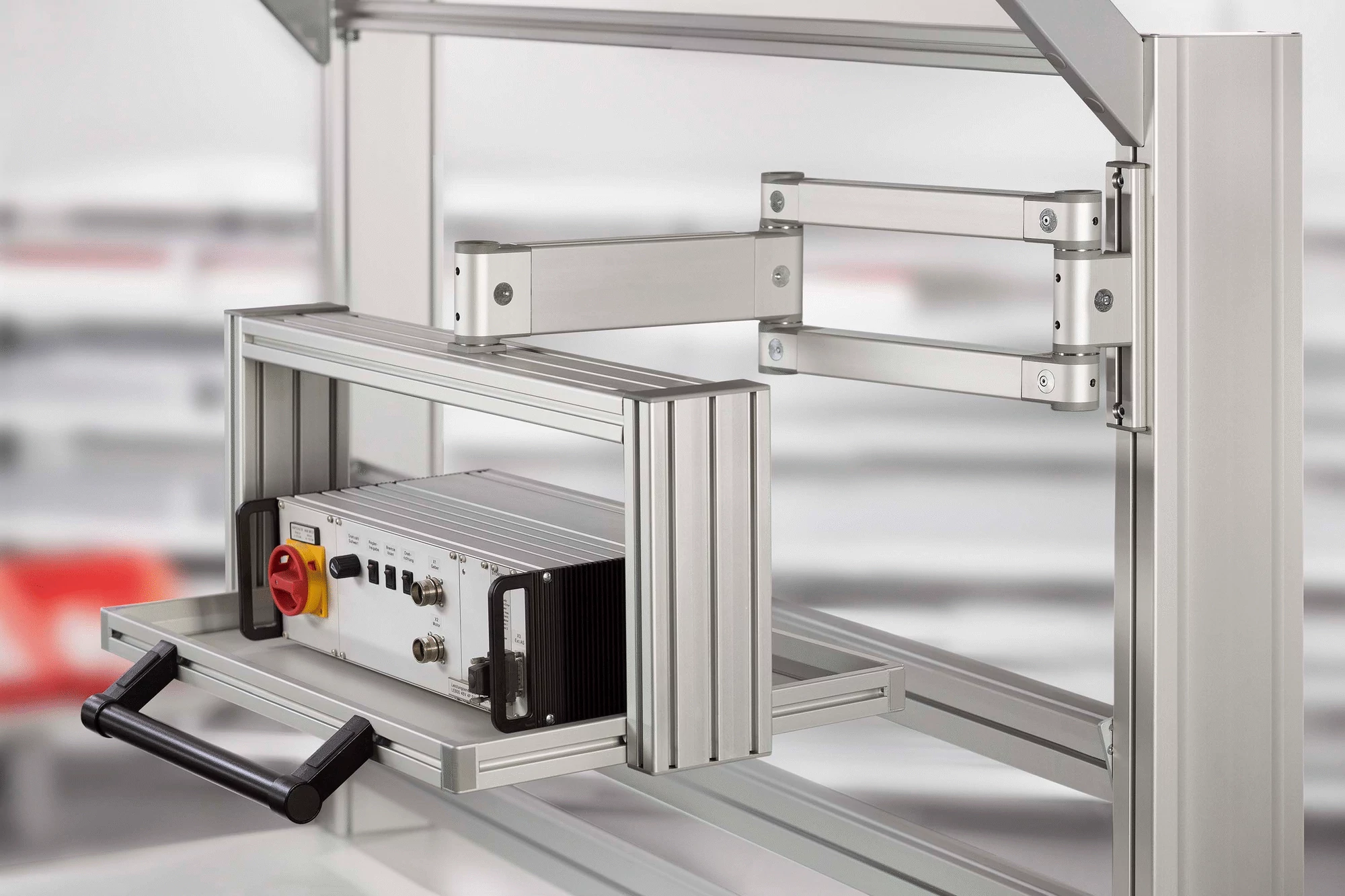

Double Pivot Arm 8 80 695 heavy-duty
Profile 8 80×40 4N 180 E 2 Profiles 8 40×40 3N light End Swivel Joint 80 2 Double Swivel Joints 80 Connecting cover, PA, grey 3 Connecting Plates, Al, natural 3 Button-Head Screws M8x22, St, bright zinc-plated 3 T-Slot Nuts 8 St M8, bright zinc-plated Notes on Use and Installation F max. = 250 N
Scope of Delivery
Profile 8 80x40 4N 180 E 2 Profiles 8 40x40 3N light End Swivel Joint 80 2 Double Swivel Joints 80 Connecting cover, PA, grey 3 Connecting Plates, Al, natural 3 Button-Head Screws M8x22, St, bright zinc-plated 3 T-Slot Nuts 8 St M8, bright zinc-plated Notes on Use and Installation F max. = 250 N
Properties
| Line | Work Bench System |
|---|---|
| ESD-safe | Yes |
| Weight | m = 4.2 kg |
| Force max | Fmax. = 250 N |
| Delivery unit | 1 set |
When a long reach and high carrying capacity are called for, Double Pivot Arm 8 80 695 heavy-duty is the solution. Its reinforced joints can accommodate vertical loads of up to 250 N. They can be folded into virtually any position and then locked in place. As a result, tools and materials can always be kept in easy reach. Note: The Friction Joints of the Pivot Arms are also available separately in the MB Building Kit System for use in customised solutions.
