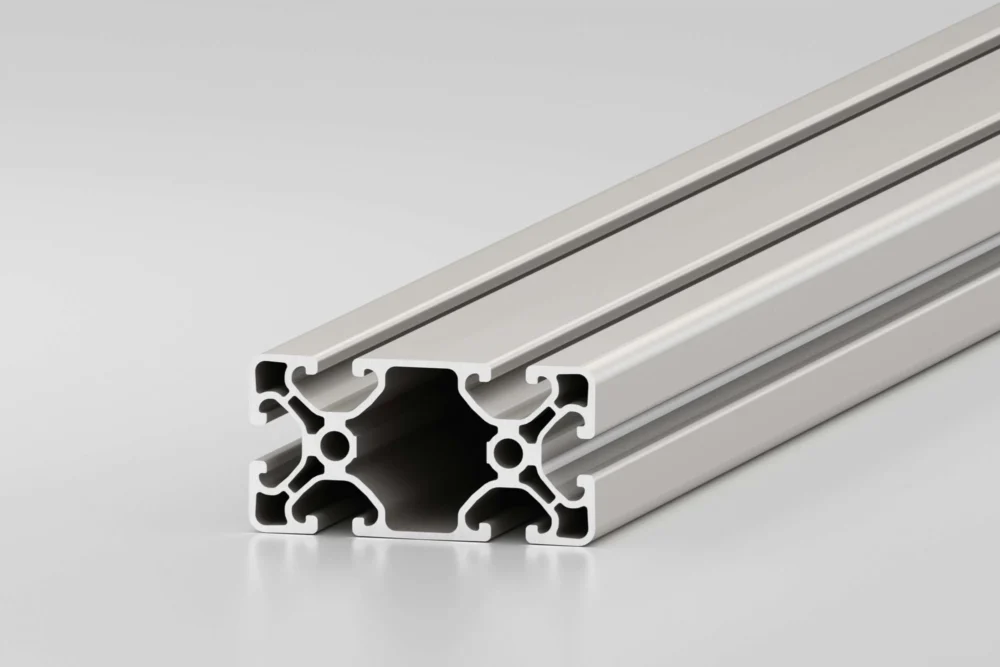

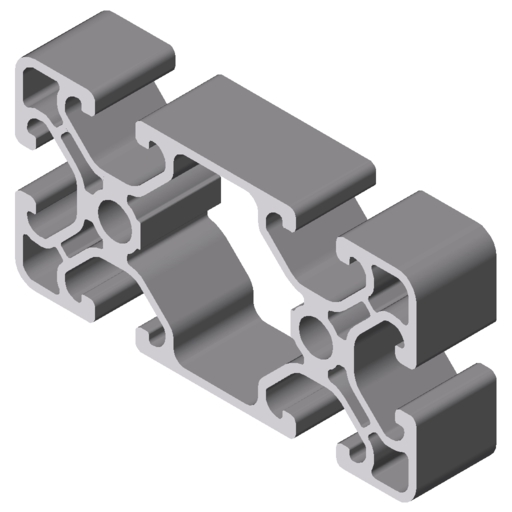

Profile 10 100×50 E, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 10 | line 10 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 13.4 cm2 |
| Moment of Inertia, torsional | It = 19.44 cm4 |
| Moment of Inertia, x-axis | Ix = 36.4 cm4 |
| Moment of Inertia, y-axis | Iy = 143.75 cm4 |
| Weight | m = 3.62 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 3500 N |
