LCE28H-0690-0290

EASY RAIL STØRRELSE 28 LCE, ENKELT V

Produktnr: LCE28H-0690-0290 Kategori: Stikkord:
Still inn CAD-format
LCE28H-0690-0290CADPDFRFQ

Forhåndsvisning


Betegnelse Hjerneslag Skinneveiledning Glidebryter for vogn Vekt Løfting av last Tillatte lastmomenter

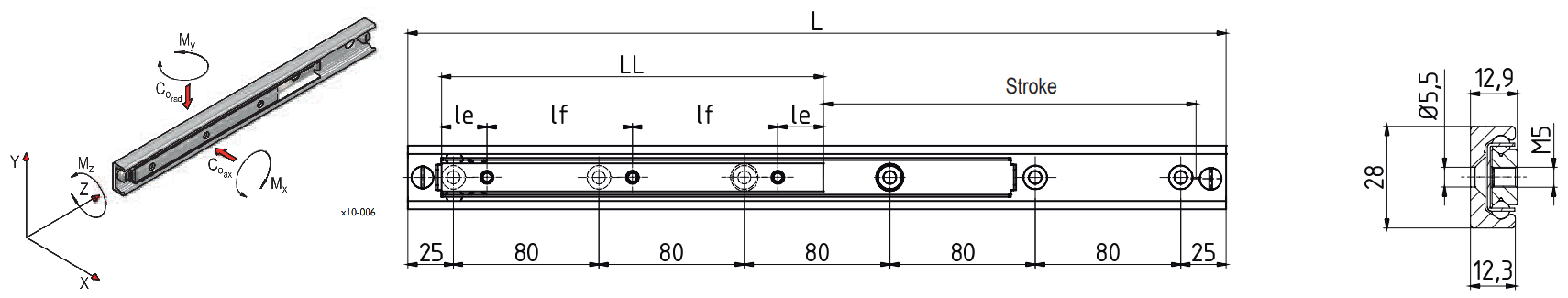

L antall LL le lf antall C o{rad} C o{ax} M{x} M{y} M{z}
mm  mm hull mm mm mm hull kg N Nm Nm Nm Nm
LCE28H-0130-0060 34 130 2 60 10 20 3 0.23 3.584 2.509 37 25 18
LCE28H-0210-0060 114 210 3 60 10 20 3 0.34 3.584 2.509 37 25 18
LCE28H-0290-0060 194 290 4 60 10 20 3 0.44 3.584 2.509 37 25 18
LCE28H-0370-0060 274 370 5 60 10 20 3 0.54 3.584 2.509 37 25 18
LCE28H-0450-0060 354 450 6 60 10 20 3 0.65 3.584 2.509 37 25 18
LCE28H-0210-0080 94 210 3 80 10 20 4 0.35 4.779 3.345 65 45 23
LCE28H-0290-0080 174 290 4 80 10 20 4 0.42 4.779 3.345 65 45 23
LCE28H-0370-0080 254 370 5 80 10 20 4 0.56 4.779 3.345 65 45 23
LCE28H-0450-0080 334 450 6 80 10 20 4 0.67 4.779 3.345 65 45 23
LCE28H-0530-0080 414 530 7 80 10 20 4 0.78 4.779 3.345 65 45 23
LCE28H-0610-0080 494 610 8 80 10 20 4 0.89 4.779 3.345 65 45 23
LCE28H-0290-0130 124 290 4 130 25 80 2 0.50 7.766 5.436 166 117 38
LCE28H-0370-0130 204 370 5 130 25 80 2 0.61 7.766 5.436 166 117 38
LCE28H-0450-0130 284 450 6 130 25 80 2 0.72 7.766 5.436 166 117 38
LCE28H-0530-0130 364 530 7 130 25 80 2 0.82 7.766 5.436 166 117 38
LCE28H-0610-0130 444 610 8 130 25 80 2 0.92 7.766 5.436 166 117 38
LCE28H-0690-0130 524 690 9 130 25 80 2 1.03 7.766 5.436 166 117 38
LCE28H-0770-0130 604 770 10 130 25 80 2 1.14 7.766 5.436 166 117 38
LCE28H-0850-0130 684 850 11 130 25 80 2 1.25 7.766 5.436 166 117 38
LCE28H-0930-0130 764 930 12 130 25 80 2 1.34 7.766 5.436 166 117 38
LCE28H-1010-0130 844 1010 13 130 25 80 2 1.45 7.766 5.436 166 117 38
LCE28H-0450-0210 204 450 6 210 25 80 3 0.79 12.545 8.782 430 300 62
LCE28H-0530-0210 284 530 7 210 25 80 3 0.90 12.545 8.782 430 300 62
LCE28H-0610-0210 364 610 8 210 25 80 3 1.00 12.545 8.782 430 300 62
LCE28H-0690-0210 444 690 9 210 25 80 3 1.10 12.545 8.782 430 300 62
LCE28H-0770-0210 524 770 10 210 25 80 3 1.21 12.545 8.782 430 300 62
LCE28H-0850-0210 604 850 11 210 25 80 3 1.32 12.545 8.782 430 300 62
LCE28H-0930-0210 684 930 12 210 25 80 3 1.44 12.545 8.782 430 300 62
LCE28H-1010-0210 764 1.010 13 210 25 80 3 1.54 12.545 8.782 430 300 62
LCE28H-1170-0210 924 1.170 15 210 25 80 3 1.74 12.545 8.782 430 300 62
LCE28H-1330-0210 1.084 1.330 17 210 25 80 3 1.96 12.545 8.782 430 300 62
LCE 28H-0610-0290 284 610 8 290 25 80 4 1.07 17.225 11.910 815 570 83
LCE 28H-0690-0290 364 690 9 290 25 80 4 1.18 17.225 11.910 815 570 83
LCE 28H-0770-0290 444 770 10 290 25 80 4 1.28 17.225 11.910 815 570 83
LCE 28H-0850-0290 524 850 11 290 25 80 4 1.39 17.225 11.910 815 570 83
LCE 28H-0930-0290 604 930 12 290 25 80 4 1.50 17.225 11.910 815 570 83
LCE 28H-1010-0290 684 1.010 13 290 25 80 4 1.61 17.225 11.910 815 570 83
LCE 28H-1170-0290 844 1.170 15 290 25 80 4 1.81 17.225 11.910 815 570 83
LCE 28H-1330-0290 1.004 1.330 17 290 25 80 4 2.03 17.225 11.910 815 570 83
LCE 28H-1490-0290 1.164 1.490 19 290 25 80 4 2.24 17.225 11.910 815 570 83
LCE 28H-0770-0370 364 770 10 370 25 80 5 1.37 21.884 15.248 1.327 930 106
LCE 28H-0850-0370 444 850 11 370 25 80 5 1.46 21.884 15.248 1.327 930 106
LCE 28H-0930-0370 524 930 12 370 25 80 5 1.57 21.884 15.248 1.327 930 106
LCE 28H-1010-0370 604 1.010 13 370 25 80 5 1.68 21.884 15.248 1.327 930 106
LCE 28H-1170-0370 764 1.170 15 370 25 80 5 1.88 21.884 15.248 1.327 930 106
LCE 28H-1330-0370 924 1.330 17 370 25 80 5 2.10 21.884 15.248 1.327 930 106
LCE 28H-1490-0370 1.084 1.490 19 370 25 80 5 2.32 21.884 15.248 1.327 930 106
LCE 28H-0930-0450 444 930 12 450 25 80 6 1.68 26.683 18.462 1.960 1.374 130
LCE 28H-1010-0450 524 1.010 13 450 25 80 6 1.75 26.683 18.462 1.960 1.374 130
LCE 28H-1170-0450 684 1.170 15 450 25 80 6 1.97 26.683 18.462 1.960 1.374 130
LCE 28H-1330-0450 844 1.330 17 450 25 80 6 2.17 26.683 18.462 1.960 1.374 130
LCE 28H-1490-0450 1.004 1.490 19 450 25 80 6 2.40 26.683 18.462 1.960 1.374 130
LCE 28H-1650-0450 1.164 1.650 21 450 25 80 6 2.60 26.683 18.462 1.960 1.374 130
