Stanchion Angle Fastener
Joint element D40, die-cast Al, white aluminium similar to RAL 9006 Joint element D30-R20, die-cast Al, white aluminium similar to RAL 9006 Joint element spacer, St, white aluminium similar to RAL 9006 T-Slot Nut V 8 St M6, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M6x10, St, bright zinc-plated Countersunk Screw DIN 7991-M6x18, St, bright zinc-plated Special Countersunk Screw DIN 7991-M8x20, St, bright zinc-plated
Scope of Delivery
Joint element D40, die-cast Al, white aluminium similar to RAL 9006 Joint element D30-R20, die-cast Al, white aluminium similar to RAL 9006 Joint element spacer, St, white aluminium similar to RAL 9006 T-Slot Nut V 8 St M6, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M6x10, St, bright zinc-plated Countersunk Screw DIN 7991-M6x18, St, bright zinc-plated Special Countersunk Screw DIN 7991-M8x20, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 110 g |
| Delivery unit | 1 set |

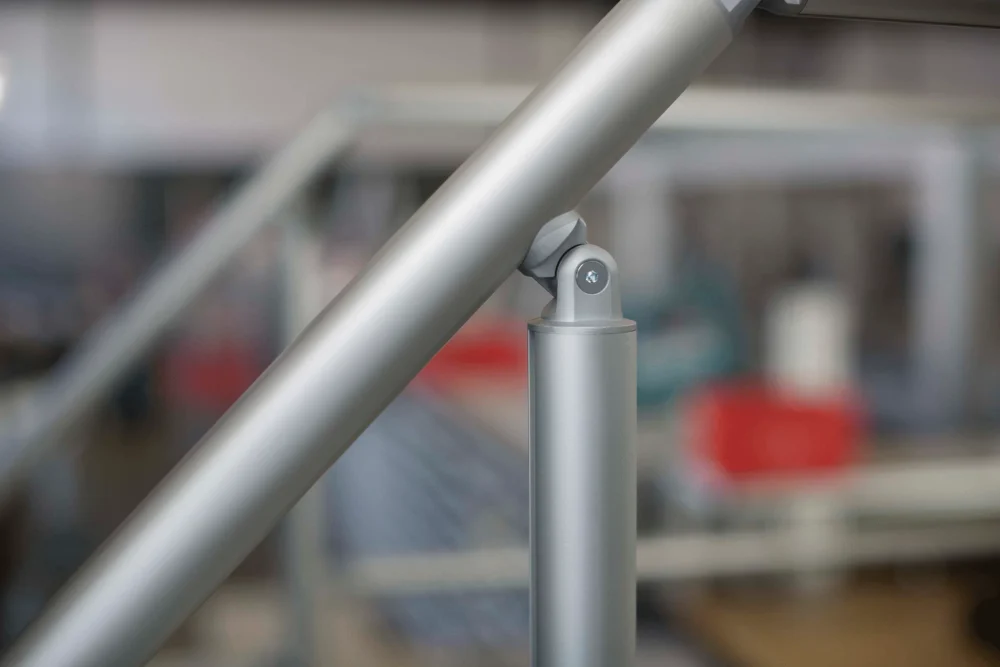

The Stanchion Angle Fastener is supplied with all the fastening elements needed to connect a hand-rail (Profile 8 D40 3NO; 0.0.493.46) to a guard-rail stanchion ( Profile 8 D40 2NO180; 0.0.493.43) at any angle.The fastener is screwed to the end face of the stanchion and anchored in the groove of the hand-rail. The Joint enables users to adapt the hand-rail to the pitch of the stairway. The Stanchion Fastener (without joint functionality) is recommended when fastening a hand-rail at a right angle (e.g. on a platform).
