Universal Holder

PA-GF, black 1 washer ISO 7093-1 – 5 – 200 HV, bright zinc-plated

Varenr: 0.0.418.24 Kategori: Tag:
Set CAD-format
Universal HolderCADPDFRFQ

Preview

Scope of Delivery

PA-GF, black 1 washer ISO 7093-1 - 5 - 200 HV, bright zinc-plated

Properties

ESD-safeNo
Weightm = 3 g
Delivery unit1 set
The Universal Holder can be assembled at any angle. Fastening is performed in the profile groove of the panel element using a Countersunk Screw DIN 7991-M5 and corresponding T-Slot Nut or in conjunction with a hexagon nut DIN 936-M5.

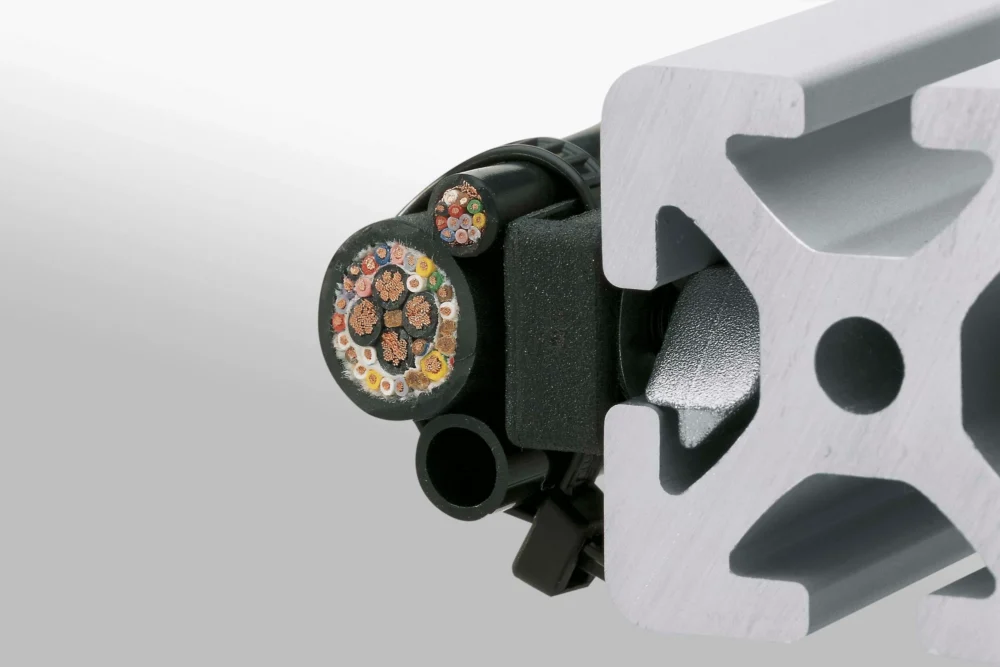

Cable ties for bundling leads and hoses can be fixed with the Universal Holder.
MB Building Kit System
