Jacking Castor D62 120×120

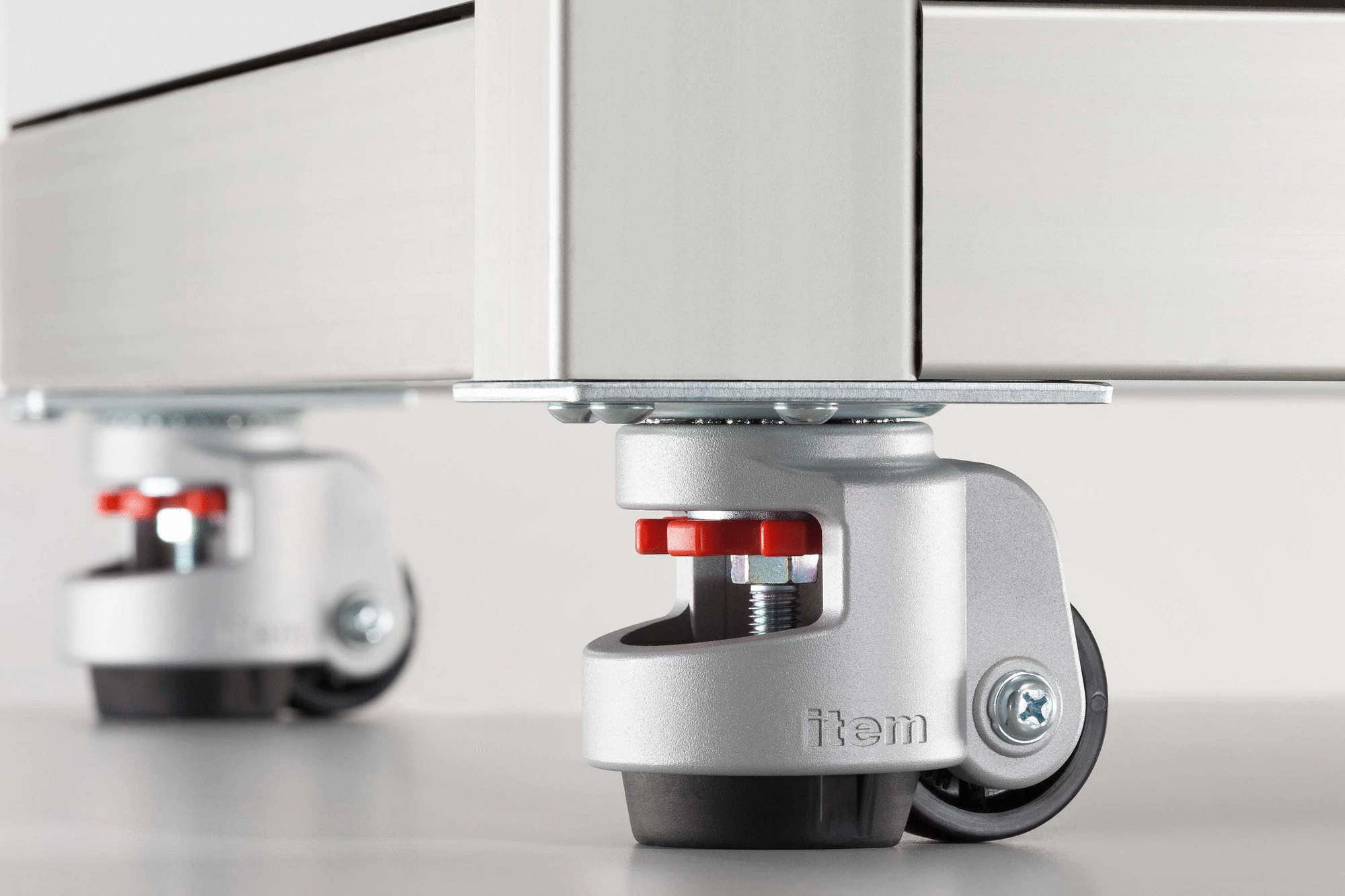

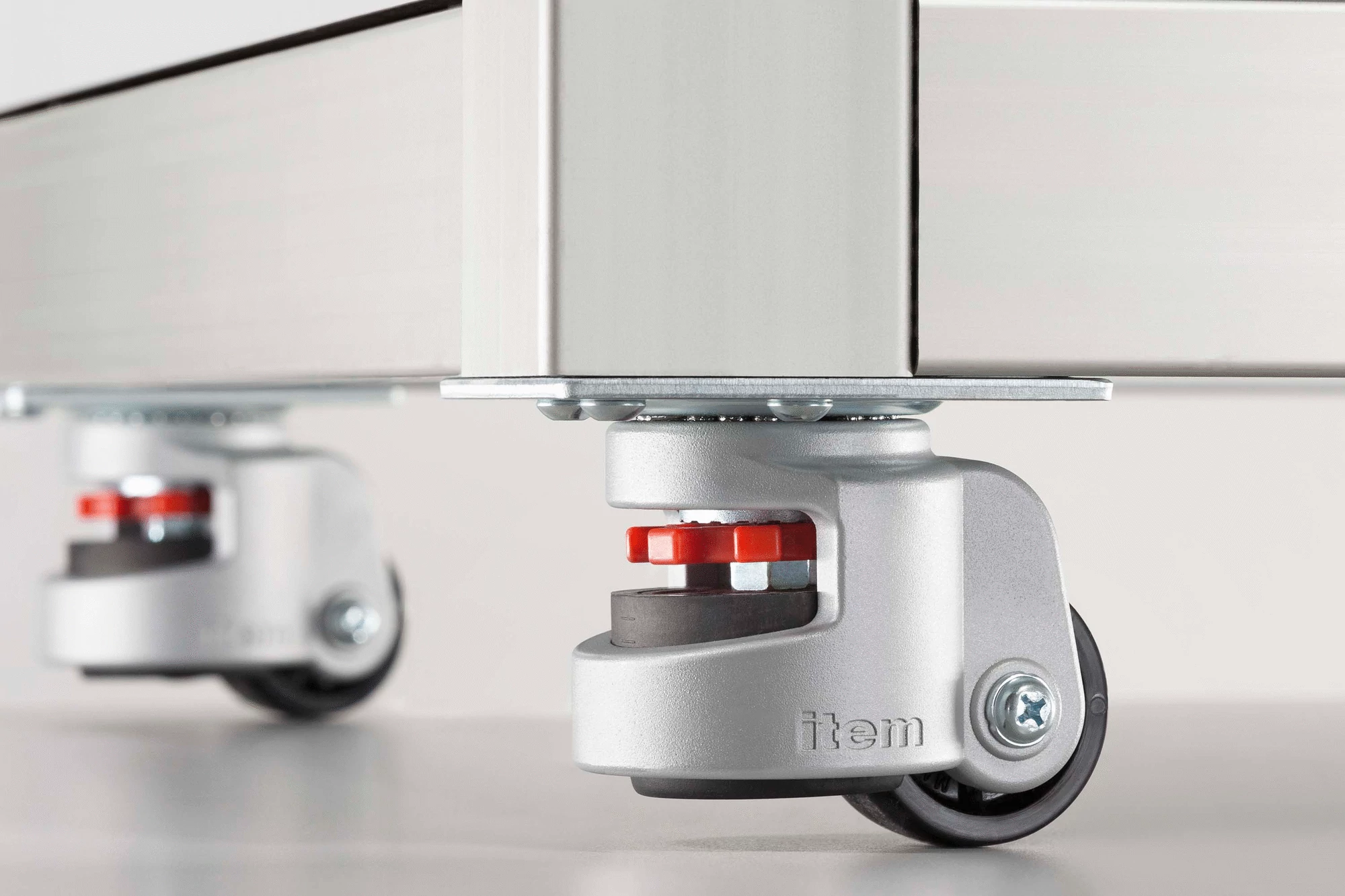

Can you have a footing that is rock solid, and yet movable? You can with the item Jacking Castor! This product combines a castor with a height-adjustable, non-slip knuckle foot. It enables personnel to move work benches, laboratory equipment and racks to precisely where they are needed. And when they get there, the integrated knuckle foot is simply lowered into position to ensure nothing shakes around or slips. Jacking Castors D62 are designed to accommodate loads up to 3400 N. The height adjustment function can be operated via an integrated adjustment wheel or using a wrench (17 A/F). The knuckle foot can compensate for a difference in height of up to 12 mm. Jacking Castor D62 120x120 features a universal connecting plate that is compatible with frames made of Line 8 profiles. The screw attachment can be made using Button-Head Screw M8x16 (8.0.000.19) and T-Slot Nut 8 St M8 (0.0.026.18).

Jacking Castor D62 120x120 features a universal connecting plate that is compatible with frames made of Line 8 profiles. The screw attachment can be made using Button-Head Screw M8x16 (8.0.000.19) and T-Slot Nut 8 St M8 (0.0.026.18).
