| Rod Latch 8 | CADPDFRFQ |

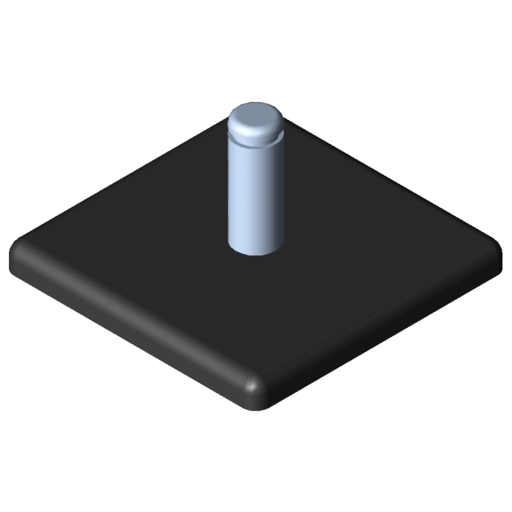

Preview
Rod Latch 8
Cap, PA-GF, black Locking pin, St, stainless Rod actuator pin, St O-ring DIN 3771 5.5×1.5, NBR, black Self-tapping screw DIN 7982-4.2×16, St, black
Scope of Delivery
Cap, PA-GF, black Locking pin, St, stainless Rod actuator pin, St O-ring DIN 3771 5.5x1.5, NBR, black Self-tapping screw DIN 7982-4.2x16, St, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 30 g |
| Delivery unit | 1 set |

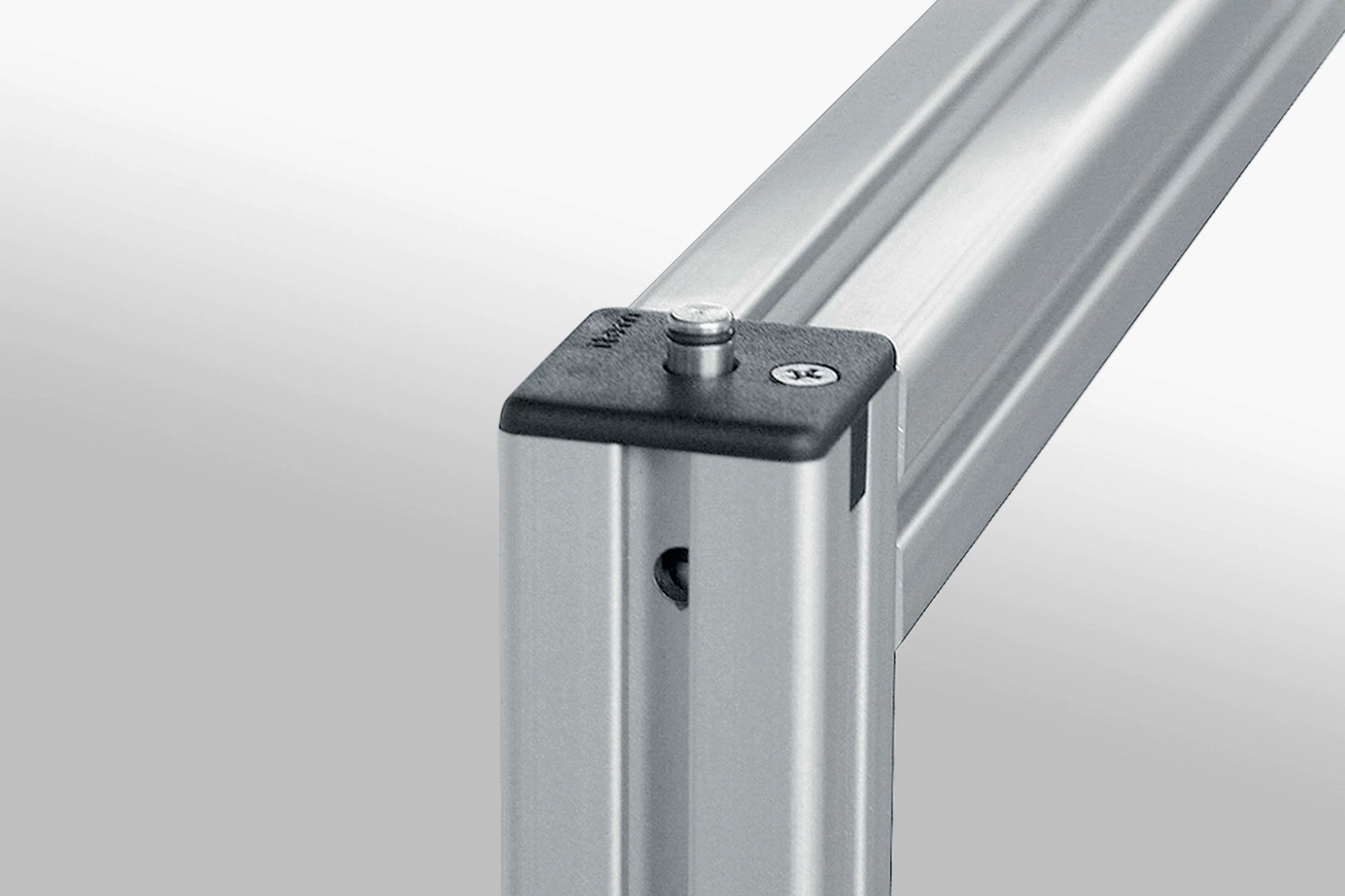

The rods of the Rod Latches move out of the core bore in the door profile and engage in the Profile 8 groove of the door frame profile adjacent.
Integrated Lock System 8 is a modular door lock for guards and enclosures. The various configurations using pawl latches or rods enable doors to be locked in up to three directions. The lock is fully integrated into Profile 8 or Profile 8 light (not clamp profiles) - the rotating pawl latch swings into the lateral profile groove and the rods are concealed in the profile core bore. The system can be operated from either one side or both sides of the door (i.e. inside/outside). There is also the option of locking the door from one side by using the lockable Door Knob.
The basic version of the door lock with Integrated Lock System 8 consists of Rotating Pawl Latch 8 and at least one Door Knob. A Rod Latch 8 is required for the rod for both the upper and lower ends of the door.
Tube D6.3x1.6 5.5 A/F forms the connection between the Rotating Pawl Latch and the Rod Latch. The length l of the tube for actuating the Rod Latch is: l = a - 60 mm

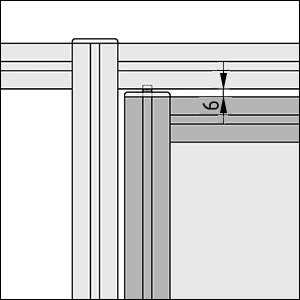

The gap between the door profile and the upper door frame must not exceed 6 mm.
