Standard-Fastening Set (Profile St) 8, stainless

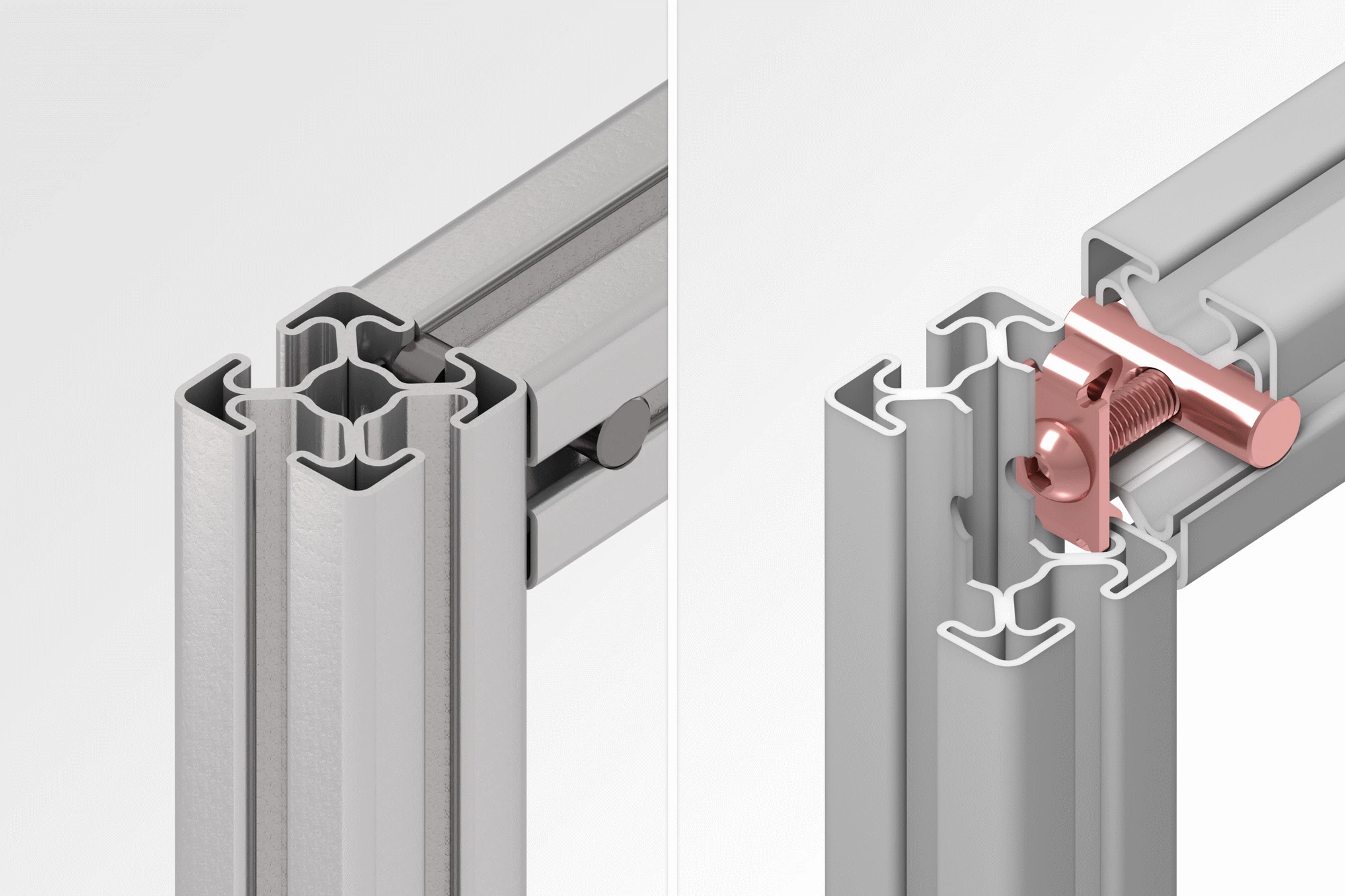

Standard-Fastening Set (Profile St) 8 from item joins two Profiles St 8 made of stainless steel at a right angle to create a connection that exhibits very high resistance to displacement and torsion. The connecting plate is made of bright zinc-plated steel and projects into the grooves on both sides to ensure the alignment of the profiles is torsion-resistant. When installing this fastener, a threaded bolt is inserted into a bore that has been drilled into the first profile. The second profile requires an installation bore and is connected in a fixed position.
