| Stand Foot Set 8 St 120×120/40×40 | CADPDFRFQ |
Forhåndsvisning
Stand Foot Set 8 St 120×120/40×40

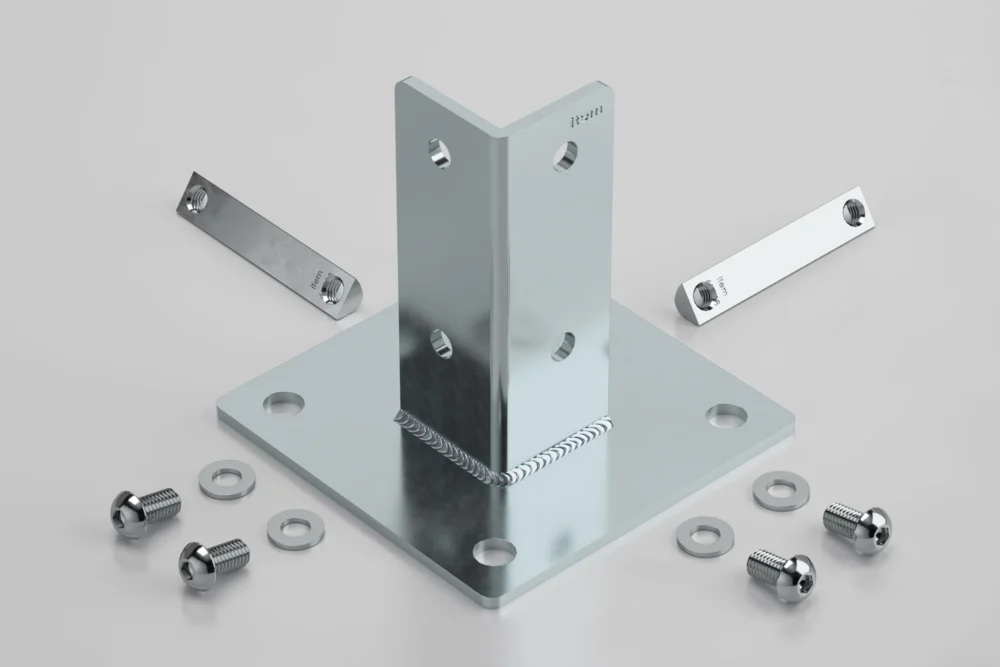

1 stand foot 8 St 120×120/40×40, St, bright zinc-plated 2 T-Slot Nuts 8 St 2xM8-76, St, bright zinc-plated 4 washers ISO 7089-8-200 HV, St, bright zinc-plated 4 Button-Head Screws ISO 7380 M8x16, St, bright zinc-plated
Scope of Delivery
1 stand foot 8 St 120x120/40x40, St, bright zinc-plated 2 T-Slot Nuts 8 St 2xM8-76, St, bright zinc-plated 4 washers ISO 7089-8-200 HV, St, bright zinc-plated 4 Button-Head Screws ISO 7380 M8x16, St, bright zinc-plated
Properties
| Drejningsmoment | M = 25 Nm |
|---|---|
| linje 8 | linje 8 |
| ESD-safe | Ja |
| Vægt | m = 830 g |
| Delivery unit | 1 set |

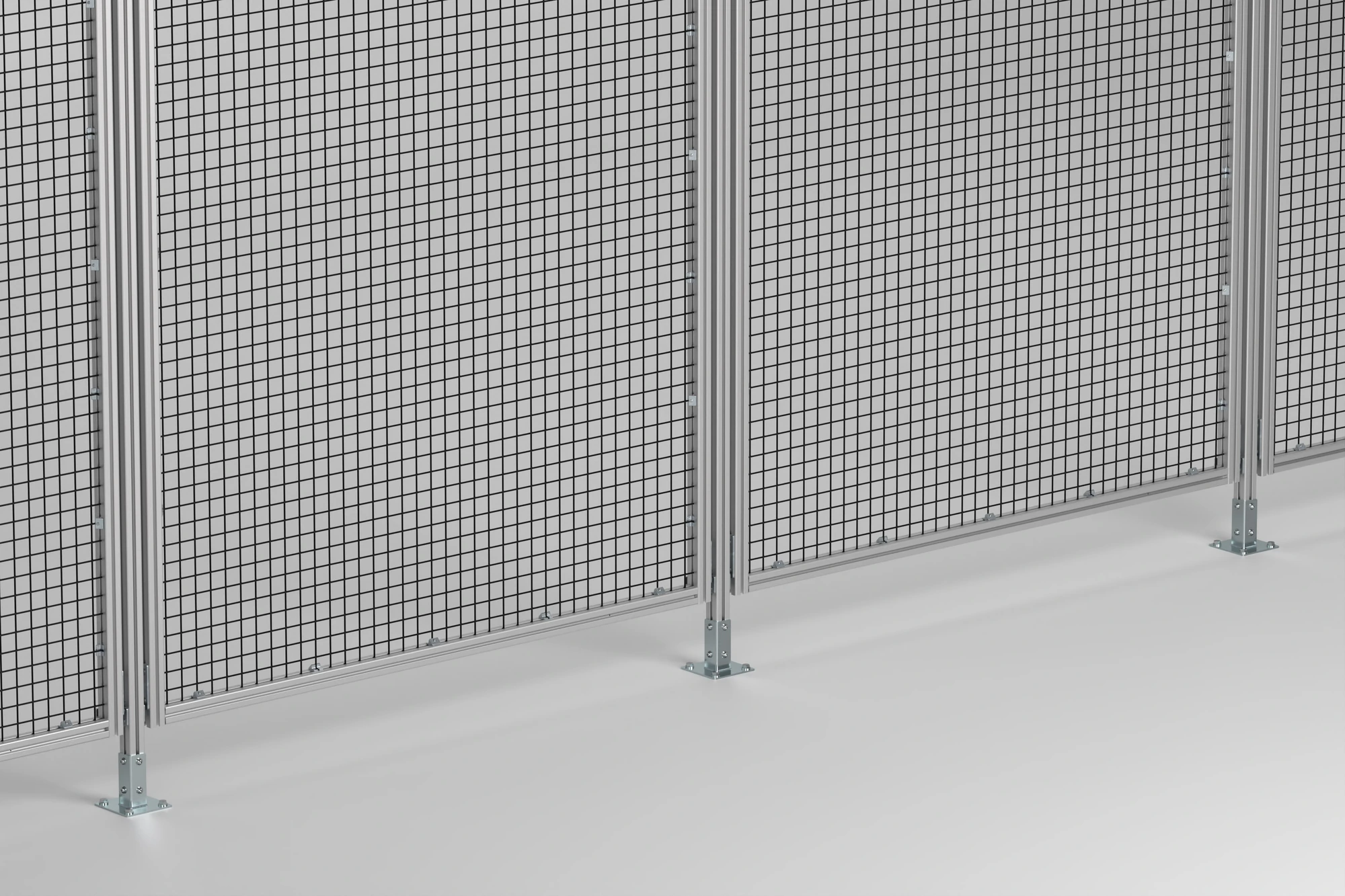

Stand Foot Set 8 St 120x120/40x40 can be used to install enclosures and guards securely, including fastening them to the floor. The stand foot is fastened in two vertical Line 8 grooves of a Stand Profile, which enables precise height adjustment. The stand foot can be anchored securely to the factory floor via four holes, for example using item Screw Anchors ST 10x110 (0.0.688.05).
The stand foot can also be used as a floor fastening element for machine cabins and other profile frames. Since it is connected via the outer Line 8 grooves, horizontal profiles can also run very close to the floor.
