Slide Strip 8 med sideføring H24 ESD, sort
Konfigurerede produktdata
Intet genereret endnu
Du skal konfigurere dit produkt nedenfor, før du anmoder om tilbudProperties
| linje 8 | linje 8 |
|---|---|
| ESD-safe | Ja |
| Vægt | m = 180 g/m |
| Delivery unit | cut-off max. 2000 mm |
| Materiale | PE-UHMW |
| Colour | sort |

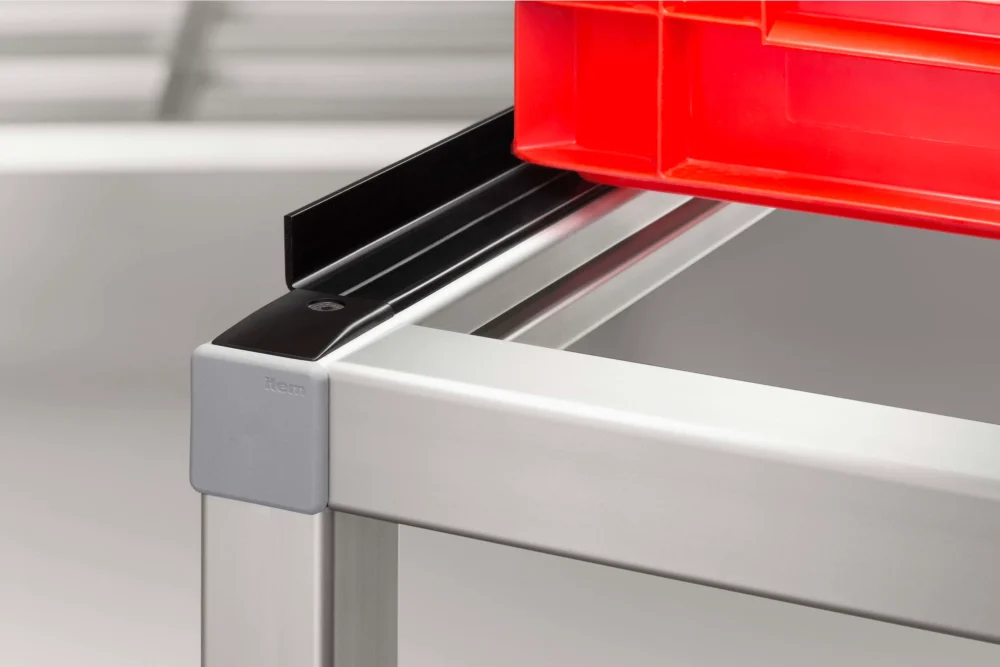

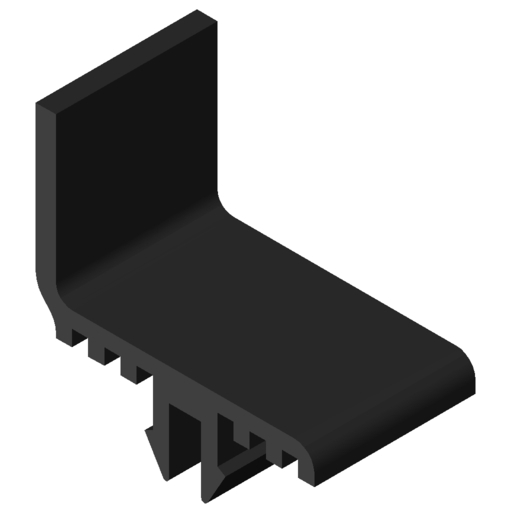

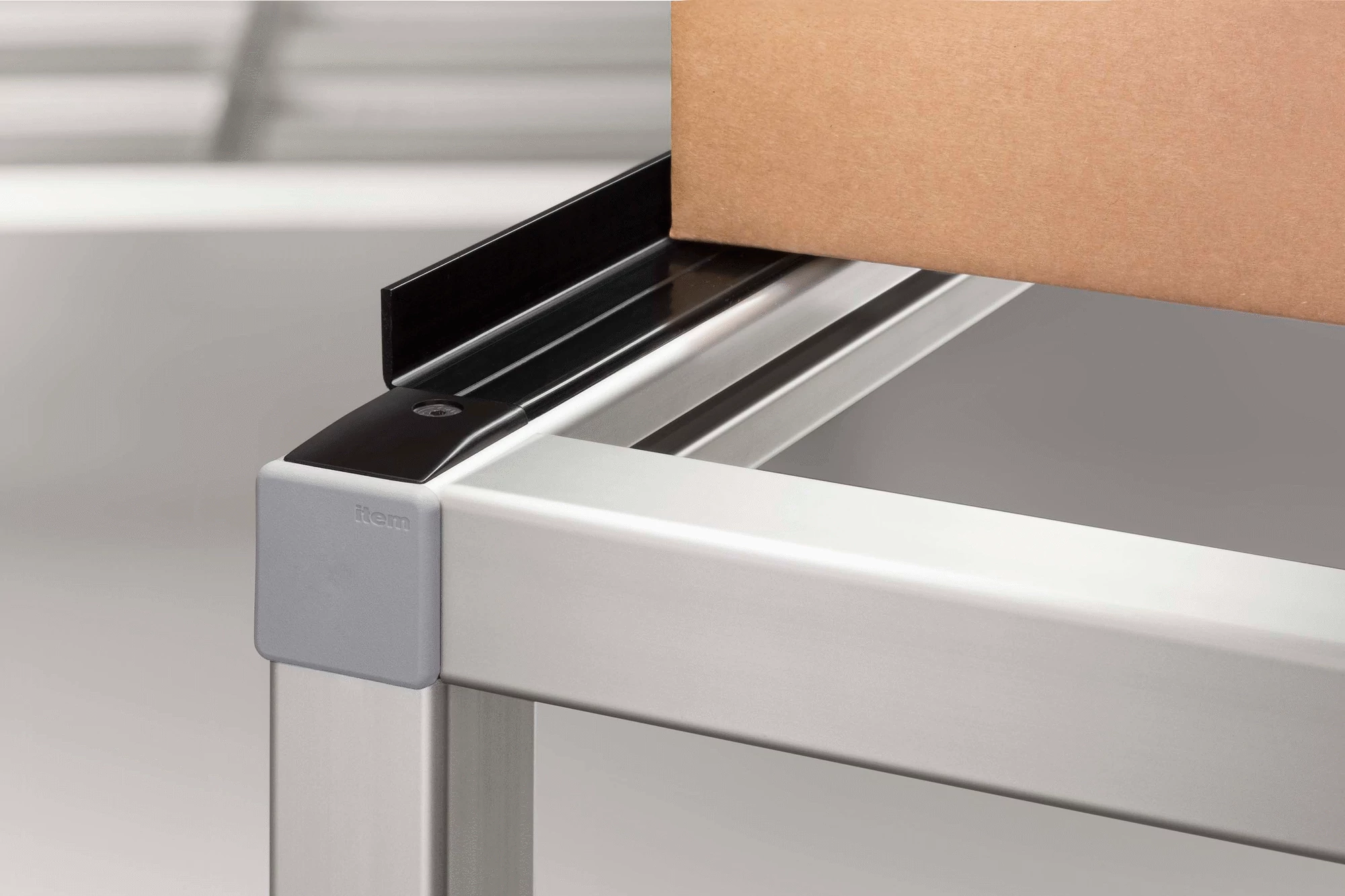

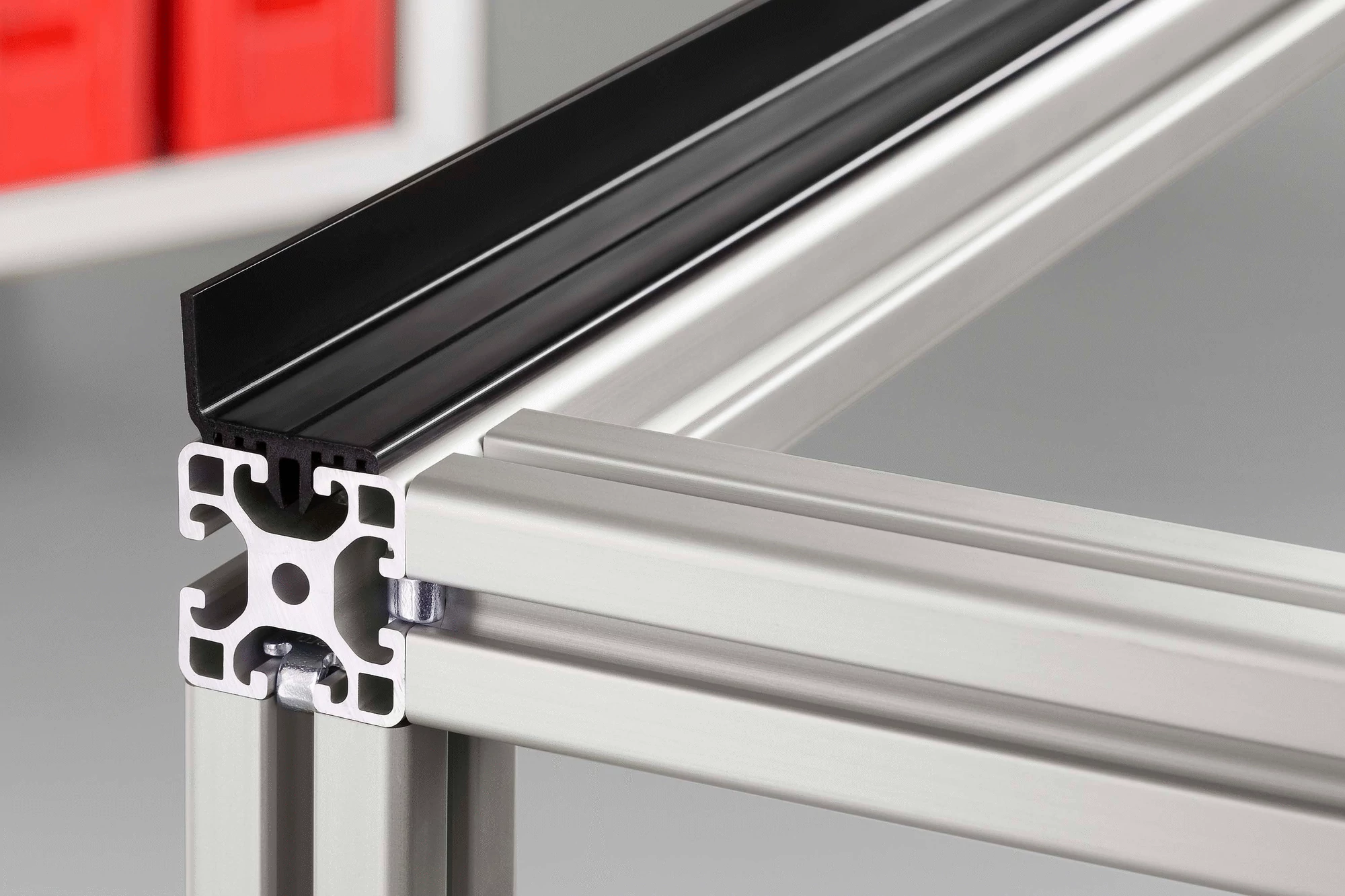

Keep things running properly! Slide Strip 8 with Side Guide H24 ESD transforms a Line 8 profile into a conveyor line. The Slide Strip simply clips into the Line 8 groove. Made of ultra-high molecular weight polyethylene, the low-friction plastic track makes it easy for users to move crates and workpiece carriers from A to B. The 20 mm high side guide keeps small load carriers on track. Electrostatic charges are safely dissipated. Screw-attached Slide Strip Wedge 8 (0.0.422.04) creates a gentle transition between the profile and the Slide Strip and protects the outer edge. Note: Slide Strip 8 ESD (0.0.457.99) is available as an alternative without a side guide.
