| Sliding-Door Guide Set 8 | CADPDFRFQ |
Preview

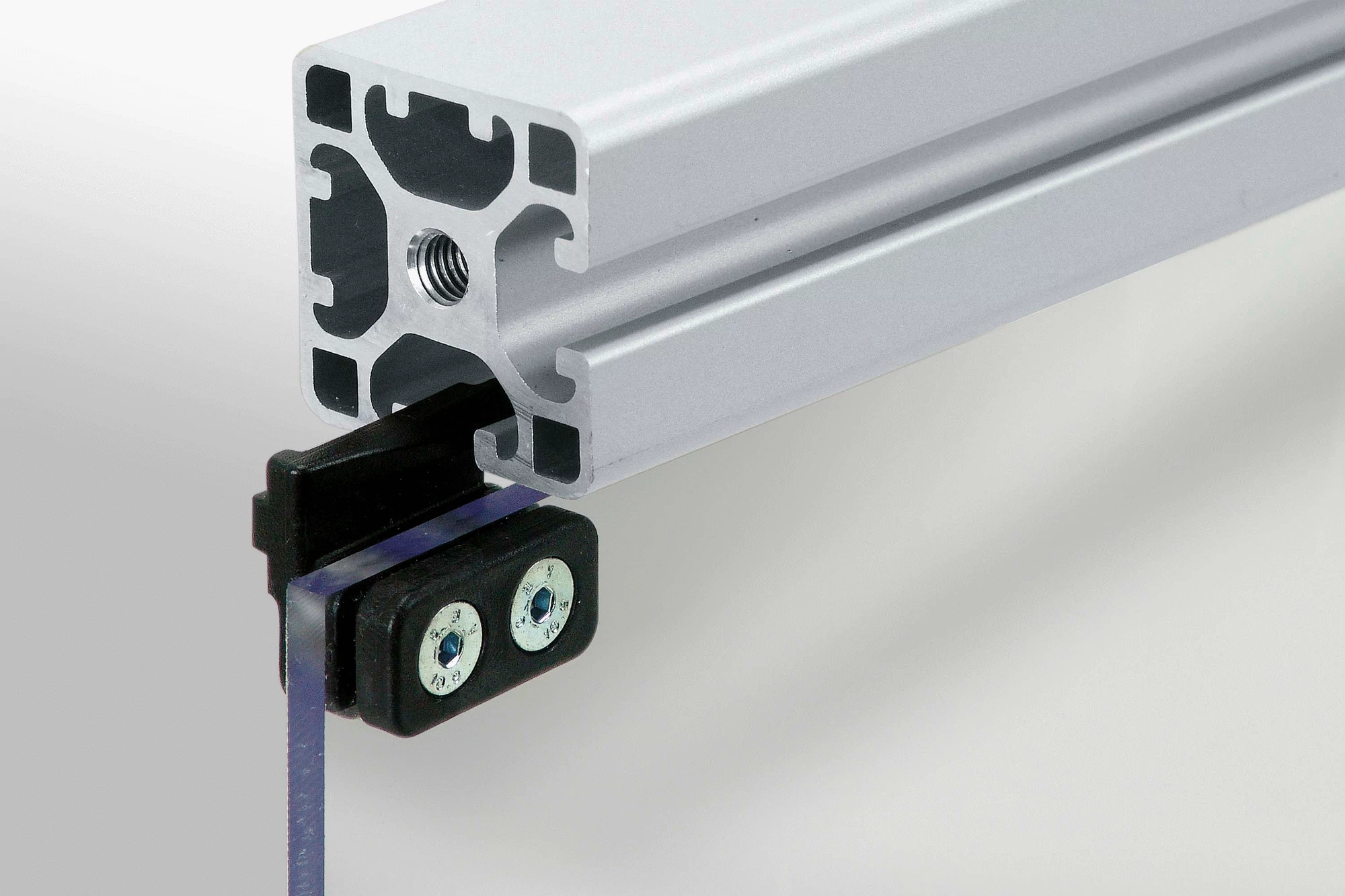

Sliding-Door Guide Set 8

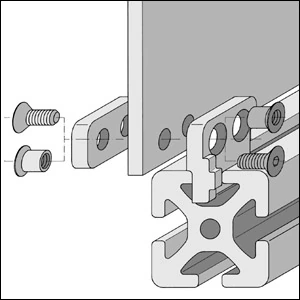

4 slide pieces (2xright, 2xleft), POM, black 4 spacer pieces, POM, black 8 Countersunk Screws DIN 7991-M5x12, St, bright zinc-plated 8 threaded bushings, St, bright zinc-plated
Scope of Delivery
4 slide pieces (2xright, 2xleft), POM, black 4 spacer pieces, POM, black 8 Countersunk Screws DIN 7991-M5x12, St, bright zinc-plated 8 threaded bushings, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 58 g |
| Force max | Fmax. = 100 N |
| Delivery unit | 1 set |

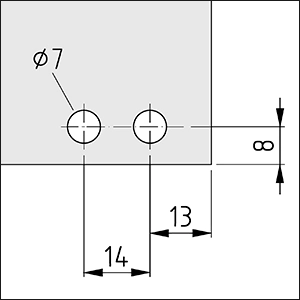

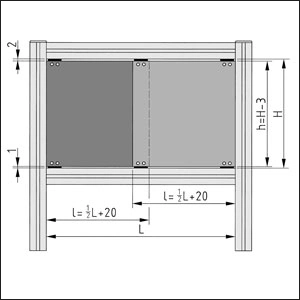

Sliding Door Guide Set 8 is used in the construction of sliding doors from frameless panel elements, with the Profile 8 groove serving as a guide. There can be up to 2 sliding doors in a single groove. One Sliding Door Guide Set 8 is required for each sliding door. Each slide piece is secured in position by means of two Countersunk Screws DIN 7991-M5x12. Panel elements thicker than 5 mm must be secured with Countersunk Screws DIN 7991-M5x16. The slide pieces can be fitted from either side to suit the application.
The maximum permissible weight of one door is 10 kg.

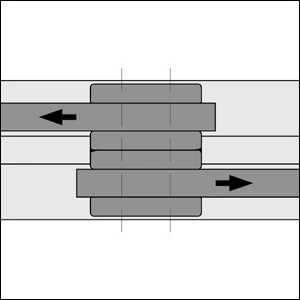

There can be either 1 or 2 sliding doors in a single Profile 8 groove. The slide pieces function as stops or catches for the second door at the terminal position.
