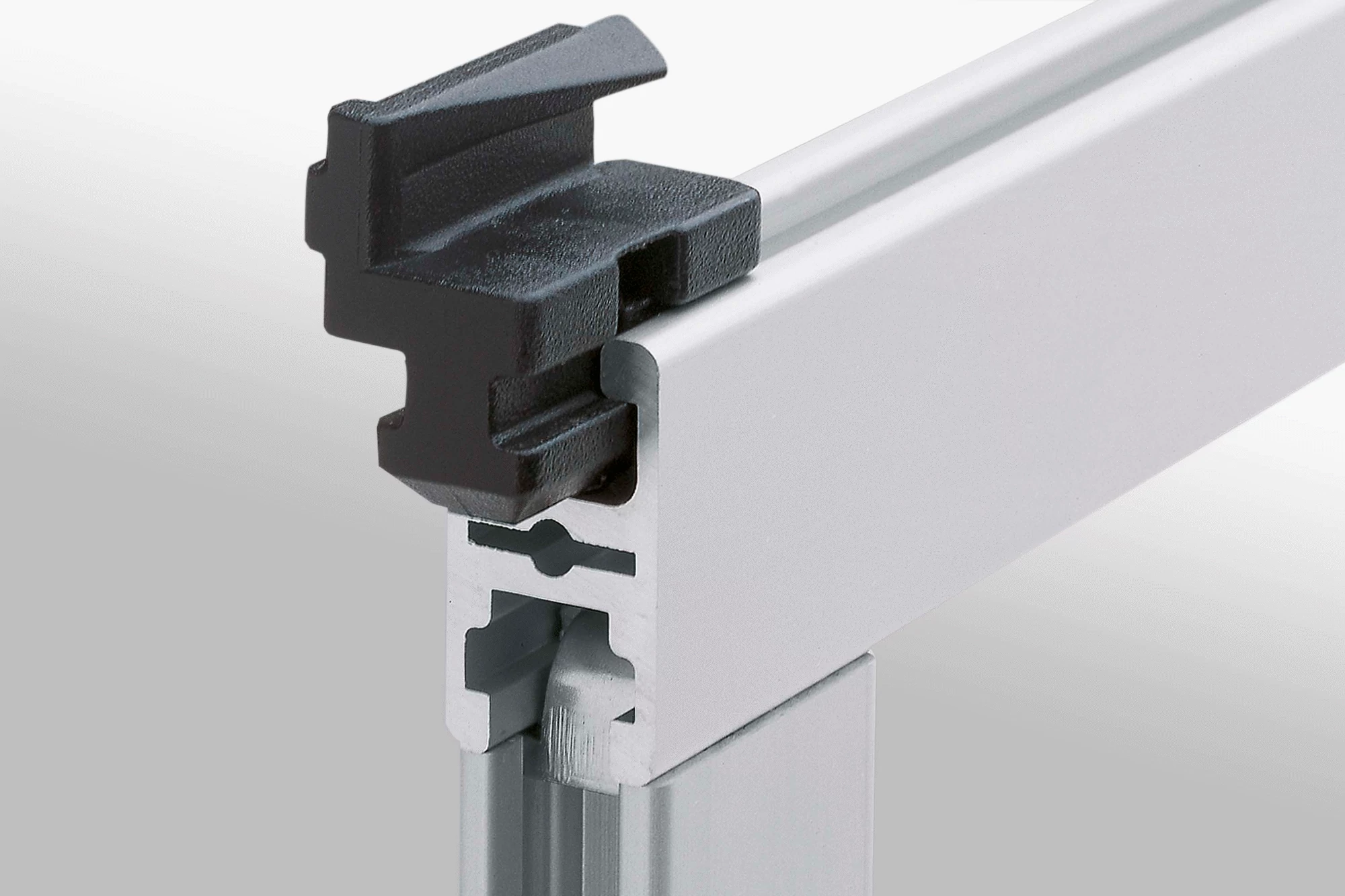

Sliding-Door Guide Set 8/8

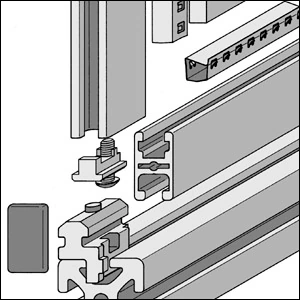

For the construction of sliding doors in conjunction with Clamp Profile 8 32x18. One Sliding-Door Guide Set 8/8 is required for each sliding door. Fastening is by means of a spring bolt locking into the ⌀ 7 mm mounting bore of Clamp-Profile Fastening Set 8 32x18. Should fastening elements in the guide groove cause obstruction, the slide piece can be fixed at an alternative position by drilling an additional ⌀ 7 mm hole in the door profile.

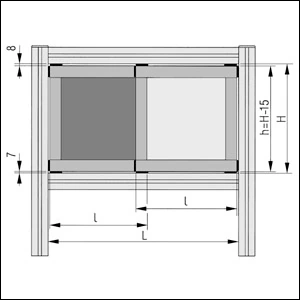

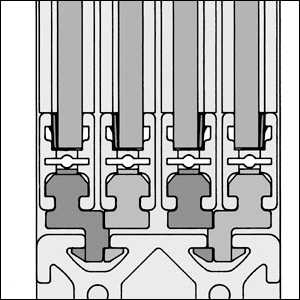

There can be either 1 or 2 sliding doors in a single Profile 8 groove. The slide pieces function as stops or catches for the second door at the terminal position.
