Sliding Door 8 32×18, Catch

2 catch plates, St, bright zinc-plated 2 locating lugs, die-cast zinc 4 buffers 2 T-Slot Nuts V 8 St M8, bright zinc-plated 2 dome-head screws M8x14, St, bright zinc-plated

Varenr: 0.0.717.55 Kategori: Tag:
Set CAD-format
Sliding Door 8 32×18, CatchCADPDFRFQ

Preview

Scope of Delivery

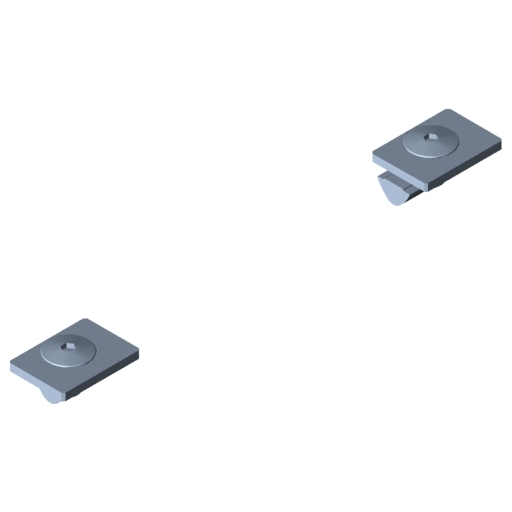

2 catch plates, St, bright zinc-plated 2 locating lugs, die-cast zinc 4 buffers 2 T-Slot Nuts V 8 St M8, bright zinc-plated 2 dome-head screws M8x14, St, bright zinc-plated

Properties

TorqueM = 8 Nm
line 8line 8
ESD-safeNo
Weightm = 65 g
Delivery unit1 set
Slender Clamp Profiles 8 32x18 create space-saving sliding doors. Installing three door segments ensures that a large area equivalent to two thirds the total width of the frame can be opened up. Sliding-Door Guide Profile 8 40x10 (0.0.495.13) allows you to move two door segments in parallel along one Line 8 groove. Roller for Corner-Fastening Set 8 32x18 (0.0.494.74) keeps everything running smoothly.

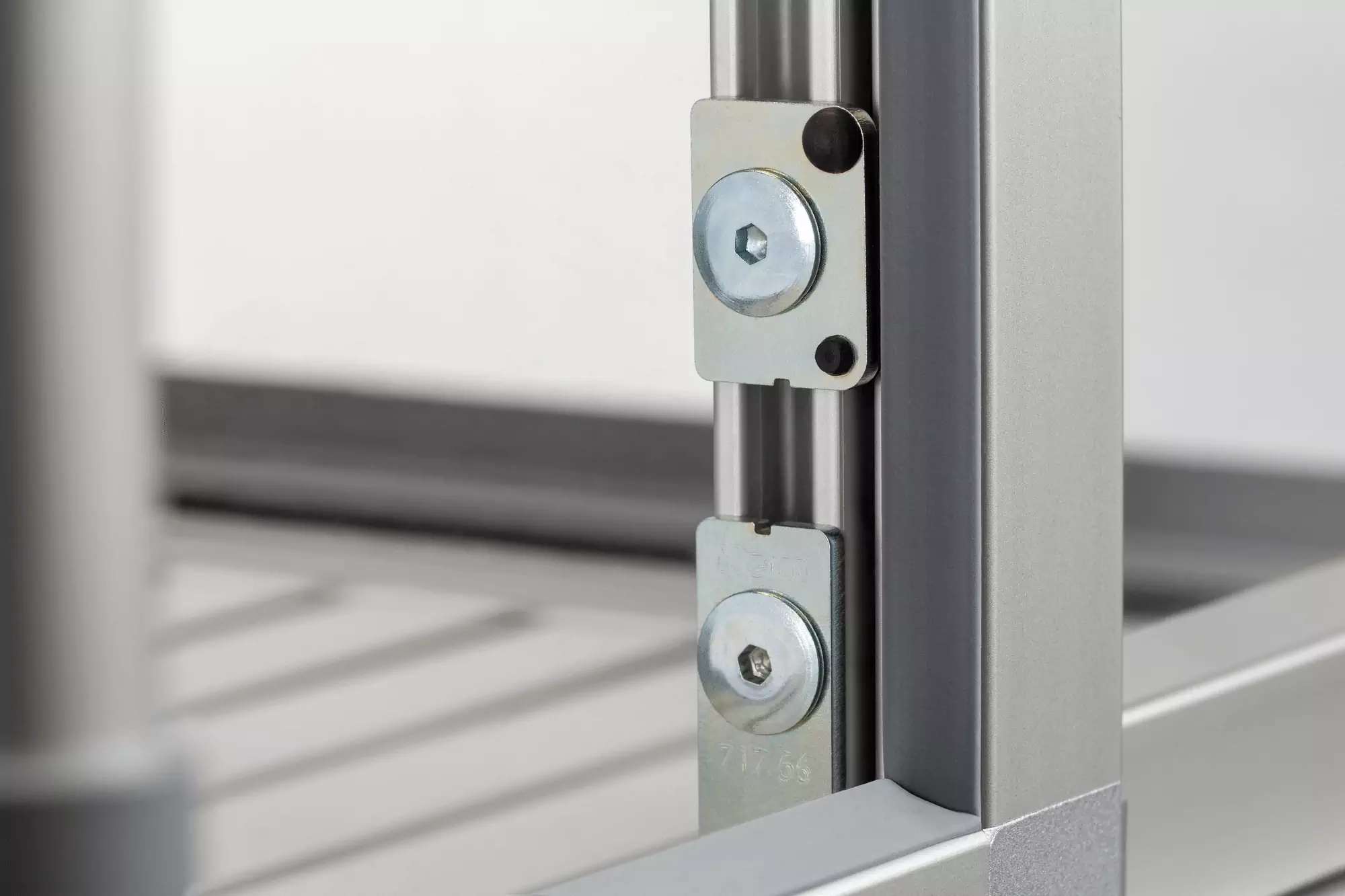

Sliding Door 8 32x18, Catch makes it possible to open and close several door segments made from Clamp Profiles 8 32x18 simultaneously. When moving the door segment at the front, the sliding door segments behind are automatically moved with it. Integrated buffers ensure door segments catch on each other gently in both directions of movement. Two catches are used on each door segment (one at the top, one at the bottom).
