Compound Material HPL 36mm, white similar to RAL 9016

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Varenr: 0.0.716.43 Kategorier: , Tag:
Set CAD-format
0.0.716.43

Preview

Properties

ESD-safeNo
Weight, spec. Surfacem = 6.34 kg/m2
Delivery unitcut-off max. 2700x1754 mm
MaterialHPL composite
Colourwhite similar to RAL 9016
cleanroom suitabilityYes

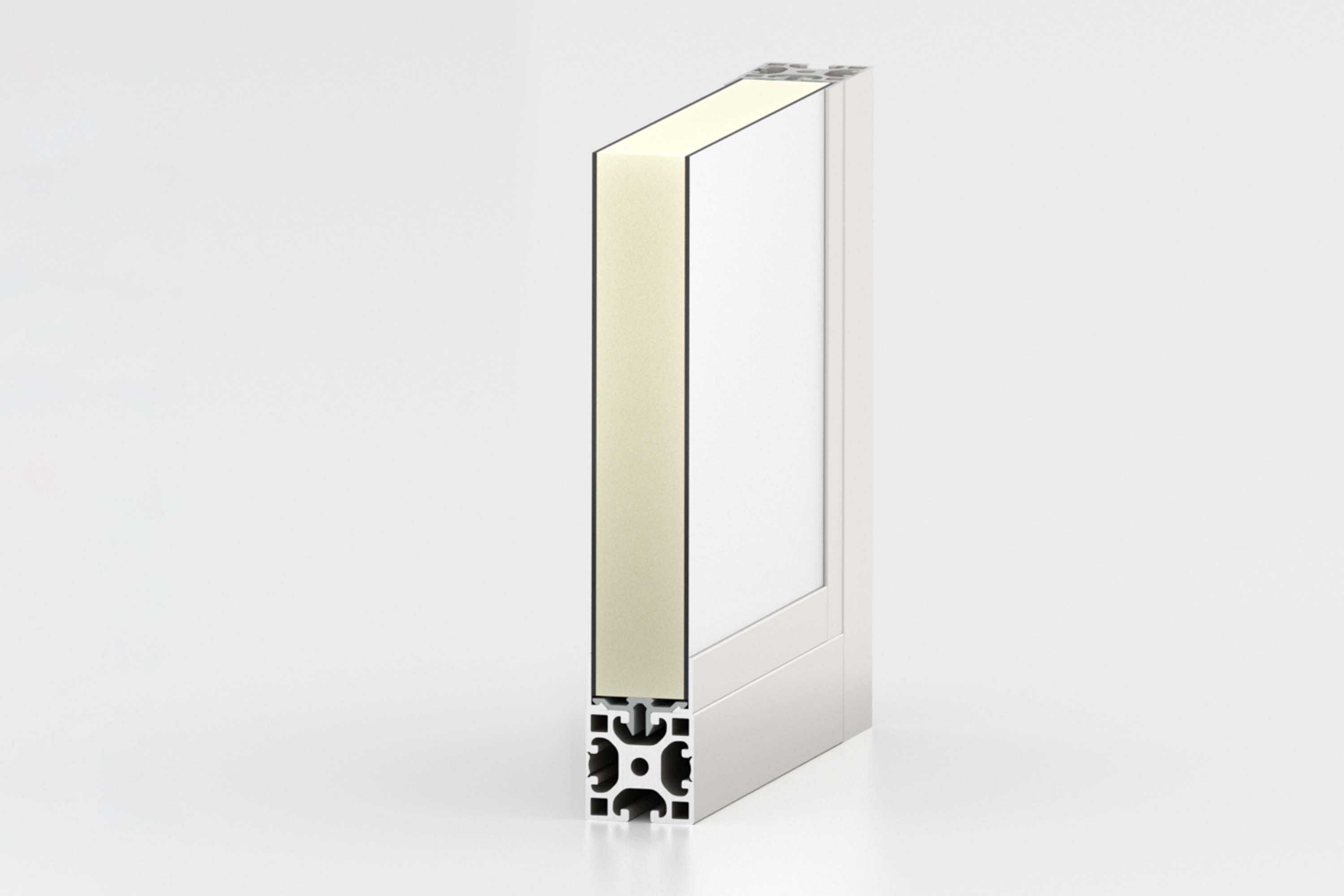

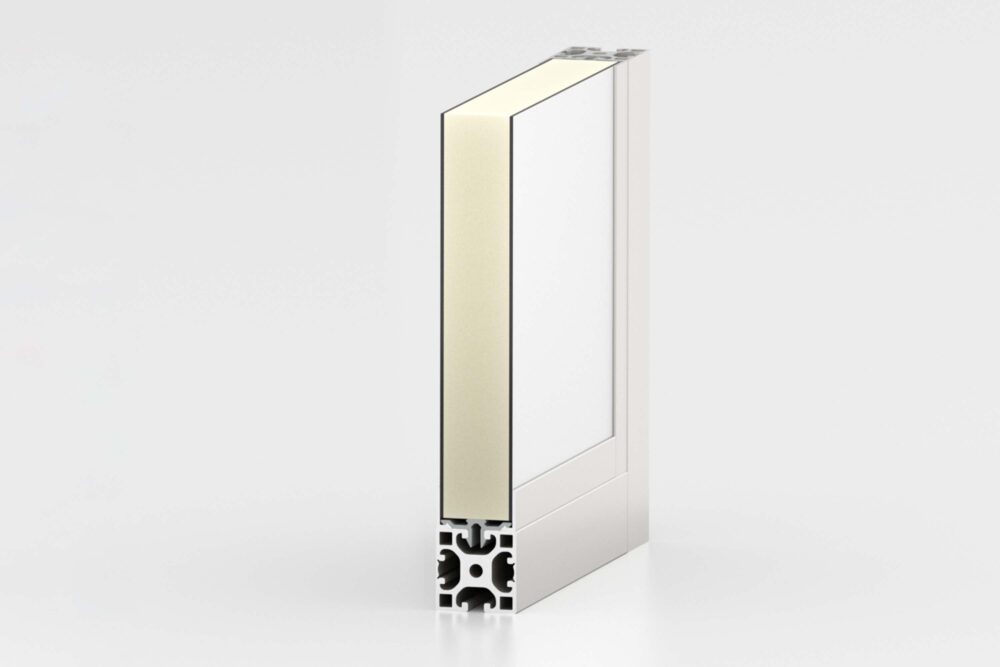

Compound Material HPL 36mm comprises two outer layers of 2-mm-thick white plastic and a core made of XPS rigid foam. The overall thickness of this sandwich element is 36 mm. When combined with the item Fixing System, it produces flush-mounted wall panels in a modular dimension of 40 mm. This Compound Material is particular suitable for use in cleanrooms.

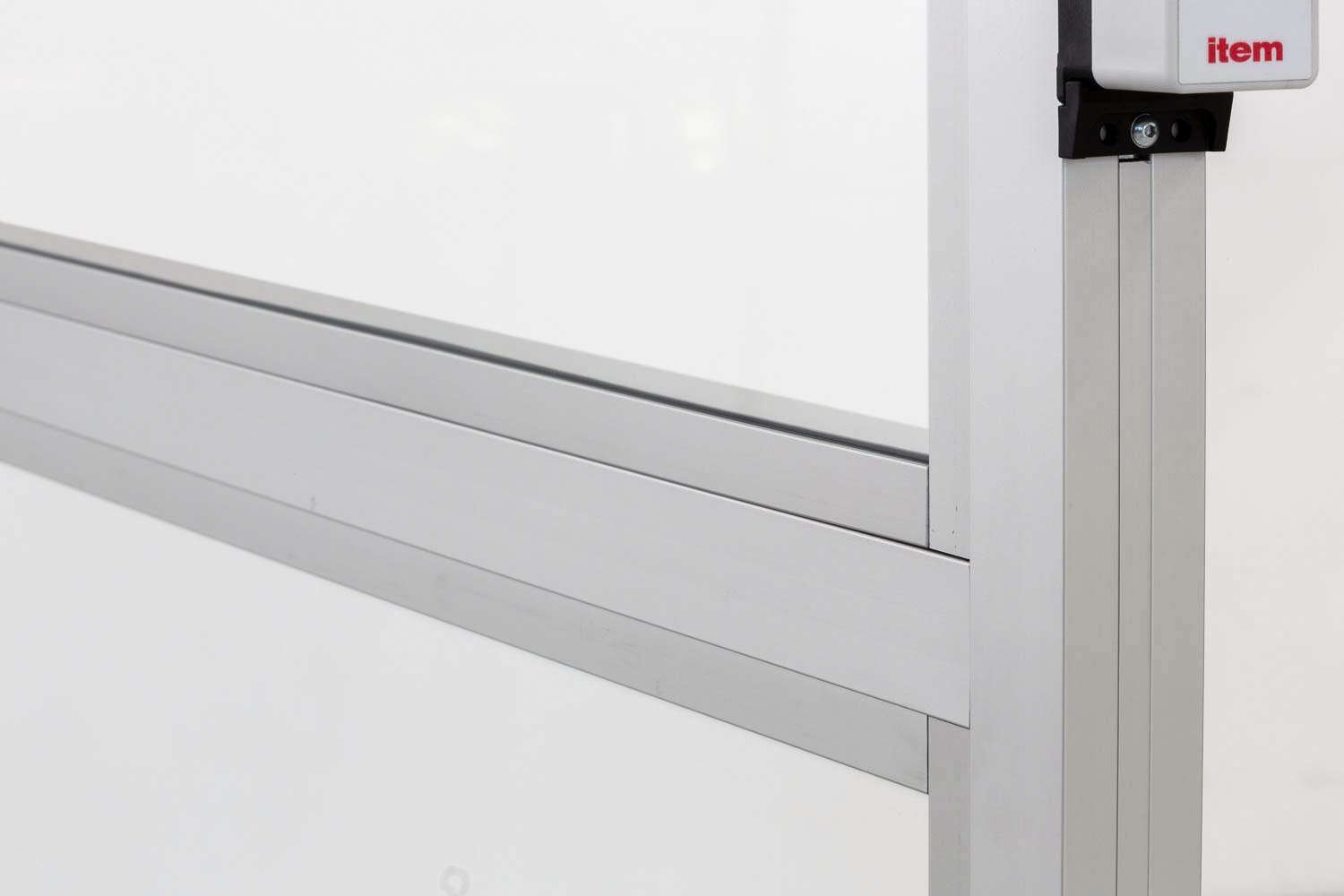

In clean production applications, Compound Material HPL 36mm is fixed in place using the item Fixing System. The sandwich panel is placed on Fixing System, Base Profile X 8 (0.0.716.23) and secured in place on both sides with Fixing System, Angle Strip X 8 Al (0.0.716.25).
