Profile X 8 40-45° K15 – XMS, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Cross-sectional area | A = 10.88 cm2 |
| Moment of Inertia, torsional | It = 7.23 cm4 |
| Moment of Inertia, x-axis | Ix = 27.54 cm4 |
| Moment of Inertia, y-axis | Iy = 62.1 cm4 |
| Weight | m = 2.94 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |

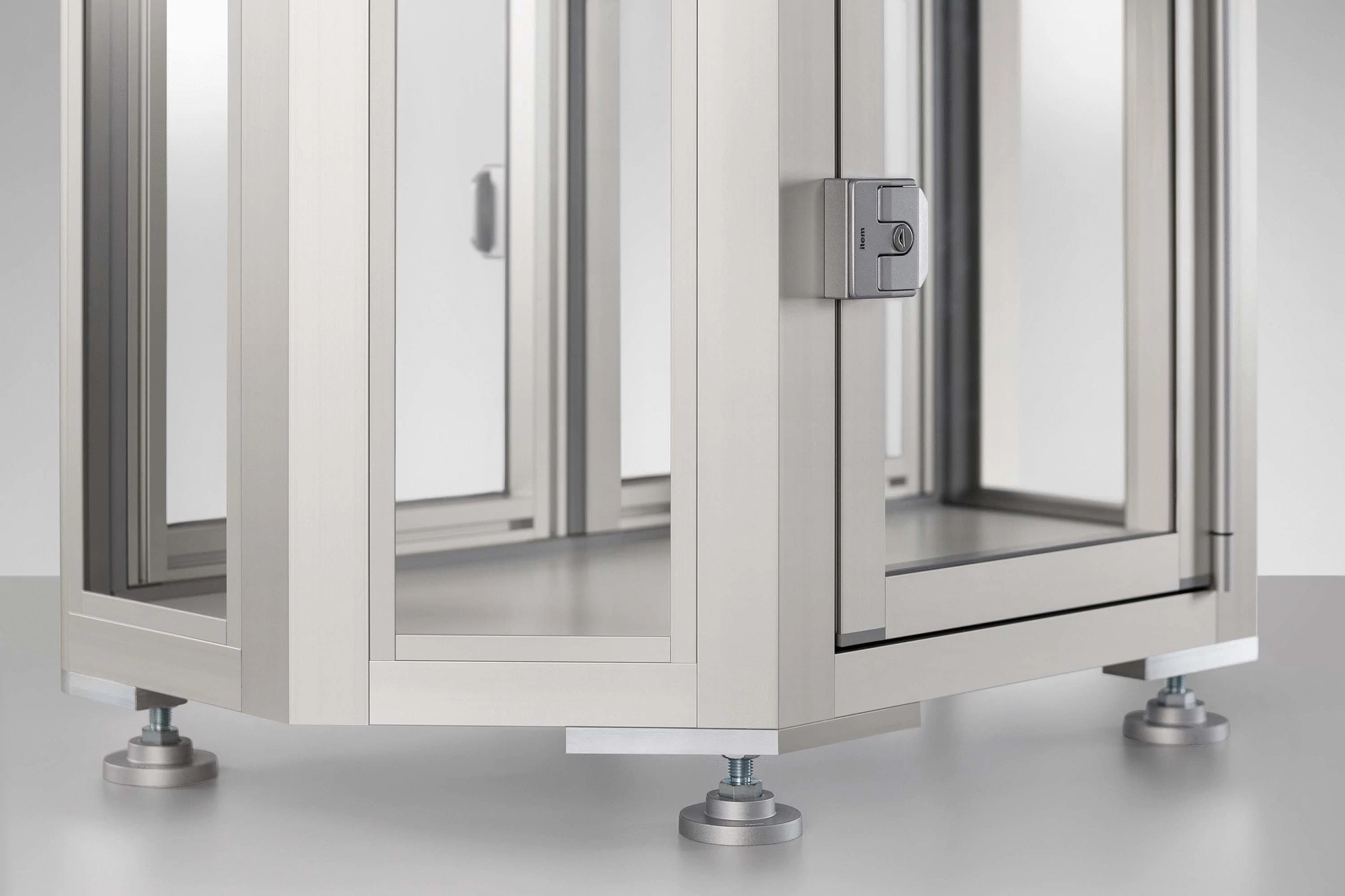

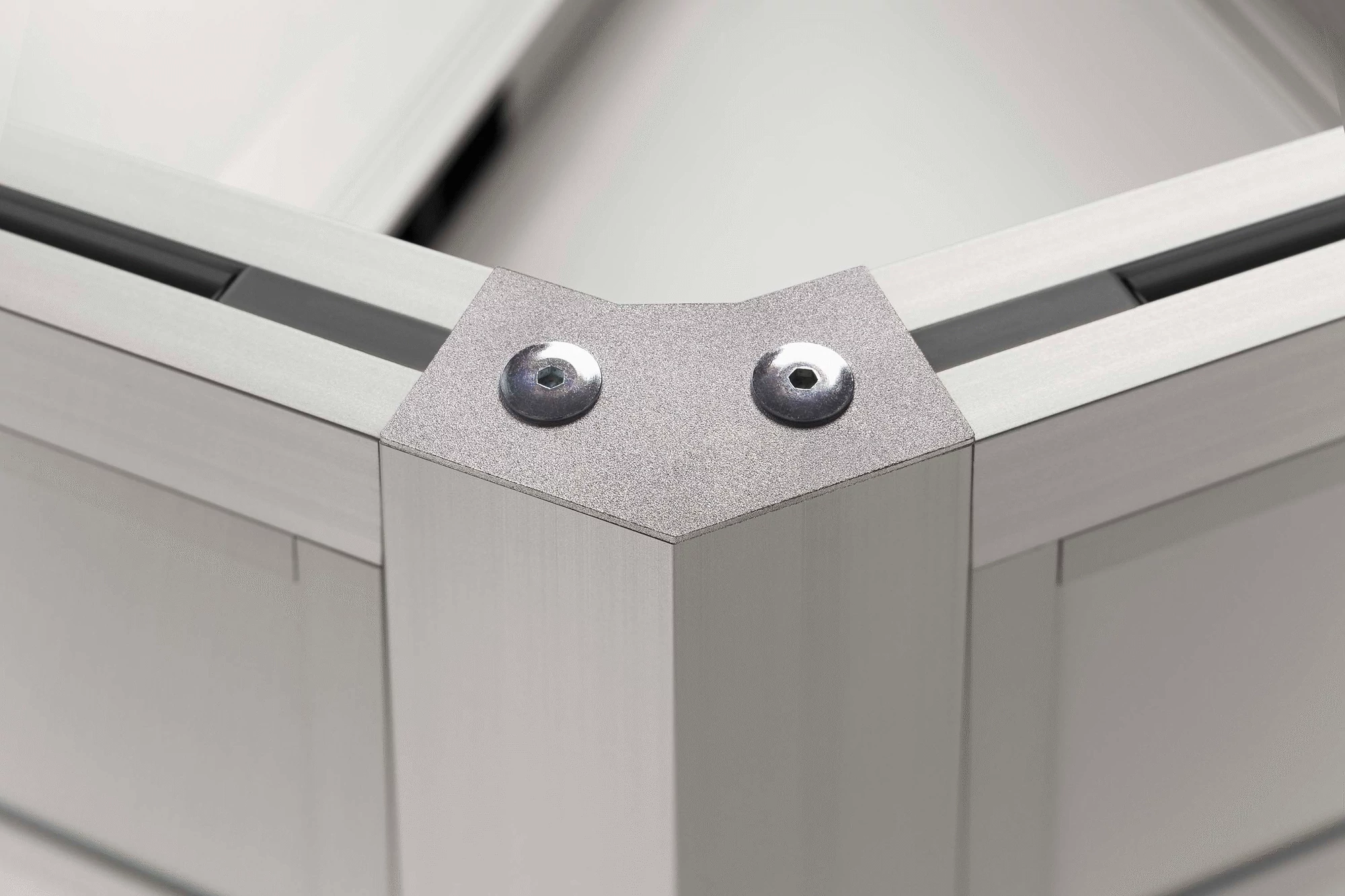

Compact Profile X 8 40-45° K15 - XMS has a narrow integrated cable conduit and one Line 8 groove on each side. Door Lip Seal T1 - XMS (0.0.649.88) can be fitted into the specially designed seal grooves of the profile to act as a door rabbet and seal.
