Profile 8 W80x80x40 light, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 17.77 cm2 |
| Moment of Inertia, torsional | It = 30.35 cm4 |
| Moment of Inertia, x-axis | Ix = 95.32 cm4 |
| Moment of Inertia, y-axis | Iy = 95.32 cm4 |
| Weight | m = 4.79 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 2500 N |

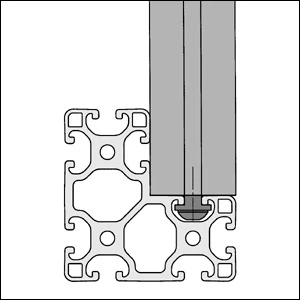

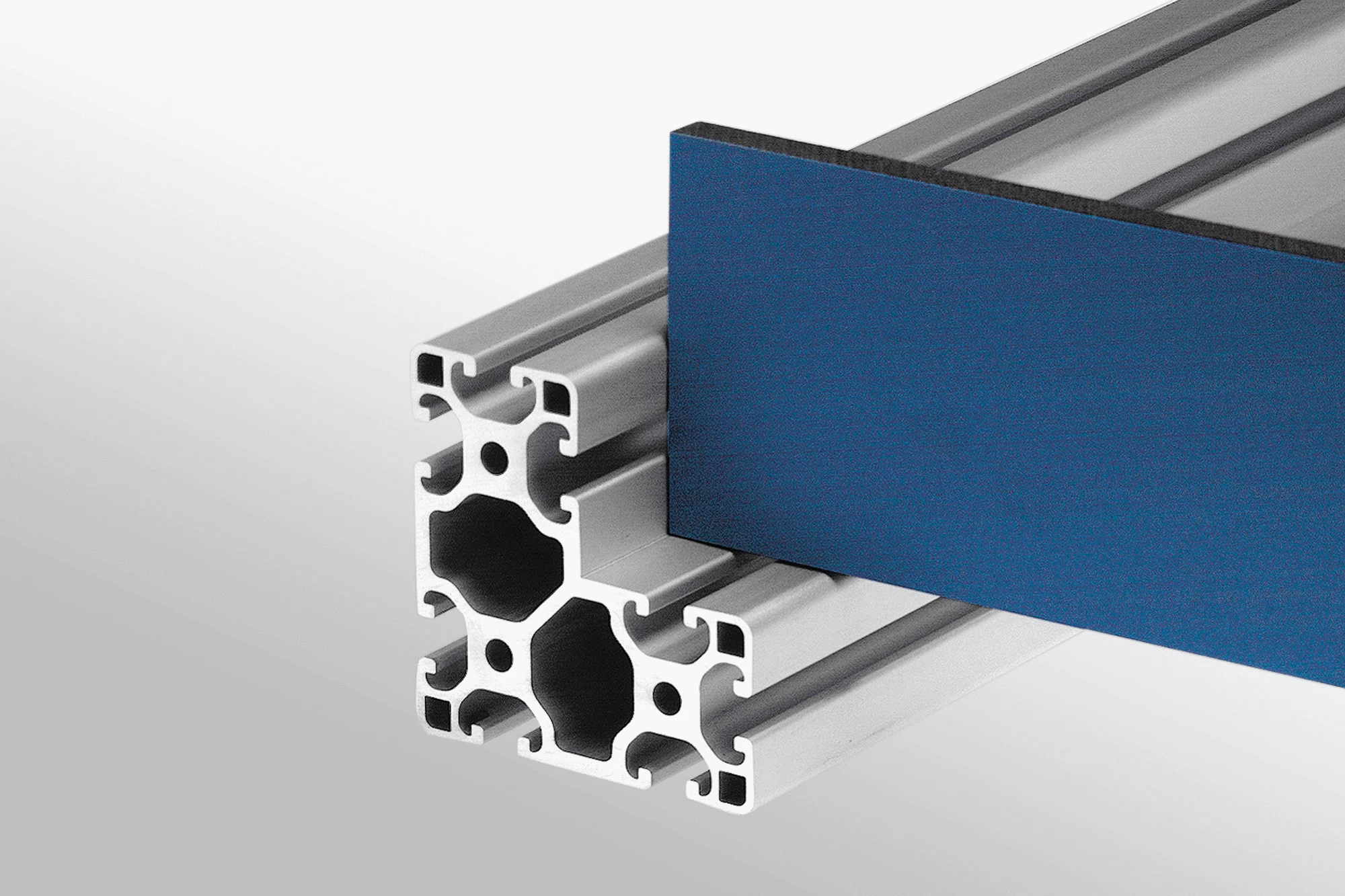

The inside corner of the angled profiles is provided with an undercut. Attachments with sharp edges can therefore be screwed flush with the surface on both sides.
