Profile 5 20×20 2N180, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 5 | line 5 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 1.89 cm2 |
| Moment of Inertia, torsional | It = 0.3 cm4 |
| Moment of Inertia, x-axis | Ix = 0.74 cm4 |
| Moment of Inertia, y-axis | Iy = 0.8 cm4 |
| Weight | m = 0.51 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 500 N |

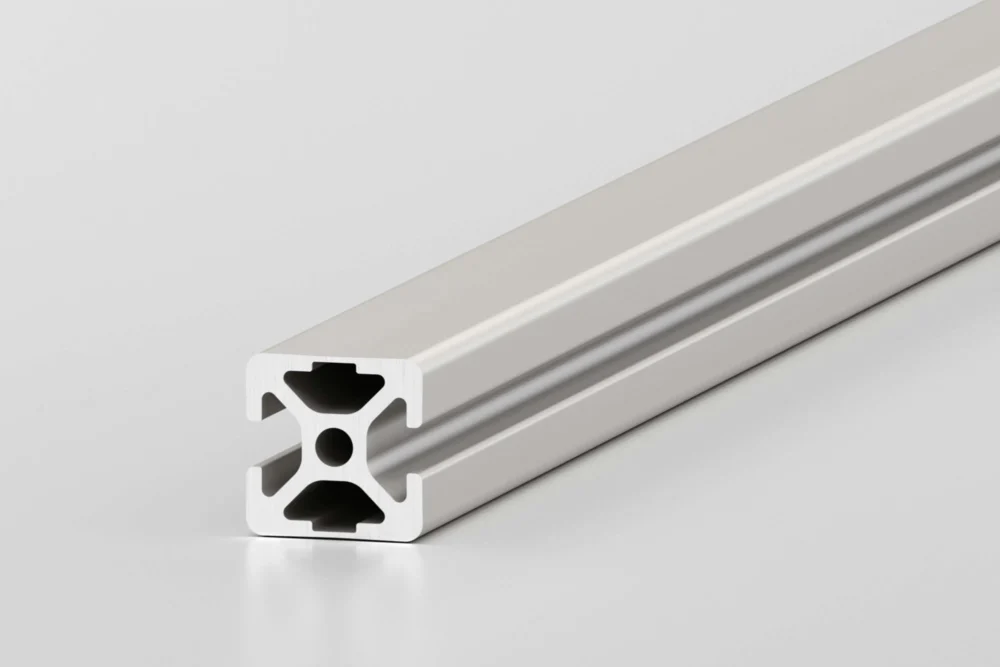

Profile 5 20x20 2N180 is a universal construction profile made of high-quality anodized aluminium in the modular dimension of Line 5. This compact aluminium profile in the standard design variant from item features two open and two closed Line 5 profile grooves, arranged at 180° to each other. It can be used to build frames that have easy-to-clean, unbroken outer surfaces.
Line 5 profiles from item are available with closed grooves in a variety of arrangements. The profile wall can be opened up partially or completely so that the groove underneath can be used.
