Magnetic Catch X
Housing base, die-cast zinc Housing cap, PA-GF, grey Flat head screw DIN 921-M5x6, St, bright zinc-plated as a holding plate Button-Head Screw ISO 7380-M5x16, St, stainless
Scope of Delivery
Housing base, die-cast zinc Housing cap, PA-GF, grey Flat head screw DIN 921-M5x6, St, bright zinc-plated as a holding plate Button-Head Screw ISO 7380-M5x16, St, stainless
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 38 g |
| Force | F = 20 N |
| Delivery unit | 1 set |

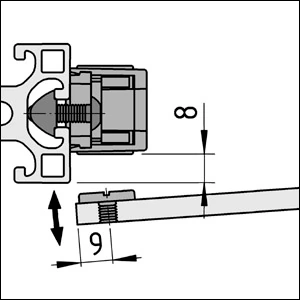

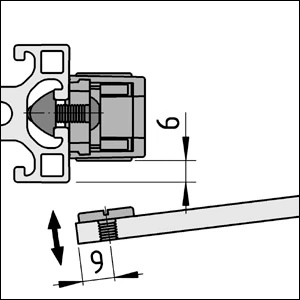

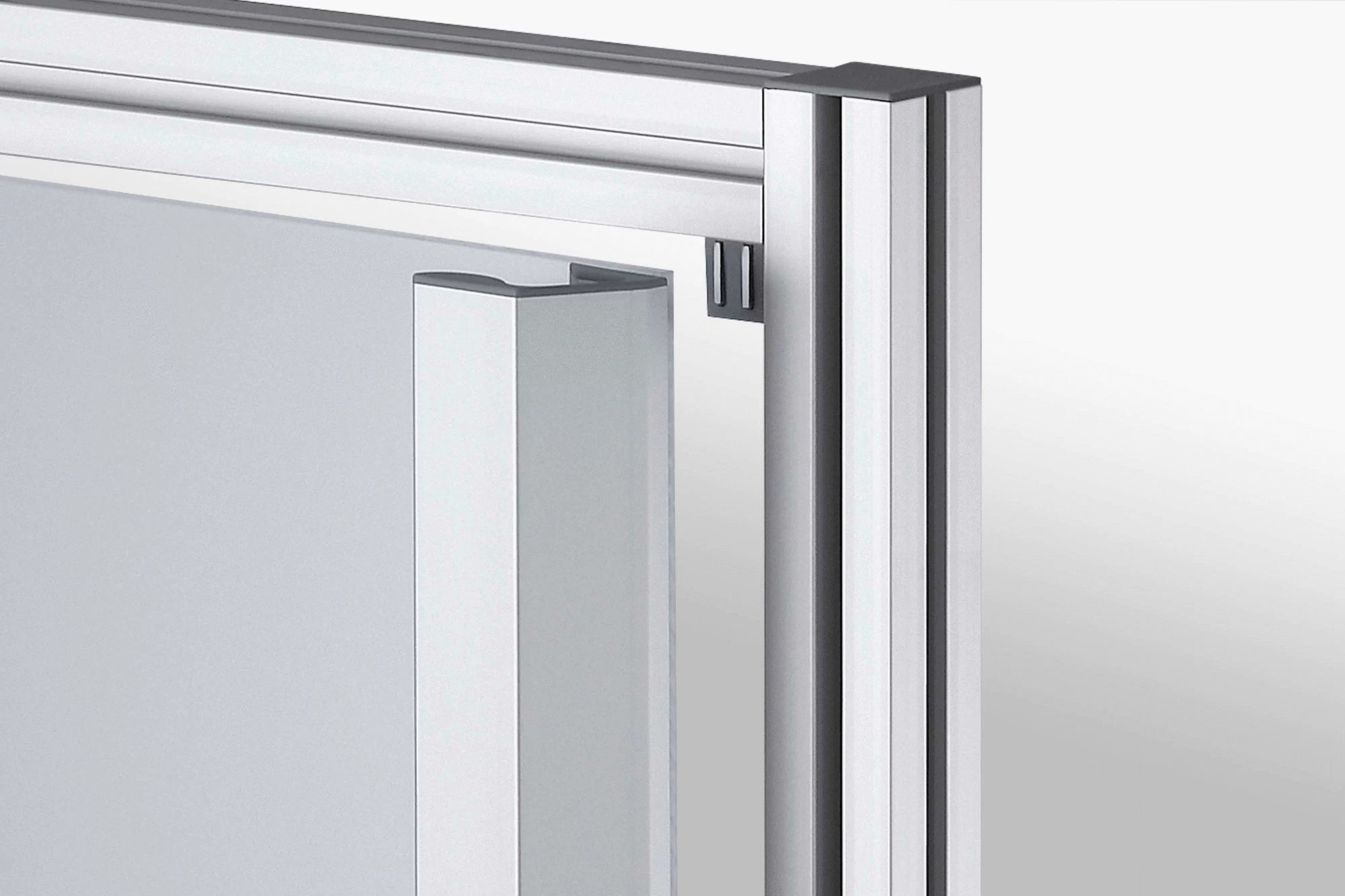

Magnetic Catch X is used primarily to keep swing and sliding doors shut. Integrated positioning aids provide two different rebate depths. By breaking off the positioning aids, it is also possible to adjust Magnetic Catch X to any rebate depth over the range 0 - 10 mm. There is a slot in the housing base for this purpose.
In order to screw Magnetic Catch X onto the groove of a Profile 8, the integrated screw M5x16 can be turned through the bore in the housing (3 A/F). If the Magnetic Catch is to be fastened using another screw, the plastic housing cap must be removed to replace the screw. Holding force F = 20 N
