| Magnetic Catch 8, black | CADPDFRFQ |
Preview
Magnetic Catch 8, black
Basic unit, PA-GF Flat head screw DIN 921-M5x6, St, bright zinc-plated as holding plate
Scope of Delivery
Basic unit, PA-GF Flat head screw DIN 921-M5x6, St, bright zinc-plated as holding plate
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 34 g |
| Force | F = 45 N |
| Delivery unit | 1 set |
| Colour | black |

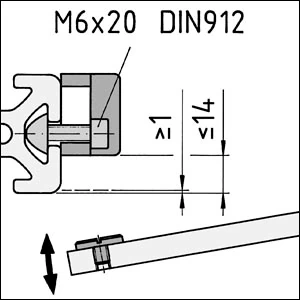

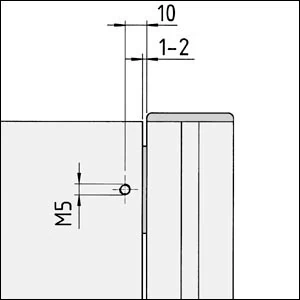

Magnetic Catches are particularly suitable for latching swing and sliding doors. Turning the Magnetic Catch through 180° enables users to choose between two different holding forces (this does not apply to Magnetic Catch X). The Magnetic Catches can be adjusted to the thickness of the panel element using the mounting slots. In conjunction with Catch Mounting Brackets, they can also be used on doors with profile frames.
F 1 = 30 N F 2 = 45 N
