| Magnetic Door Stop for Clamp Profile 8 32×18 | CADPDFRFQ |
Preview
Magnetic Door Stop for Clamp Profile 8 32×18
Casing, PA-GF, grey Countersunk Screw DIN 7991-M4x12, St, bright zinc-plated Washer ISO 7093-1 – 5 – 200 HV, bright zinc-plated T-Slot Nut V 8 St M4, bright zinc-plated Flat head screw DIN 921-M4x5, St, bright zinc-plated as holding plate
Scope of Delivery
Casing, PA-GF, grey Countersunk Screw DIN 7991-M4x12, St, bright zinc-plated Washer ISO 7093-1 - 5 - 200 HV, bright zinc-plated T-Slot Nut V 8 St M4, bright zinc-plated Flat head screw DIN 921-M4x5, St, bright zinc-plated as holding plate
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 31 g |
| Delivery unit | 1 set |
| cleanroom suitability | Yes |

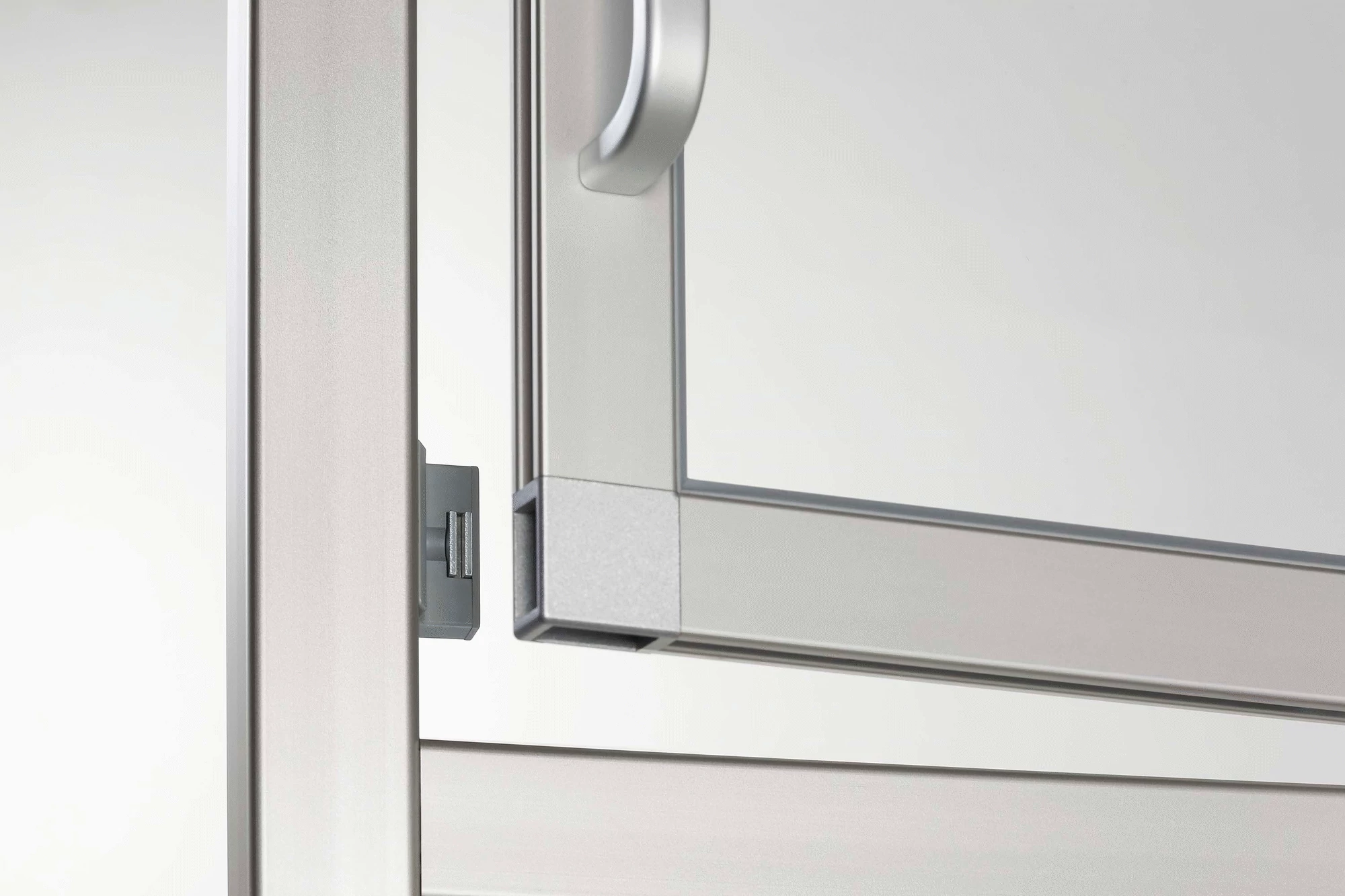

Making sure doors keep themselves shut: The Magnetic Door Stop for Clamp Profile 8 32x18 is the ideal complement to Clamp Profile 8 32x18 (0.0.373.67), which can be used to build windows and doors with especially narrow frames. Clamping springs in a special groove on the Clamp Profile hold the panel elements steady and firmly in place. The Magnetic Door Stop fits harmoniously into the frame and holds doors closed. The closing force is 40 N.
