| Adjustable Stand Foot 8 | CADPDFRFQ |
Preview

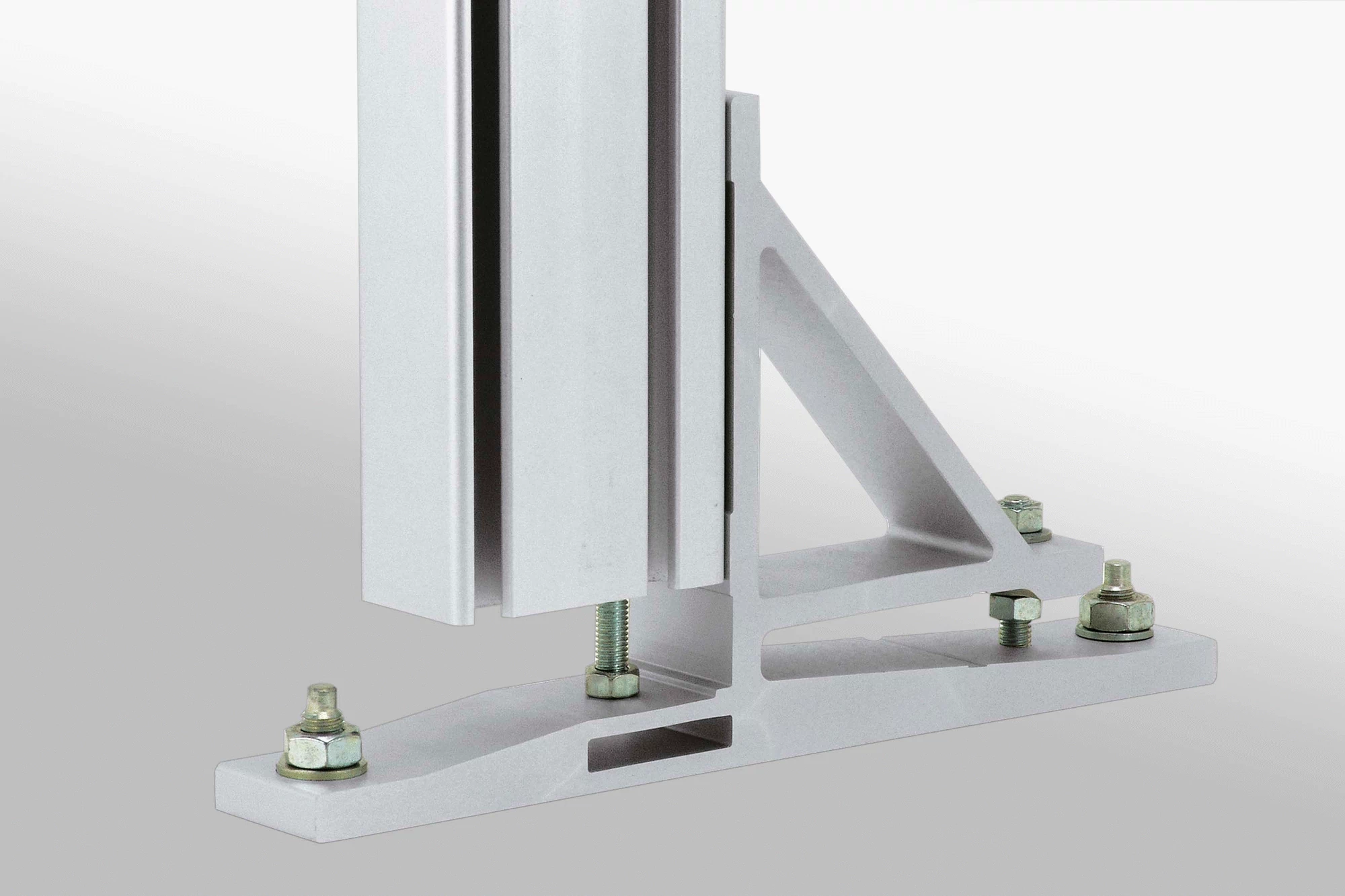

Adjustable Stand Foot 8
Adjustable Stand Foot, Al, anodized, natural 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M8x20, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated 4 Washers ISO 7089 – 8 – 200 HV, bright zinc-plated Button-Head Screw ISO 7380-M8x45, St, bright zinc-plated
Scope of Delivery
Adjustable Stand Foot, Al, anodized, natural 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M8x20, St, bright zinc-plated 2 Hexagon Nuts DIN 934-M8, St, bright zinc-plated 4 Washers ISO 7089 - 8 - 200 HV, bright zinc-plated Button-Head Screw ISO 7380-M8x45, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 795 g |
| Delivery unit | 1 set |
Adjustable Stand Foot 8 can be universally used to provide the Stand Profiles of partitions, tables and rack systems with a stable connection to the floor. Various adjustment options mean that the Adjustable Stand Foot can be adapted to the properties of the floor (height, flatness). The Stand Profile can be tilted as necessary using the hexagon nuts on a threaded bolt (±3°). The Stand Profile is adjusted up and down by moving it along the profile groove. Lateral alignment on the floor is facilitated by the large diameters of the holes for the Floor Fastening Sets. The through holes for securing to the floor can be accessed when the Adjustable Stand Foot has already been fitted, so that the anchoring holes can be drilled subsequently.
Adjustable Stand Foot 8 can be used to subsequently align every Stand Profile.
