| Cap R40/45° M45 – XMS, grey similar to RAL 7042 | CADPDFRFQ |
Preview
Cap R40/45° M45 – XMS, grey similar to RAL 7042
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 7 g |
| Delivery unit | 1 pce. |
| Material | PA-GB |
| Colour | grey similar to RAL 7042 |

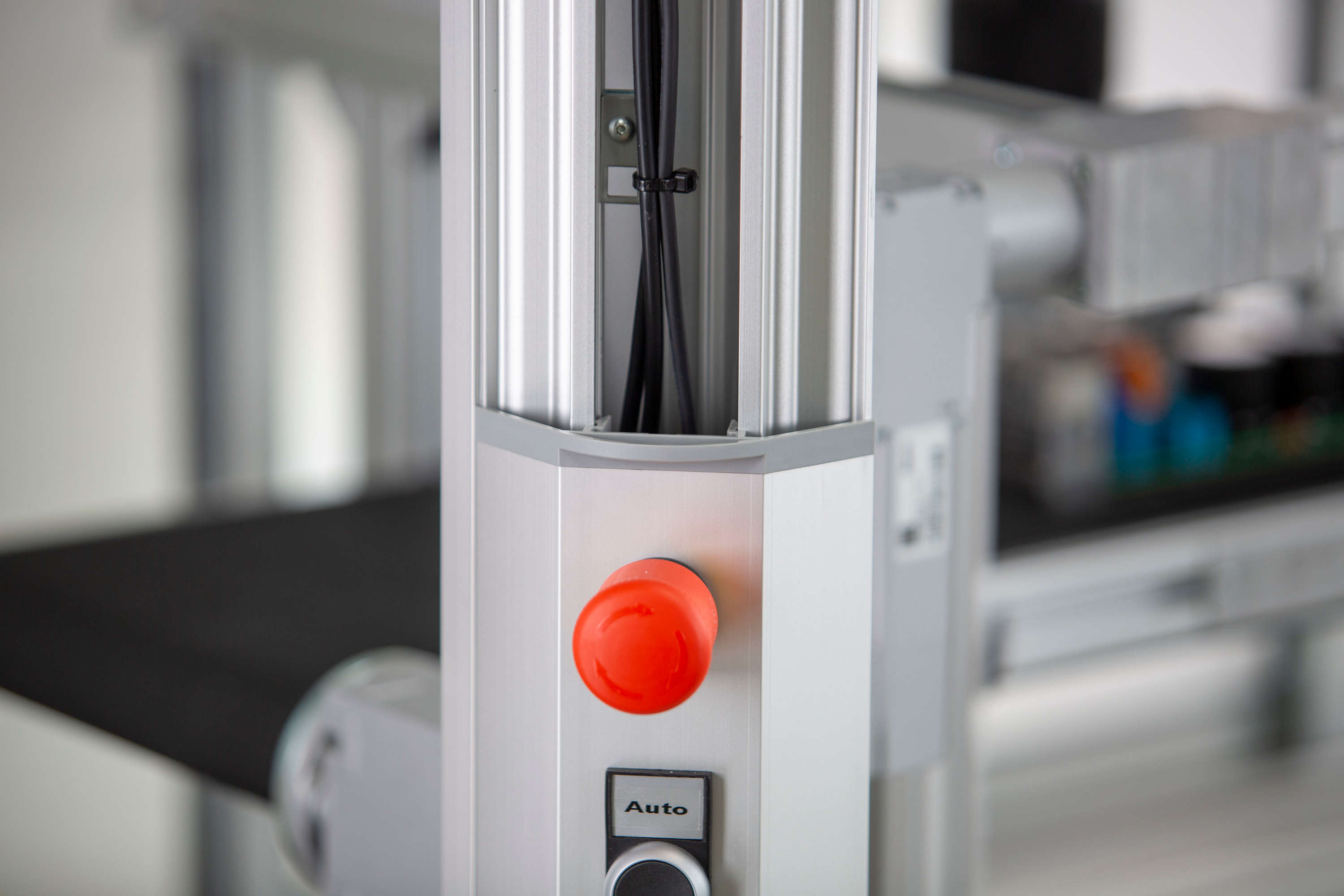

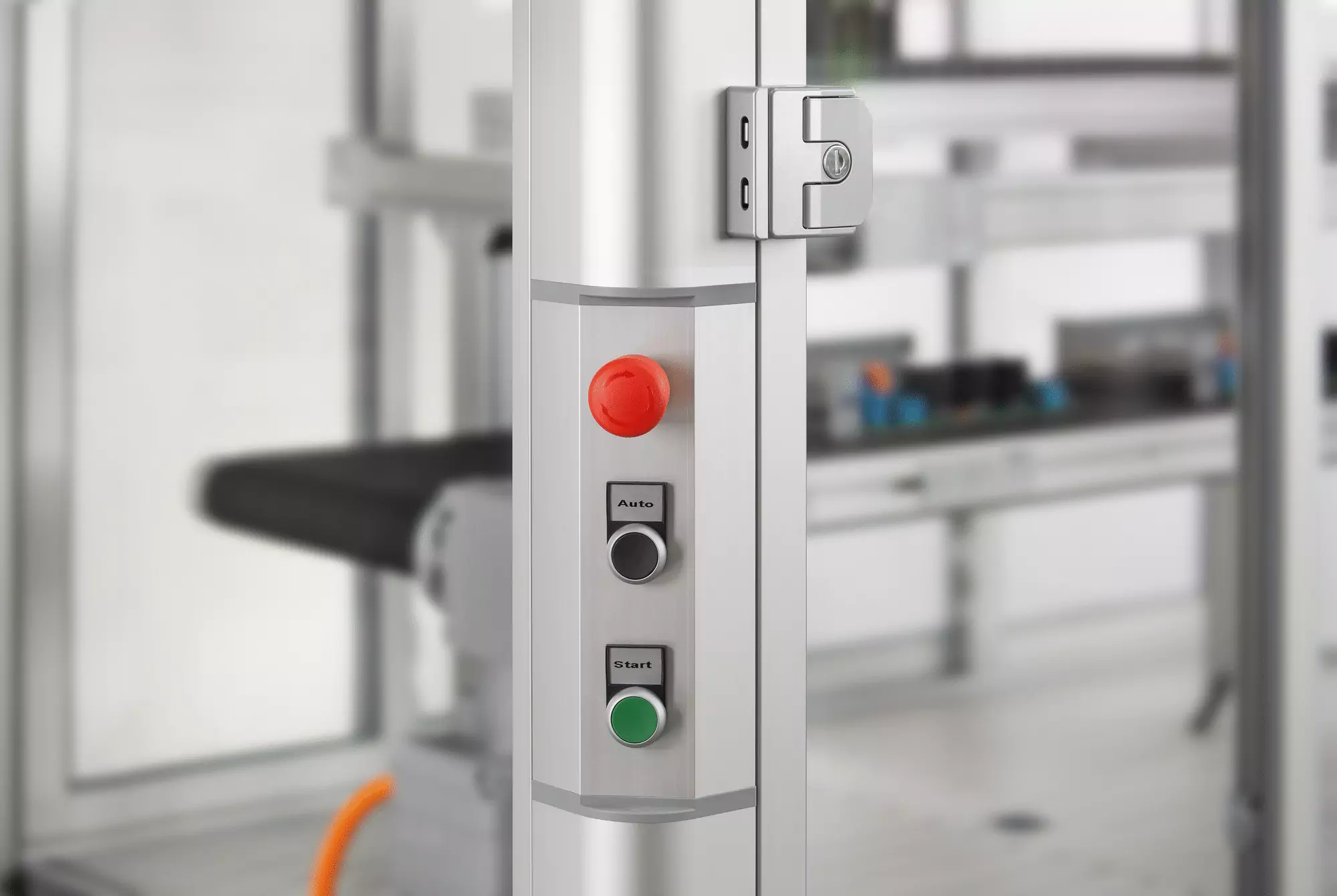

Cap R40/45° M45 - XMS creates a smooth transition between Cover Profiles M45 XMS with a rounded R40 contour (0.0.695.52) and Cover Profiles M45 XMS with a 45°-angle contour (0.0.695.54) or Face Plate 80x80-45° M45 1 Gang - XMS (0.0.703.14). The slender cap bridges the gap between the two different contours.
