FFU StarterKit 230V

1 Bedienpanel mit Steuerleitung 4G0,5mm², 5m und Adapter Terminal RJ45 1 Anschlussleitung Buchse-Schukostecker mit Erdung 5m 2 Nutensteine V 8 St M4, verzinkt 2 Halbrundschrauben ISO 7380-M4x16 2 Scheiben ISO 7092 – 4 – 200 HV, verzinkt Anwendungs- und Montagehinweise

Varenr: 0.0.715.83 Kategori: Tag:
Set CAD-format
FFU StarterKit 230VCADPDFRFQ

Preview

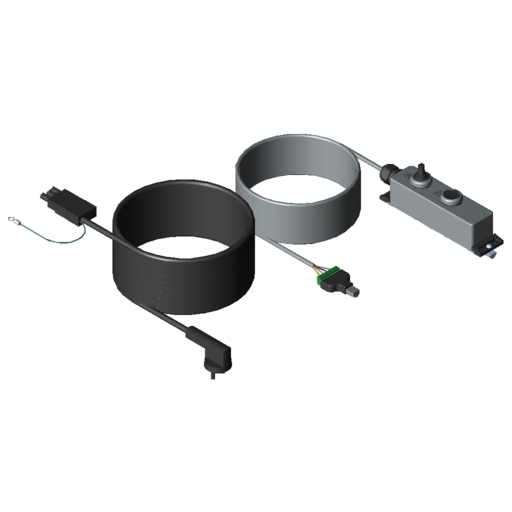

Scope of Delivery

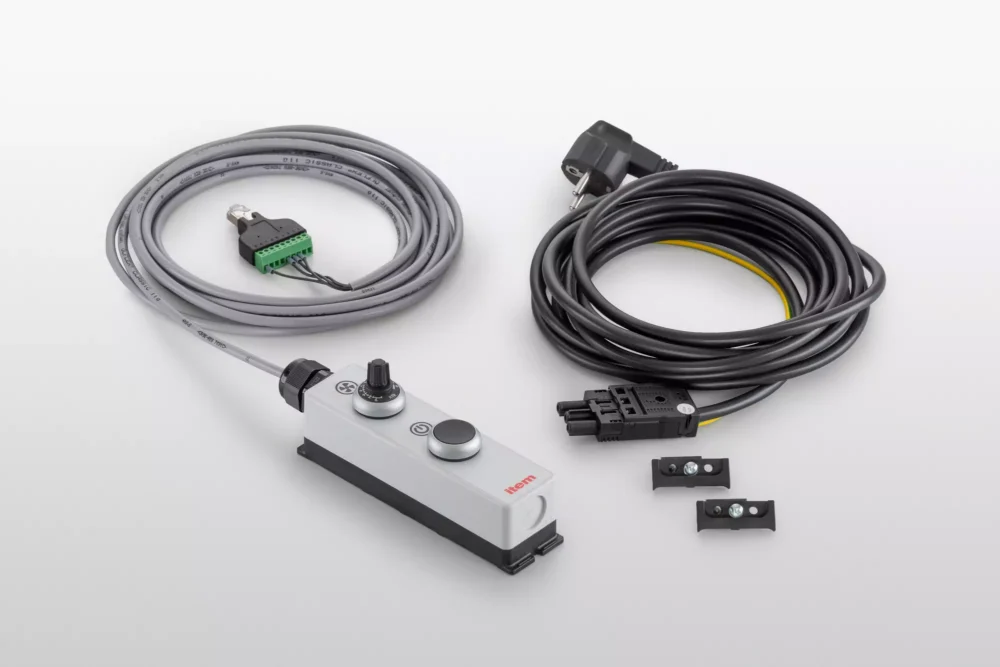

1 operating unit with control cable, 4G0.5mm², 5m and RJ45 terminal adapter 1 Connecting Cable, Socket / Earthed Plug with earthing lead, 5m (German domestic standard connector supplied) 2 T-Slot Nuts V 8 St M4, bright zinc-plated 2 Button-Head Screws ISO 7380-M4x16 2 Washers ISO 7092 - 4 - 200 HV, bright zinc-plated Notes on Use and Installation

Properties

ESD-safeNo
Weightm = 1.1 kg
Delivery unit1 set
Status on deliveryPartially preassembled
cleanroom suitabilityYes

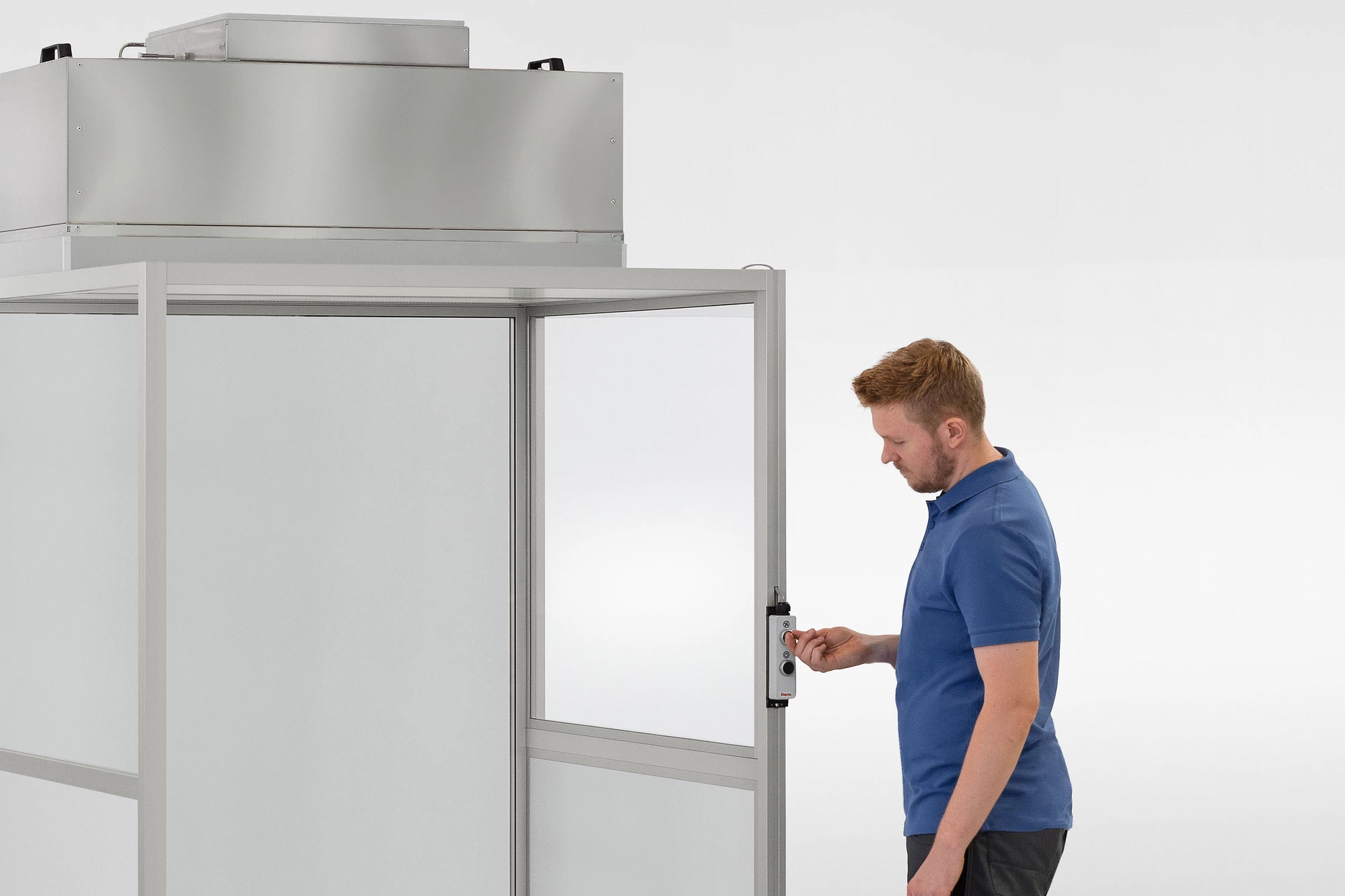

FFU StarterKit 230V includes the necessary cables and operating elements needed to commission Filter Fan Unit 1200x600 (0.0.716.42) and control it with a potentiometer. This plug-and-play solution controls the FFU directly and is easily installed, with no electrical engineering expertise required.

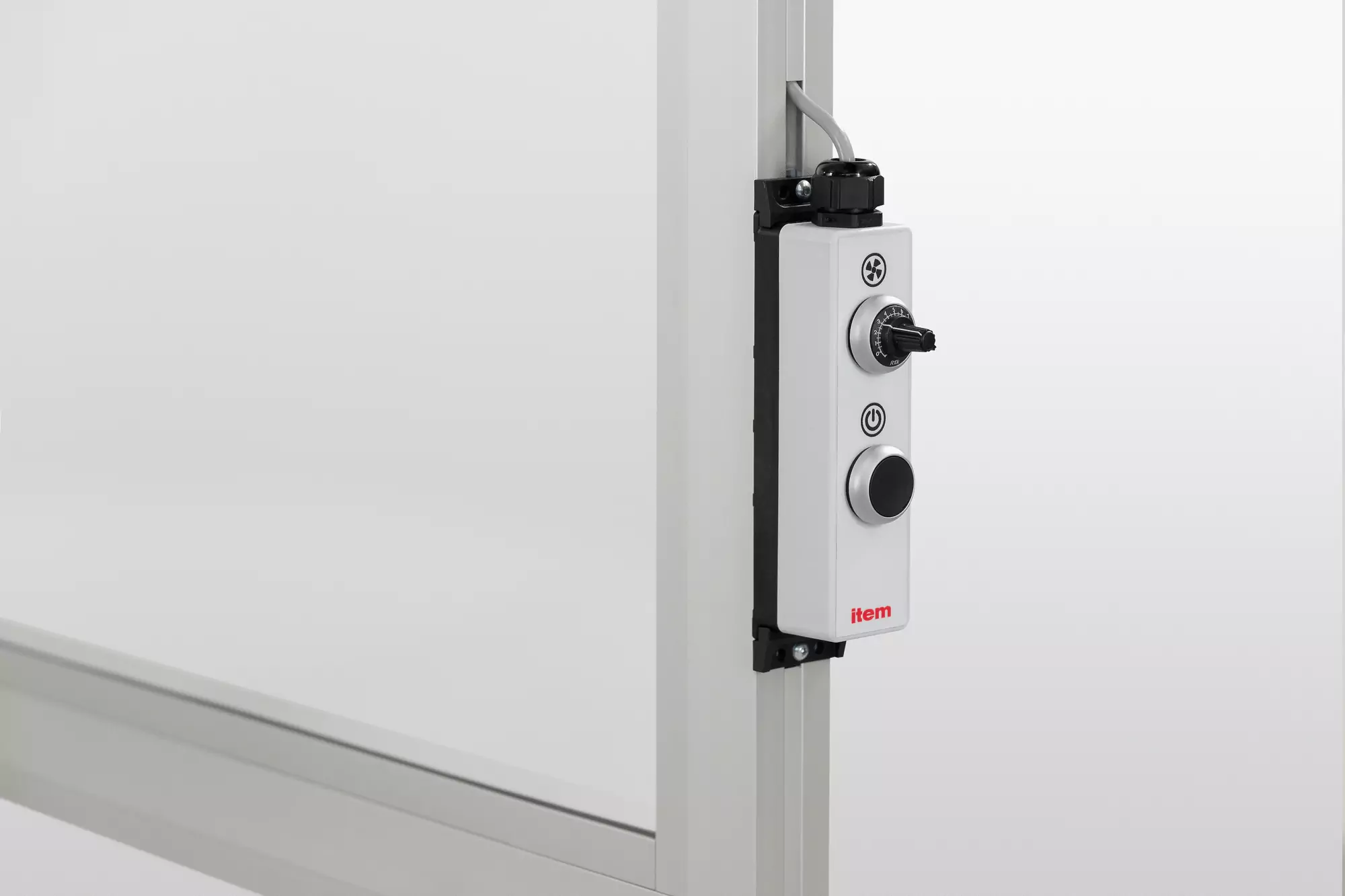

The operating unit features an ON/OFF button and a potentiometer for controlling the air flow. It can be fitted to a profile or panel element.
