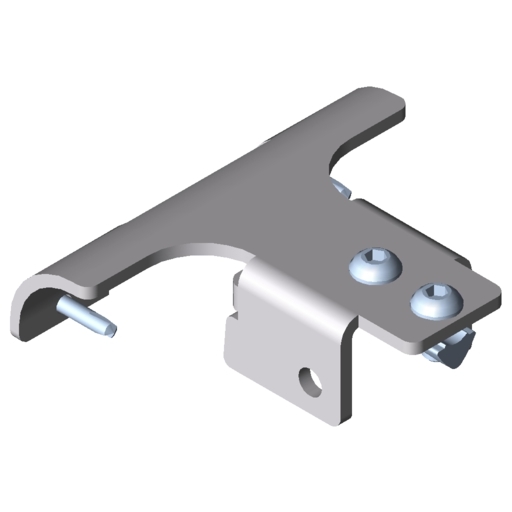

Fastening Bracket 6 30 D30
1 Fastening Bracket 6 30 D30, St, bright zinc-plated 1 T-Slot Nut V 6 St 2xM6-28, St, bright zinc-plated 2 Button-Head Screws ISO 7380 M6x12, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated
Scope of Delivery

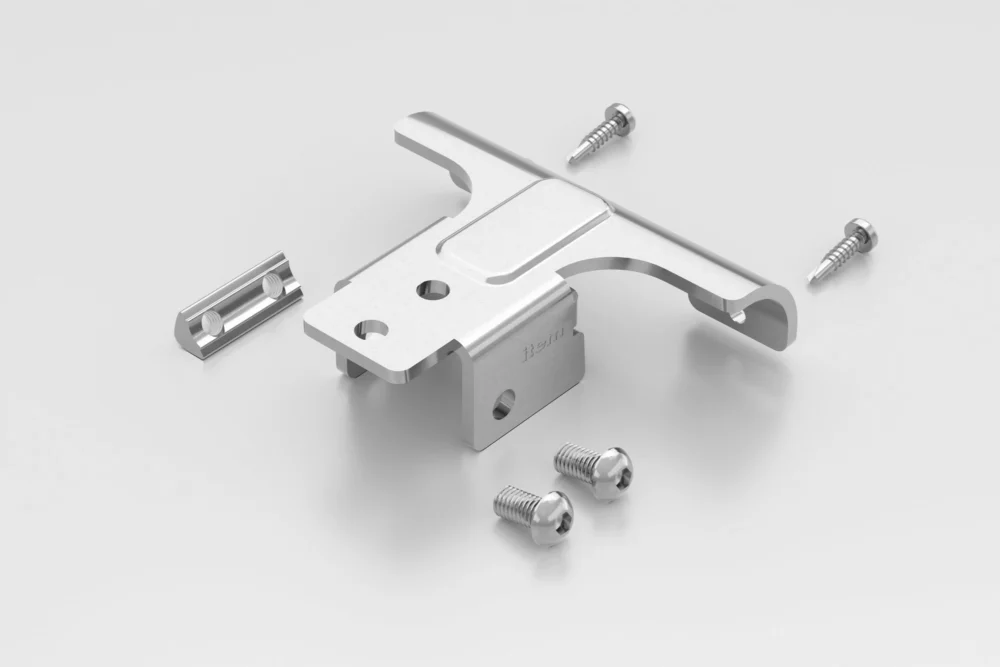

1 Fastening Bracket 6 30 D30, St, bright zinc-plated 1 T-Slot Nut V 6 St 2xM6-28, St, bright zinc-plated 2 Button-Head Screws ISO 7380 M6x12, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated
Properties
| Torque | M = 10 Nm |
|---|---|
| Line | Line D30 |
| ESD-safe | Yes |
| Weight | m = 140.5 g |
| Delivery unit | 1 set |
| Max. load-carrying capacity | F = 500 N |
Space-saving Fastening Bracket 6 30 D30 is the primary means of suspending Conveyor Rail Profile 6 30x30-80 (0.0.712.90) and is used at the start and end points of a conveyor line based on the item Suspended Conveyor System. Thanks to its design, the angle of incline on the Conveyor Rail Profile can be steplessly adjusted.

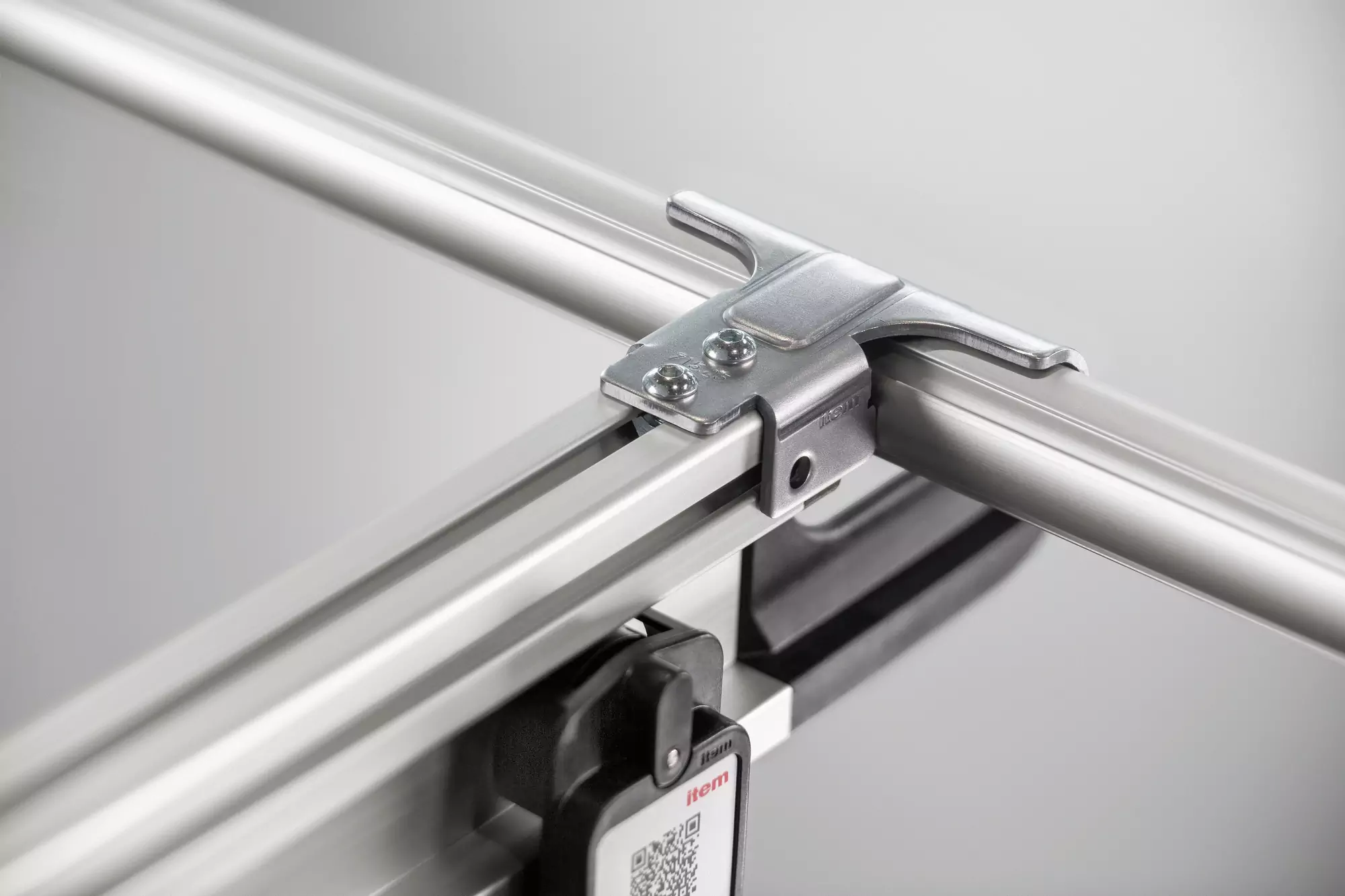

Fastening Bracket 6 30 D30 is fastened to the groove that runs along the top of Conveyor Rail Profile 6 30x30-80. Thanks to the undercut, the conveyor line is immediately held in place when suspended in the frame. Once its position has been fine-tuned, the Fastening Bracket can be secured in place on the Profile Tube using the enclosed self-tapping screws.

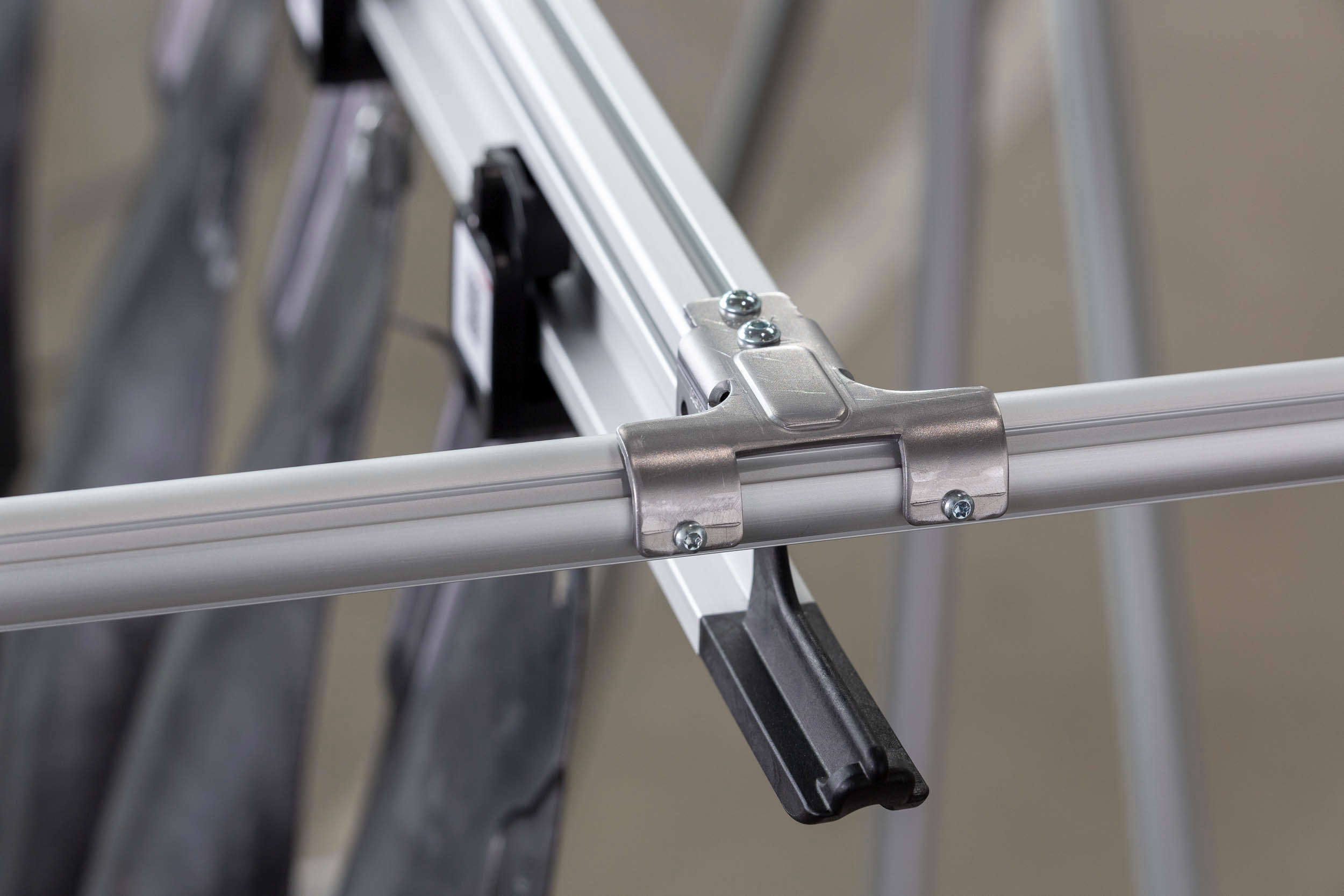

Fastening Bracket 6 30 D30 T1 is fastened to a (Profile) Tube D30 and the groove that runs along the top of Conveyor Rail Profile 6 30x30-80. Fastening Bracket 6 30 D30 (0.0.715.27), which is flatter, serves as the primary suspension point for the Conveyor Rail Profile and is fitted at the start and end points of the conveyor line.
