| Pivot Arm 8 370 light | CADPDFRFQ |
Preview
Pivot Arm 8 370 light
Profile 8 40×40 3N light End Swivel Joint Standard Swivel Joint Connecting cover, PA, grey 2 Connecting Plates, Al, natural Button-Head Screw M8x22, St, bright zinc-plated Notes on Use and Installation F max. = 120 N
Scope of Delivery
1 Profile 8 40x40 3N light 1 End Swivel Joint 1 Standard Swivel Joint 1 Connecting cover, PA, grey 2 Connecting Plates, Al, natural 1 Button-Head Screw M8x22, St, bright zinc-plated Notes on Use and Installation
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 1.4 kg |
| Force max | Fmax. = 120 N |
| Delivery unit | 1 set |
| Material | Al, anodized |

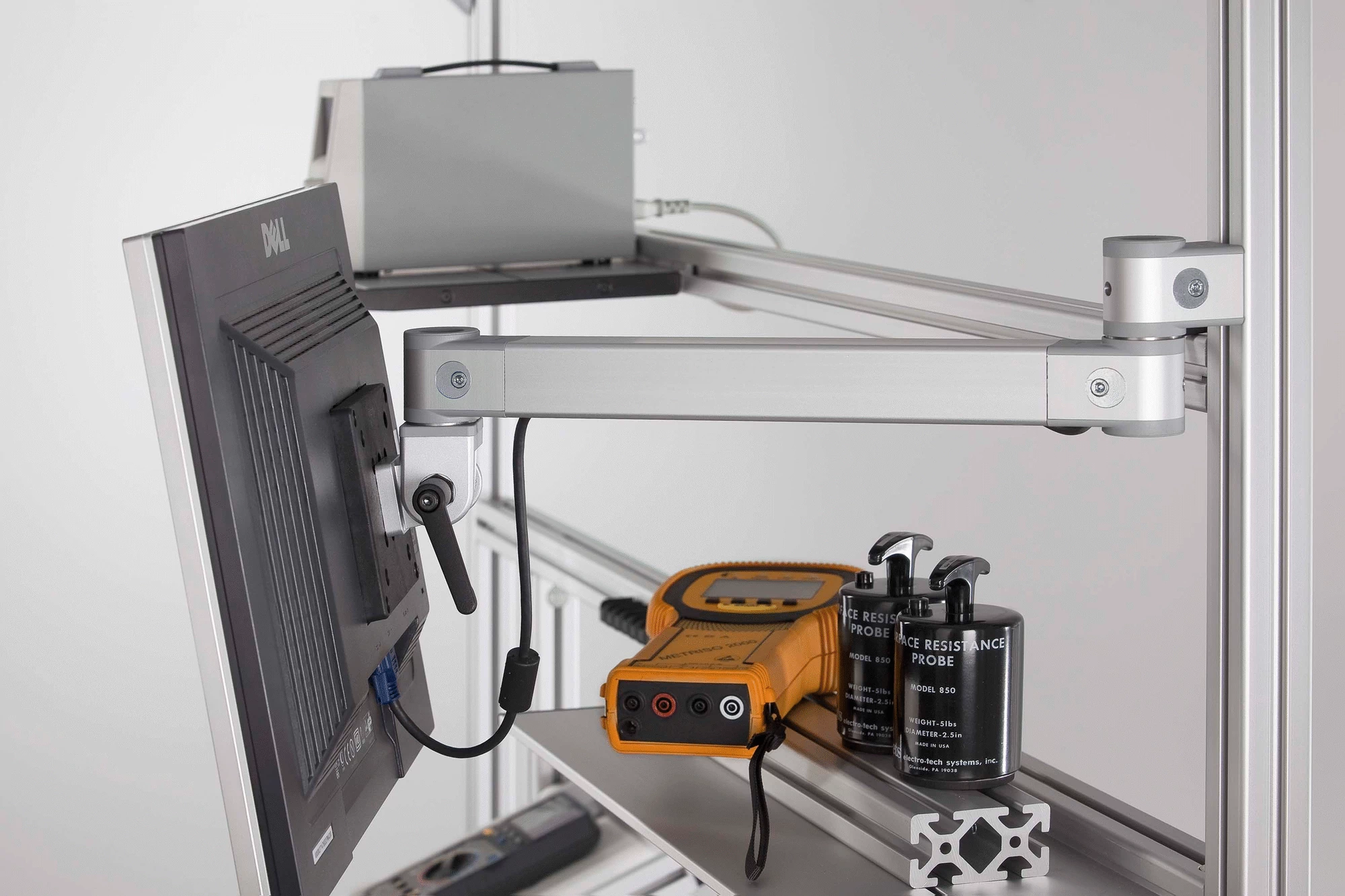

Our lightweight option for improved ergonomics – the item Pivot Arm 8 370. This stable Pivot Arm can be fitted to an Upright on any of the new item work benches easily. The braking torque can be individually adjusted at each joint, enabling you to tailor the manoeuvrability of the Pivot Arm to your needs. The End Swivel Joint can be rotated 360°. The Pivot Arm can reach approximately 370 mm. It can accommodate a maximum (vertical) load of 120 N.
The connection can be made with either a horizontal or vertical profile groove. It can also be connected to the end face of a profile. All the joints can be rotated 360° and allow the adjustment of frictional moment.
