| Double Pivot Arm 8 695 | CADPDFRFQ |
Preview
Double Pivot Arm 8 695
Profiles 8 40×40 3N light End Swivel Joint Standard Swivel Joint Double Swivel Joint Connecting cover, PA, grey 3 Connecting Plates, Al, natural Button-Head Screw M8x22, St, bright zinc-plated Notes on Use and Installation F max. = 80 N
Scope of Delivery
1 Profiles 8 40x40 3N light 1 End Swivel Joint 1 Standard Swivel Joint 1 Double Swivel Joint 1 Connecting cover, PA, grey 3 Connecting Plates, Al, natural 1 Button-Head Screw M8x22, St, bright zinc-plated Notes on Use and Installation
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 2.7 kg |
| Force max | Fmax. = 80 N |
| Delivery unit | 1 set |
| Material | Al, anodized |

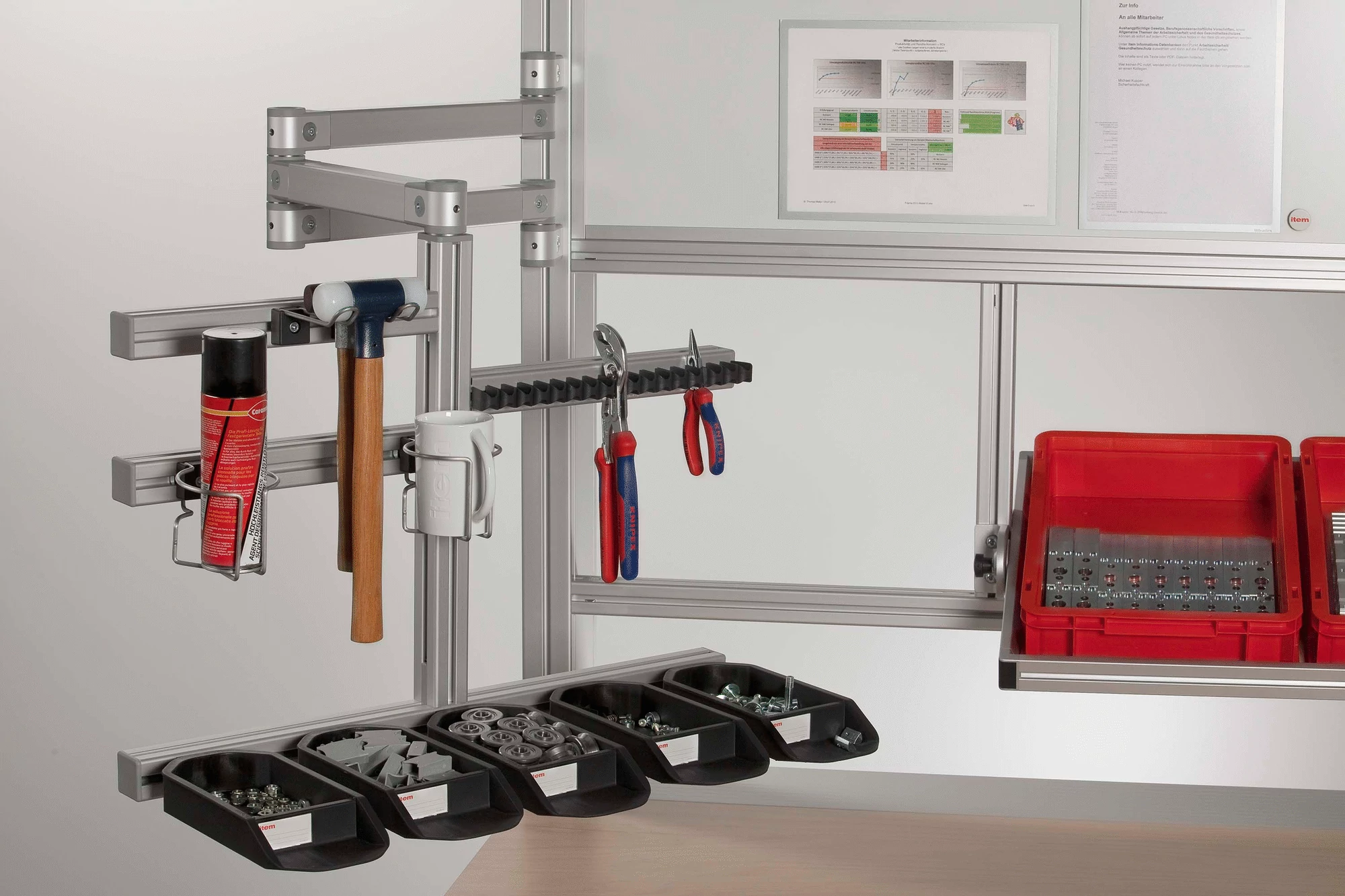

The Double Pivot Arm 8 695 from item – for double the reach and maximum flexibility! Two arms are connected via a Standard Swivel Joint so that users can move the arm closer to them or further away. The stable End Swivel Joint is designed for connection to Line 8 profiles. The Double Pivot Arm can reach approximately 695 mm and carry a maximum vertical load of 80 N. Double Pivot Arm 8 695 should only be fitted to vertical profile grooves.
The connection can be made with either a horizontal or vertical profile groove. It can also be connected to the end face of a profile. All the joints can be rotated 360° and allow the adjustment of frictional moment.
