Dette produkt har udvidet CAD-support, kontakt venligst Aluflex med målspecifikationer og ønsket CAD-format på produktet, så sender Aluflex dig den ønskede CAD-fil.
Conveyor 40 Flat Belt – End Drive
Reliable conveyor designed for various applications, available in widths of 40mm, 80mm, 120mm, 160mm, 200mm, 250mm, 300mm, 400mm, 500mm with an end drive system.

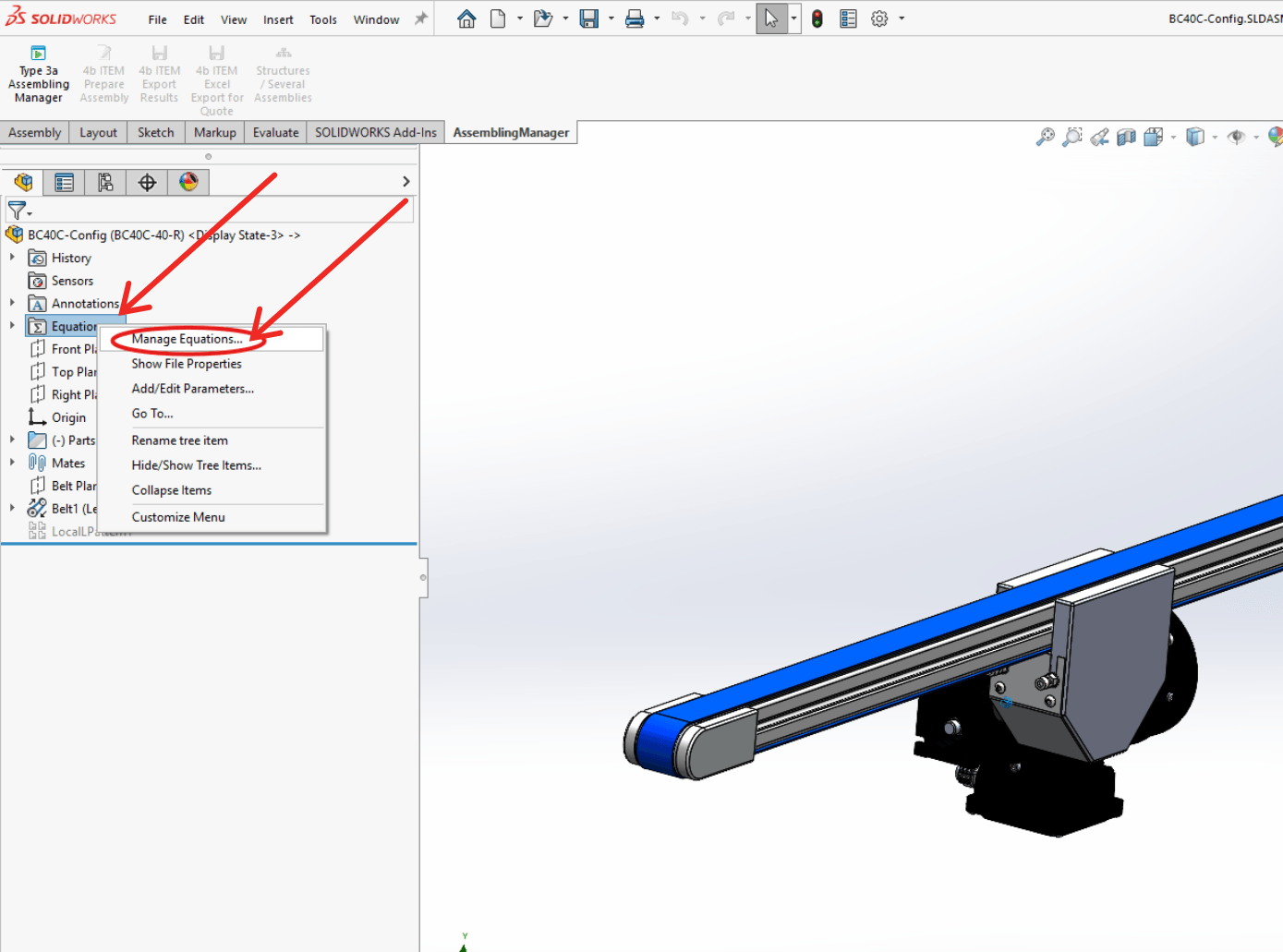

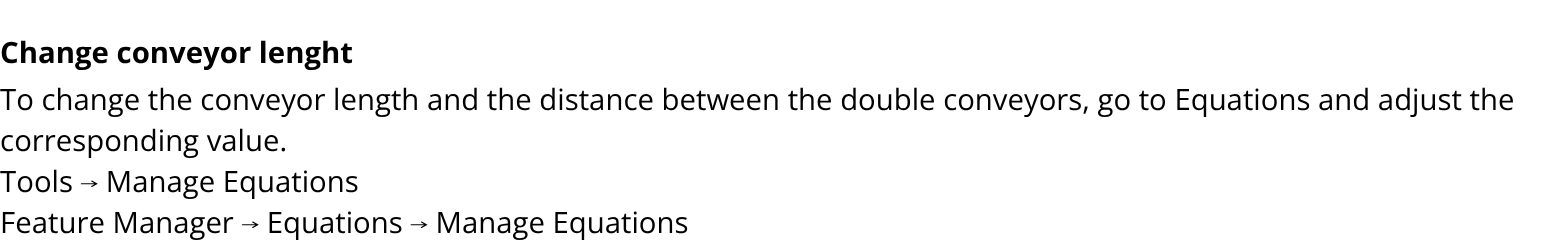

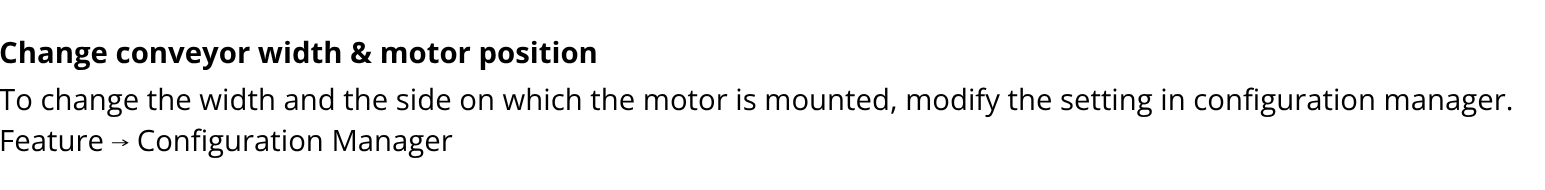

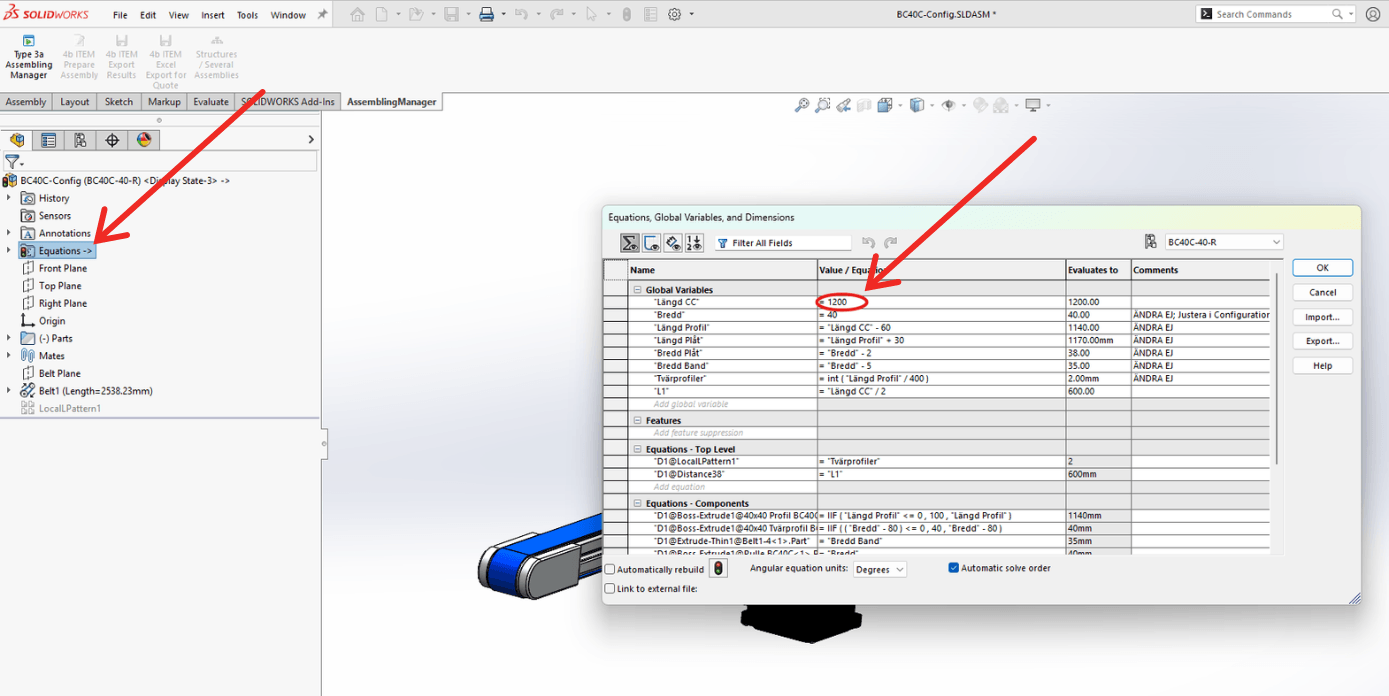

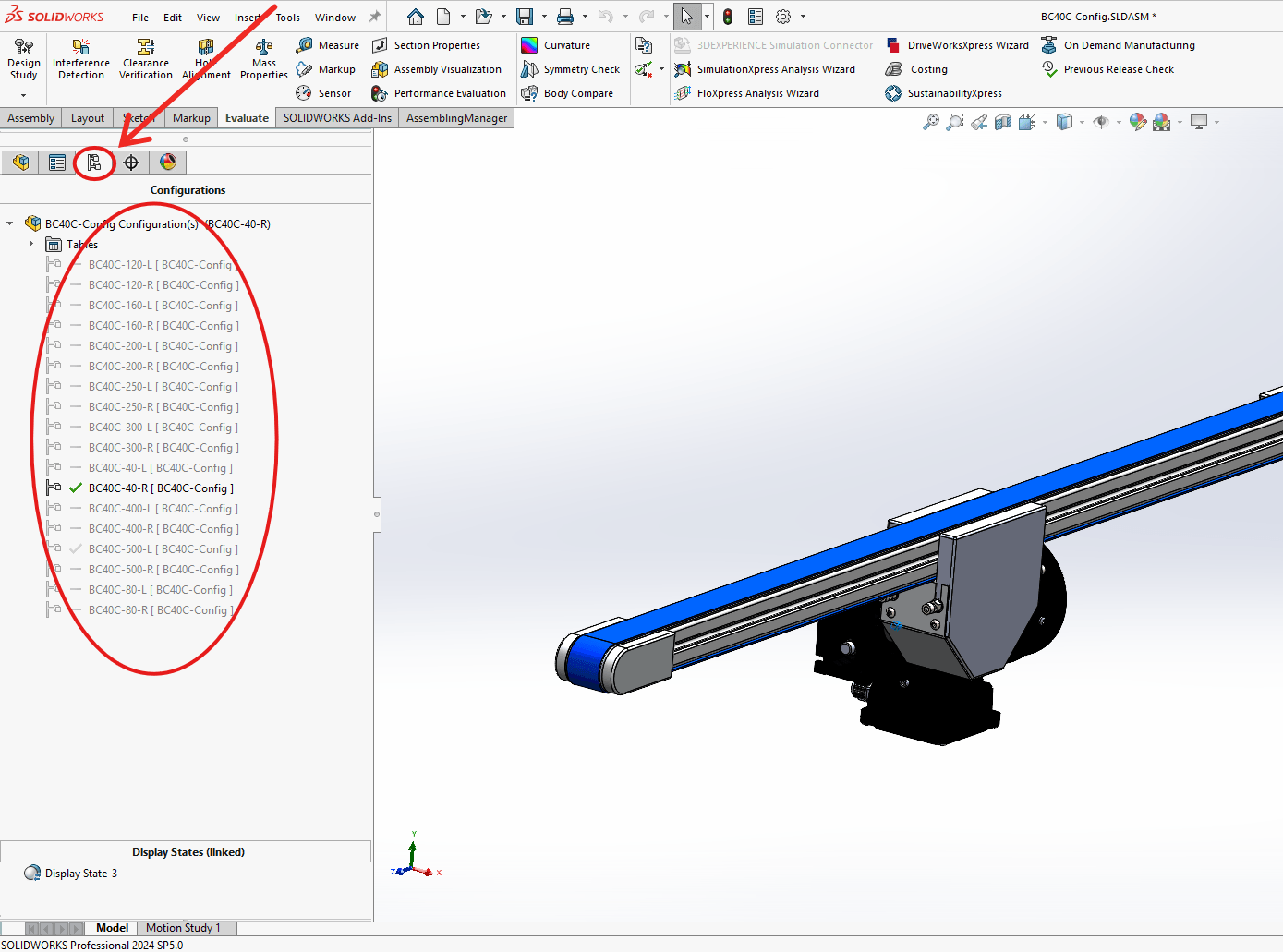

For CAD-files other than SolidWorks, please contact Aluflex.
| Cad SolidWorks | |||
| Artikelnummer | Lenght min/max | Width min/max | Download SolidWorks CAD |
| BC40E | 400 - 6000 m | 40, 80, 120, 160, 200, 250, 300, 400, 500 mm |  |
| Conveyor Load Data | |||||
| Conveyor | Conveyor System | Motor Position | Belt Speed | Max total Load (Non-accumulating) | Max Total Load (Accumulating) |
| BC40E-40 | Flat belt conveyor 40-40 | End drive | 2-37 m/min | 15 kg | 6 kg |
| BC40E-80 | Flat belt conveyor 40-80 | End drive | 2-37 m/min | 25 kg | 10 kg |
| BC40E-120 | Flat belt conveyor 40-120 | End drive | 2-37 m/min | 40 kg | 20 kg |
| BC40E-160 | Flat belt conveyor 40-160 | End drive | 2-37 m/min | 50 kg | 25 kg |
| BC40E-200 | Flat belt conveyor 40-200 | End drive | 2-37 m/min | 65 kg | 30 kg |
| BC40E-250 | Flat belt conveyor 40-250 | End drive | 2-37 m/min | 75 kg | 35 kg |
| BC40E-300 | Flat belt conveyor 40-300 | End drive | 2-37 m/min | 100 kg | 45 kg |
| BC40E-400 | Flat belt conveyor 40-400 | End drive | 2-37 m/min | 100 kg | 50 kg |
| BC40E-500 | Flat belt conveyor 40-500 | End drive | 2-37 m/min | 100 kg | 55 kg |
| General Technical Data | |
| Conveyor width (A) | 40, 80, 120, 160, 200, 250, 300, 400, 500 |
| Belt width | A - 10 |
| Lenght (L) | 400 - 6000 mm |
| Belastning | 0-100 kg |
| Hastighed | 0-37 m/min |
| Pulley Diameter | 44 mm |
| Belt Type | Wide assortment available upon request |
| Plate under belt | Aluzink std/ stainless steel |
| Motor Technical Data | |
| Motor | Asynchronous 230/400V, 50Hz |
| Cable | Delivered without motor cable |
| Protection rate motor | IP69K |
| Omgivelsestemperatur | - 20 to +40 ° C |
| Gear speed | 2,3/3,1/3,7/4,6/6,2/7,4/9,2/12/18,5/24/37 m/min |
We offer knife edge solutions for belt conveyors in widths of 40, 80, 120, 160, 200, 250, 300, 400 and 500 mm. For central driven conveyors, knife edge solutions can also be provided at both ends. If you require knife edge solutions for conveyors wider than 500 mm, please contact us at Aluflex.
