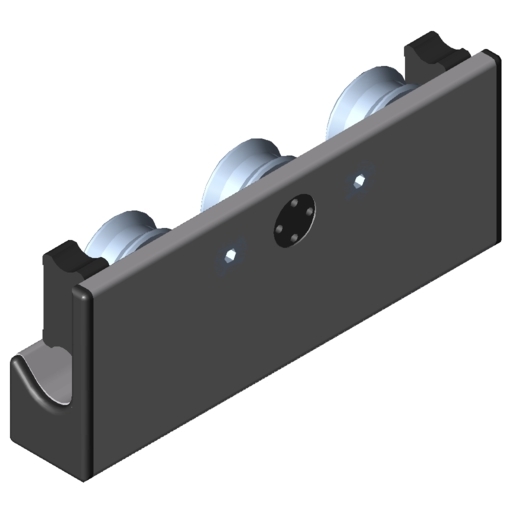

C-Rail, Bearing Unit 8 D14 3R

C-Rail, Slide Profile segment, Al, anodized, natural C-Rail, Slide Profile Cap Set 8 C-Rail, Bearing Set 8 D14 3R

Varenr: 0.0.462.30 Kategorier: , Tag:
Set CAD-format
C-Rail, Bearing Unit 8 D14 3RCADPDFRFQ

Preview

Scope of Delivery

1 C-Rail, Slide Profile segment, Al, anodized, natural 1 C-Rail, Slide Profile Cap Set 8 1 C-Rail, Bearing Set 8 D14 3R

Properties

line 8line 8
ESD-safeNo
Weightm = 1.1 kg
Force maxFmax. = 1500 N
Delivery unit1 pce.
Completely machined and pre-assembled Bearing Units for simple construction of C-Rail Systems 5, 6 and 8.

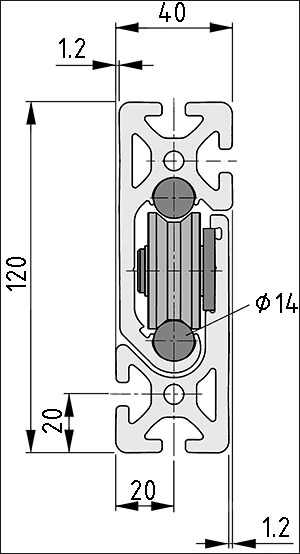

F 1 = 1500 N F 2 = 750 N
