| Set CAD-format | ||
|---|---|---|
| C-Rail, Bearing Unit 5 D6 3R | CADPDFRFQ |
Preview

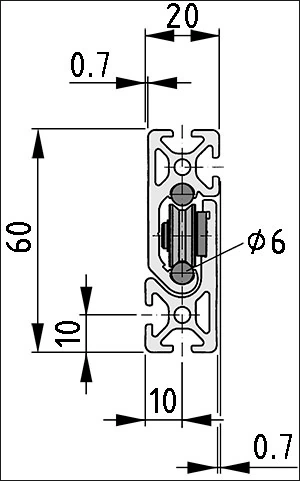

C-Rail, Bearing Unit 5 D6 3R
C-Rail, Slide Profile segment, Al, anodized, natural C-Rail, Slide Profile Cap Set 5 C-Rail, Bearing Set 5 D6 3R
Scope of Delivery
1 C-Rail, Slide Profile segment, Al, anodized, natural 1 C-Rail, Slide Profile Cap Set 5 1 C-Rail, Bearing Set 5 D6 3R
Properties
| line 5 | line 5 |
|---|---|
| ESD-safe | No |
| Weight | m = 117 g |
| Force max | Fmax. = 250 N |
| Delivery unit | 1 pce. |
Completely machined and pre-assembled Bearing Units for simple construction of C-Rail Systems 5, 6 and 8.
F 1 = 250 N F 2 = 125 N
